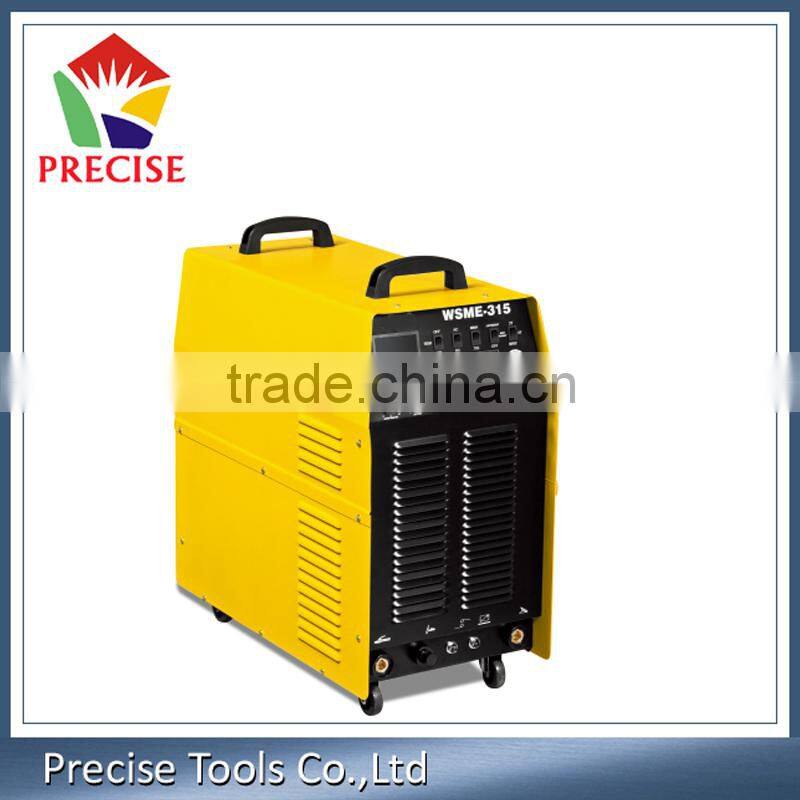

AC DC Inverter MMA TIG Welding Machine , TIG/MMA Pulse Welder
--------------------------------------------Features---------------------------------------------------------
*Multi-function:AC/DC MMA,AC/DC pulse TIG
*Quality square wave power supply,short current zero-crossing time,stable arc.
*Super cleaning ability of oxide film,continuously adjustable cleaning width,bright and beautiful weld seam. Especialy adapted to weld aluminum,magnesium and its alloy materials.
*Easy to start arc,stable welding current,quick dynamic response,focused arc,AC welding without bias and beautiful welding forming.
*Comprehensive protection functions of over-current,over-heat,over-voltage and under-voltage,Safe and reliable.
*Panel with remote control interface,optional to be quipped with foot switch.
------------------------------------------Service------------------------------------------------------
• OEM sevice offered: Machine Color, Color Carton, Model or Other Stuff.
• With standard spareparts: TIG Welding Torch, Electrode Holder, Grounding Clamp, Brush and Mask.
• One Year Warranty.
• Technical Support.
----------------------------------------Main Market---------------------------------------------------
Europe, North America, South America , Southeast Asia, Middle East, Africa.
----------------------------------------Specification--------------------------------------------------
| ITEM | WSME315 |
| Power voltage(V) | 380 |
| Rated input current (A) | 20 |
| Output current range (A) | 10-315 |
| Rise time(S) | 0-10 |
| Delay times(S) | 1-10 |
| Fall times(S) | 0-10 |
| No-load voltage (V) | 60 |
| Rated output voltage (V) | 22.6 |
| Duty cycle (%) | 60 |
| Efficiency (%) | 85 |
| Insulation class | F |
| Weight(KG) | 40 |
| Measurement(MM) | 630*410*610 |
------------------------------------------Picture---------------------------------------------------------
-------------------------------------------Accessories-----------------------------------------------------
With standard spareparts: With welding torch,earth clamp,electrode holder,mask,brush.
TIG Welding Informations for reference
In TIG welding (tungsten inert gas), the welding arc is formed between a non-consumable tungsten electrode and the base material. Argon, which is most commonly used as the shielding gas, is fed through the TIG torch to shield the electrode and molten weld pool. The current is either alternating or direct current, which can be pulsed as necessary.
DC TIG welding
The direct-current TIG welding process is suitable for welding unalloyed and low-alloy steels, stainless steels and titanium.
AC TIG welding
Alternating- current TIG, of AC TIG welding is particularly suitable for welding aluminium and aluminium alloys. The primary area of application for AC TIG welding is used with materials, but the process is also used frequently in repairing welding for thicker aluminium pieces.
About us.
Precise tools is an active and innovative company with a highly motivated team that tries to achieve its aims in loyalty,quality and good service to all our customers.
We professional on hand tools for household use,hand tools for professional,auto tools for car,garden tools,power tools for professional and DIY use. We both offer OEM & ODM service.
Any ideas contact us,we will bring it to reality.
