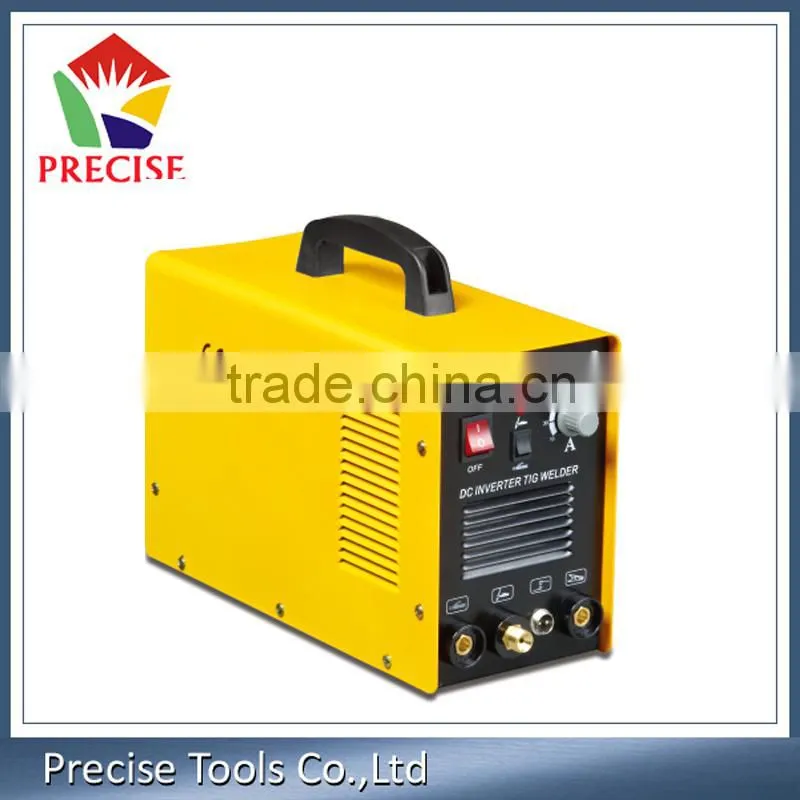

High Frequency Start MMA and Pulse TIG DC Inverter Welding Machine(TIG-M series)
--------------------------------------------Features---------------------------------------------------------
• Advanced MOSFET inverter technology, advanced electrical circuit design and energy saving.
• Stable and reliable welding current.
• Automatic compensation for power voltage fluctuation.
• Multi-function: TIG, MMA, Plused TIG.
• Easy to start arc, stable welding current, low welding noise and little spatter, good and smooth welding appearance.
• Pulse function, specially for welding thin metal plates.
------------------------------------------Service------------------------------------------------------
• OEM sevice offered: Machine Color, Color Carton, Model or Other Stuff.
• With standard spareparts: TIG Welding Torch, Electrode Holder, Grounding Clamp, Brush and Mask.
• One Year Warranty.
• Technical Support.
----------------------------------------Main Market---------------------------------------------------
Europe, North America, South America , Southeast Asia, Middle East, Africa.
----------------------------------------Specification--------------------------------------------------
| Item | TIG160M | TIG180M | TIG200M |
| Power voltage(V) | 230 | 230 | 230 |
| Frequency(HZ) | 50/60 | 50/60 | 50/60 |
| Rated input current(A) | 14.4 | 17.6 | 19.8 |
| No-load voltage(V) | 56 | 56 | 56 |
| Output current range(A) | 20-160 | 20-180 | 20-200 |
| Rated duty cycle(%) | 60 | 60 | 60 |
| Efficiency(%) | 85 | 85 | 85 |
| Insulation class | F | F | F |
| Protection class | IP21S | IP21S | IP21S |
| Measurement(MM) | 460*270*345 | 460*270*345 | 460*270*345 |
| Power factor | 0.9 | 0.9 | 0.9 |
| Weight(KG) | 12 | 12 | 12 |
| Usable electrode(MM) | 1.6-4.0 | 1.6-4.0 | 1.6-4.0 |
| 20' Container Load Capacity(PCS) | 653 | 653 | 653 |
| 40' Container Load Capacity(PCS) | 1306 | 1306 | 1306 |
| 40'HQ Container Load Capacity(PCS) | 1586 | 1586 | 1586 |
------------------------------------------Picture---------------------------------------------------------
-------------------------------------------Accessories-----------------------------------------------------
With standard spareparts: TIG Welding Torch, Electrode Holder , Grounding Clamp, Brush and Mask.
Optional: Plastic Box.
TIG Welding Informations for reference
In TIG welding (tungsten inert gas), the welding arc is formed between a non-consumable tungsten electrode and the base material. Argon, which is most commonly used as the shielding gas, is fed through the TIG torch to shield the electrode and molten weld pool. The current is either alternating or direct current, which can be pulsed as necessary.
DC TIG welding
The direct-current TIG welding process is suitable for welding unalloyed and low-alloy steels, stainless steels and titanium.
AC TIG welding
Alternating- current TIG, of AC TIG welding is particularly suitable for welding aluminium and aluminium alloys. The primary area of application for AC TIG welding is used with materials, but the process is also used frequently in repairing welding for thicker aluminium pieces.
About us.
Precise tools is an active and innovative company with a highly motivated team that tries to achieve its aims in loyalty,quality and good service to all our customers.
We professional on hand tools for household use,hand tools for professional,auto tools for car,garden tools,power tools for professional and DIY use. We both offer OEM & ODM service.
Any ideas contact us,we will bring it to reality.
