Specifications
low noise,low particle emitting rate ,longer service life ,superior lubrication ,easy installation and maintenanceThis is high-precision linear module/ motorized linear guides .
Features are as follows :
1. multi-tasking design : Integrated drive with ball screw and guide rail U- references , in addition to providing precision linear motion , but also with a versatile accessory. The application of the import multipurpose design is very convenient , but also can achieve high precision linear drive demand .
2. Small and light : U type rail can be guide rail and also can take the platform structure with substantially to reduced installation Volume, and the finite element method to design the best structure , get the optimal stiffness to weight ratio. Low torque and low inertia smooth positioning exercise, can reduce energy consumption.
3.high-precision and high rigidity : according to the Deformation Analysis of the contact position of the ball by the load of all directions, that this precision linear module with high accuracy and high rigidity characteristics . The finite element method of optimal structural design, to get the best stiffness to weight ratio.
4.easy to detection and equipped : positioning accuracy , positioning repeatability , walking parallel degree and starting torque and other functions are easy to detected .
5.easy to facilitate assembly and maintenance : can assemble complete without professional skilled assembly workers, good lubrication to Dust-proof, easy maintenance

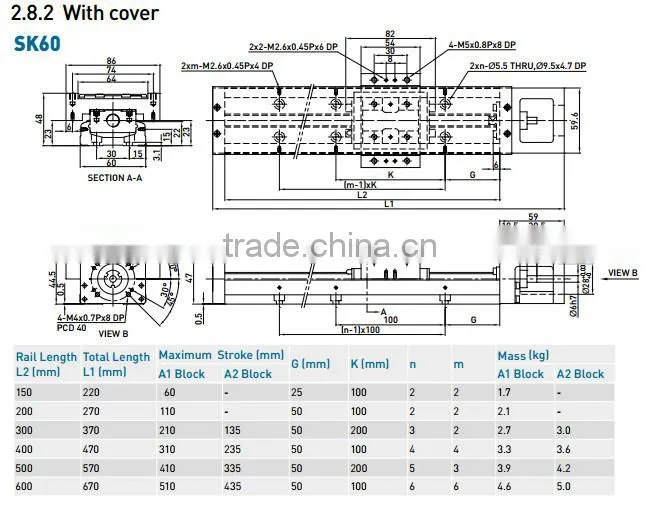

Dimension table for motorized linear guides:
Payment for linear module/ motorized linear guides :
We accept payment via TT (Bank transfer), Paypal and Western Union. We accept bank transfer for large orders. For small order, you'd better pay via Paypal, or Western union.
We delivery goods after receiving payments.
Orders will be canceled if payment is not received within 10 days of purchase.
Shipping for linear module/ motorized linear guides:
We offer as many shipping options as possible, including DHL, UPS, TNT, FEDEX and EMS, Airfreight and by Sea.
We ship to worldwide and declare lower value for customs.
Most orders (available in stock) ship within 1-5 business days on payment received (Except Holiday).
After we ship the item, we will email you the shipping information, as well as the tracking number.
If it happens to be any duties, taxes and any other fees charged by the courier company and your respective country, the buyers are duty to pay.
