This is high-precision linear module/ motorized linear guides .
Features are as follows :
1. multi-tasking design : Integrated drive with ball screw and guide rail U- references , in addition to providing precision linear motion , but also with a versatile accessory. The application of the import multipurpose design is very convenient , but also can achieve high precision linear drive demand .
2. Small and light : U type rail can be guide rail and also can take the platform structure with substantially to reduced installation Volume, and the finite element method to design the best structure , get the optimal stiffness to weight ratio. Low torque and low inertia smooth positioning exercise, can reduce energy consumption.
3.high-precision and high rigidity : according to the Deformation Analysis of the contact position of the ball by the load of all directions, that this precision linear module with high accuracy and high rigidity characteristics . The finite element method of optimal structural design, to get the best stiffness to weight ratio.
4.easy to detection and equipped : positioning accuracy , positioning repeatability , walking parallel degree and starting torque and other functions are easy to detected .
5.easy to facilitate assembly and maintenance : can assemble complete without professional skilled assembly workers, good lubrication to Dust-proof, easy maintenance

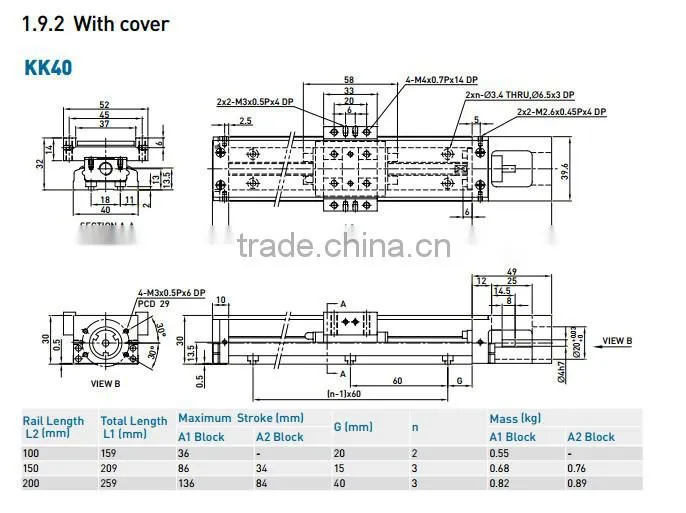

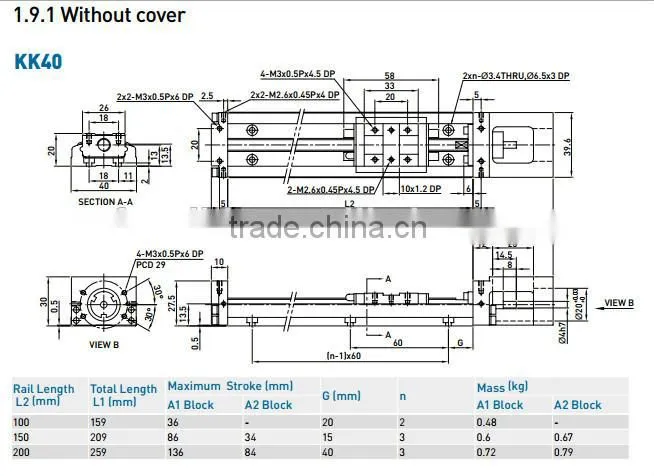

Dimension table for motorized linear guides:
