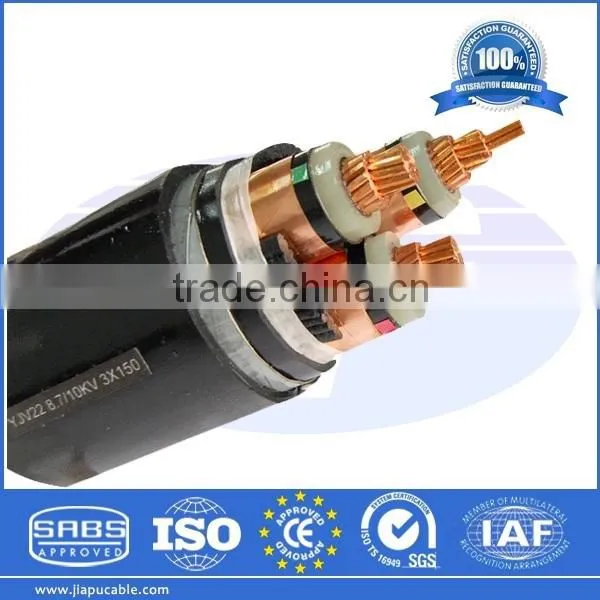

China Good Supplier 12/20(22)kV Medium Voltage XLPE Insulated Unarmoured Power Cable
What Are Our Advantages of XLPE Cable Compared With Other Manufacturers?
Property:
1.The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2.In short circuit (Max long term is no more than 5 seconds). The highest temperature for conductor is no more than 250 degrees.
3.The cable is laid without horizontal drop limit. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.
4.Excellent electrical performance, resistance to chemical corrosion.
5.They can stand advisable traction when laid.They can stand traction from Outside.Left low smoke halogen-free after burned.Retard the burning of the cable.
What are the Applications of XLPE Cable?
Application:
Medium Voltage XLPE Insulated power cable is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.
Technial Data:
IEC60502,designing and manufacturing special power cable according to the other standards required by the customers.
1)3.6/6(7.2)kV,3.6/6.6(7.2)kV,Single Core,Al or Cu/XLPE/CTS/PVC Unarmoured Power Cable
Normal Cross Section of Conductor |
Normal Diameter of Conductor |
Normal Thickness of Insulation |
Normal Thickness of |
Normal Thickness of Outer Sheath |
Approx. |
Approx. Net Weight |
Max. D.C. Resistance of Conductor at 20℃ |
||
Al Conductor |
Cu Conductor |
Al Conductor |
Cu Conductor |
||||||
mm2 |
mm |
mm |
mm |
mm |
mm |
kg/m |
kg/m |
Ω/km |
Ω/km |
25 |
6.0 |
2.5 |
0.12 |
1.5 |
17.6 |
0.34 |
0.49 |
1.2000 |
0.7270 |
35 |
7.0 |
2.5 |
0.12 |
1.5 |
18.5 |
0.39 |
0.60 |
0.8680 |
0.5240 |
50 |
8.3 |
2.5 |
0.12 |
1.6 |
20.0 |
0.46 |
0.74 |
0.6410 |
0.3870 |
70 |
9.7 |
2.5 |
0.12 |
1.6 |
21.5 |
0.55 |
0.96 |
0.4430 |
0.2680 |
95 |
11.3 |
2.5 |
0.12 |
1.7 |
23.3 |
0.66 |
1.23 |
0.3200 |
0.1930 |
120 |
13 |
2.5 |
0.12 |
1.7 |
24.8 |
0.77 |
1.48 |
0.2530 |
0.1530 |
150 |
14.6 |
2.5 |
0.12 |
1.8 |
26.4 |
0.87 |
1.77 |
0.2060 |
0.1240 |
185 |
15.9 |
2.5 |
0.12 |
1.8 |
28.1 |
1.01 |
2.13 |
0.1640 |
0.0991 |
240 |
18.3 |
2.6 |
0.12 |
1.9 |
30.9 |
1.23 |
2.71 |
0.1250 |
0.0754 |
300 |
20.4 |
2.8 |
0.12 |
2.0 |
33.6 |
1.48 |
3.32 |
0.1000 |
0.0601 |
400 |
23.2 |
3.0 |
0.12 |
2.1 |
37.0 |
1.81 |
4.16 |
0.0778 |
0.0470 |
500 |
26.4 |
3.2 |
0.12 |
2.2 |
41.1 |
2.24 |
5.27 |
0.0605 |
0.0366 |
630 |
30.1 |
3.2 |
0.12 |
2.3 |
45.0 |
2.73 |
6.62 |
0.0469 |
0.0283 |
2)6/10(12)kV,6.35/11(12)kV,Single Core,Al or Cu/XLPE/CTS/PVC Unarmoured Power Cable
Normal Cross Section of Conductor |
Normal Diameter of Conductor |
Normal Thickness of Insulation |
Normal Thickness of |
Normal Thickness of Outer Sheath |
Approx. |
Approx. Net Weight |
Max. D.C. Resistance of Conductor at 20℃ |
|||
Al Conductor |
Cu Conductor |
Al Conductor |
Cu Conductor |
|||||||
mm2 |
mm |
mm |
mm |
mm |
mm |
kg/m |
kg/m |
Ω/km |
Ω/km |
|
25 |
6.0 |
3.4 |
0.12 |
1.5 |
19.4 |
0.40 |
0.55 |
1.2000 |
0.7270 |
|
35 |
6.9 |
3.4 |
0.12 |
1.6 |
20.5 |
0.45 |
0.66 |
0.8680 |
0.5240 |
|
50 |
8.2 |
3.4 |
0.12 |
1.6 |
21.8 |
0.52 |
0.80 |
0.6410 |
0.3870 |
|
70 |
9.7 |
3.4 |
0.12 |
1.7 |
23.5 |
0.62 |
1.03 |
0.4430 |
0.2680 |
|
95 |
11.3 |
3.4 |
0.12 |
1.7 |
25.1 |
0.73 |
1.30 |
0.3200 |
0.1930 |
|
120 |
12.8 |
3.4 |
0.12 |
1.8 |
26.8 |
0.85 |
1.56 |
0.2530 |
0.1530 |
|
150 |
14.2 |
3.4 |
0.12 |
1.8 |
28.2 |
0.95 |
1.85 |
0.2060 |
0.1240 |
|
185 |
15.9 |
3.4 |
0.12 |
1.9 |
30.1 |
1.10 |
2.22 |
0.1640 |
0.0991 |
|
240 |
18.3 |
3.4 |
0.12 |
2.0 |
32.7 |
1.33 |
2.80 |
0.1250 |
0.0754 |
|
300 |
20.4 |
3.4 |
0.12 |
2.0 |
34.8 |
1.54 |
3.39 |
0.1000 |
0.0601 |
|
400 |
23.2 |
3.4 |
0.12 |
2.2 |
38.0 |
1.87 |
4.22 |
0.0778 |
0.0470 |
|
500 |
26.4 |
3.4 |
0.12 |
2.2 |
41.5 |
2.26 |
5.29 |
0.0605 |
0.0366 |
|
630 |
30.1 |
3.4 |
0.12 |
2.4 |
45.6 |
2.78 |
6.67 |
0.0469 |
0.0283 |
|
Our caring service, manufacturing careful Heart price, customers at ease.
"Customer-oriented", provides a full range of quality services for our customers;
"Service core" most valuable customers tailored products;
"Focus on quality, full-service customers!
Henan Jiapu Cable Group is located in Zhengzhou, the capital of Henan province, also politics, culture, economic and transport center. The group has 3 subsidiary companies which specialize in manufacturing and supplying variety kinds of wires & cables. With more than 15 years of efforts and development, it has become an influential manufacturer of wires & cables making machinery in China.
We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America,Central America,North America, Europe ,Australia and so on. Welcome your OEM and ODM orders.
We have held our ideal that innovation and humanism are the most important in the struggle and hardship of 20 years. We insist “People-oriented, customer-first, quallity best” purpose, develop the cable business, win many values in the wires and cables market, our cables brand “Xinsheng” has the high reputation in wires and cables market.
The main products are as follow:
Bare Conductor (AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW)
Aerial Bundled Cable 1kV-35kV (ABC Cable)
PVC Insulated (Flexible ) Wire and PVC Insulated and Sheathed (Armoured) Power Cable
Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable
Welding Cable, Control Cable, Rubber Sheathed Cable
Factory and Equipment:
Exhibition:
1. How many years has Henan Jiapu Cable Group been in production?
Founded in October 1998 by Mr. Gu, our facipty has three separate manufacturing workshops within its 100,000-sq.-ft. building. In 2012, we operates in a new 666,000 sq. foot state-of-the-art facipty in Xiaodian Industry Park.,Xinxiang, Henan ,China.
2. What kind of certifications do you have?
SABS, CE, ISO9001-2000, SGS.
3.Which markets do you involve mainly in?
Our products have been exported mainly to Africa, Middle East, South-east Asia, South America,Central America,North America, Europe ,Austrapa, etc.
4. Which standards do you comply with when you produce the electrical wires and cables ?
We are able to produce electrical wires and cables based on GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Meanwhile, we can design and manufacture the cables according to the samples and technical specification the customer supply.
5. What is the min.order quantity ?
It depends on the type and size of electrical wires and cables. For some small electrical wires, 100 meters can be accepted .But for the power cables with medium or high voltage, that should comply with the property of installed equipments. Anyhow,we will try our best to solve the problem and meet with the requirement If you have special request.
6. What is the production capacity per week or per month ?
For the bare conductor, we can finish 3000 tons within one month. For power cables, that depends on the type and size. The total output value per month is approx. USD3,000,000.00 for insulated aluminum cables and that is approx. USD8,000,000.00 for insulated copper cables.
7. Do you supply the customers with installation service in foreign country ?
We don’t have professional installation teams in foreign country.But if that is necessary, we will recommend our partners to cooperate with you.
8. Can't find what we're looking for in your catalogue?
Call one of our experienced sales reps at 0086 371 68665329. They can quote you on any type of products you need, or you can send your inquiry and question to our email.
