Specifications
450/750V Sheild control cable:nductor:aluminum
2.voltage:low
3.good service
4.fast delivery

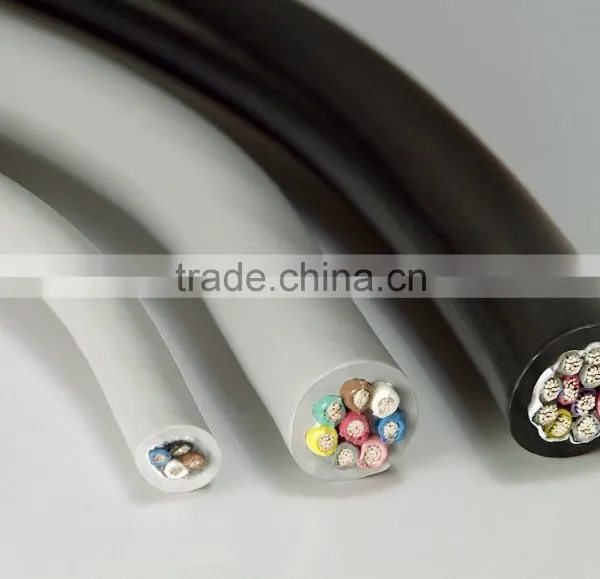

450/750V Sheild control cable :
1. Standard
The control cable can also be produced according to the standard GB9330-1988,IEC,BS,and our factory can also manufacture the cables in accordance with other standards.
2.Scope of Application
The control cable are suitable for the wiring of electrical controlling equipments and instrument,monitoring and controlling return circuit,electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.
3.Service Conditions
(1) The long-time working temperature of conductor of PVC insulated cable is 70oC
The long-time working temperature of conductor of XLPE insulated cable is 90oC
(2) The temperature for laying the cables cannot be lower than 0oC.Permissible bending radius(r):unarmoured cable:r≥6D;(D: outer diameter of the cable);armoured or copper-tape screened cable:r≥12D;shielded flexible cable:r≥6D
Model |
Description |
Application |
KVV |
copper conductor, PVC insulated, PVC sheathed, control cable |
Suitable for being laid indoors, in cable trench, pipelines or other specific occasions. |
KVVP |
copper conductor, PVC insulated, PVC sheathed, braided, shielded, control cable |
Suitable for being laid indoors, in cable trench, pipelines or other specific occasions that demands shielding. |
KVVP2 |
copper conductor, PVC insulated, PVC sheathed, copper-tape shielded, control cable |
|
KVV22 |
copper conductor, PVC insulated, PVC sheathed, steel-tape armored, control cable |
Suitable for being laid indoors, in cable trench and pipelines, directly burial or other specific occasions with a relatively large capacity for mechanical stretching force. |
KVV32 |
copper conductor, PVC insulated, PVC sheathed, thin steel wire-armored, control cable |
Suitable for being laid indoors, in cable trench, pipelines, silo or other specific occasions that demands shielding. |
KVVR |
copper conductor, PVC insulated, PVC sheathed, flexible, control cable |
Suitable for being laid indoors and places that demands moving cables with flexibility. |
KVVRP |
copper conductor, PVC insulated, PVC sheathed, braided shielded, flexible, control cable |
Suitable for being laid indoors and shielded places that demands moving cables |
4. Package:
100% wooden drums or steel drums, soft coils.
Our Advantage:
Abundant experience as first exporter of Henan Province; 15 years experience of manufacturing ; cover 50 countries of marketing; well-controlled qualitiy, thoughtful after-sale service as well as VERY competitive price.
