Specifications
iec 60502-1 standard control cablenductor:copper
2.insulation:pvc
3.high quality

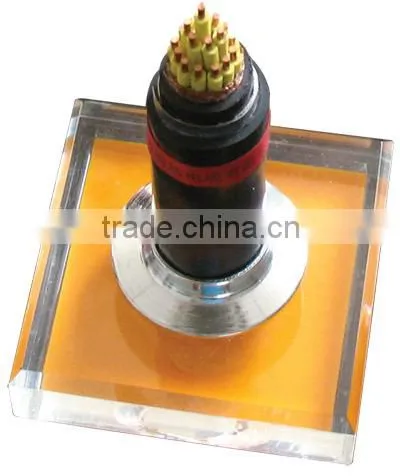

iec 60502-1 standard control cable
Kvv, copper conductor PVC insulated and sheathed control cable. for laying indoors, in tunnels and inducts, for fixed installation
KVV22, copper conductor PVC insulated and sheathed control cable with steel tape armor, for laying indoors, tunnel, and in ducts, and in ground ,able to withstand heavily mechanical force, for fixed installation
ZR-KVV, copper conductor PVC insulated and sheathed flame retardant control cable, for laying indoors, in tunnels and inducts, for fixed installation the cable should be retardant
ZR-KVV22, copper conductor PVC insulated and sheathed flame retardant control cable with steel tape, for laying indoors, in tunnels and inducts, for fixed installation ,the control cable should be retardant and bear to withstand mechanical
force
Core numbers×cross area (sq mm) |
the structure of conductor number / diameter of every piece |
Approximant diameter of Cable (mm) |
Approximant weight of cable(kg/km) |
Direct resistance of cable (Ω/km) |
19×0.75 |
1/0.97 |
14.65 |
293.91 |
24.5 |
19×0.75 |
7/0.37 |
15.35 |
314.28 |
24.5 |
24×0.75 |
1/0.97 |
16082 |
362.58 |
24.5 |
24×0.75 |
7/0.37 |
17.66 |
388.00 |
24.5 |
27×0.75 |
1/0.97 |
17.15 |
397.07 |
24.5 |
27×0.75 |
7/0.37 |
18.01 |
425.10 |
24.5 |
30×0.75 |
1/0.97 |
17.71 |
433.20 |
24.5 |
30×0.75 |
7/0.37 |
18.61 |
463.94 |
24.5 |
37×0.75 |
1/0.97 |
20.37 |
571.79 |
24.5 |
…………… |
Above are just some examples for technical data, and more information will be provided, if needed |
|||
