Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Electrical Cable Wire

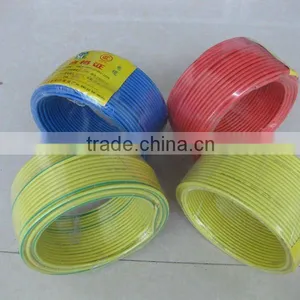

Electrical Cable Wire

Name: Electrical Cable Wire
Brand: Jiapu
SKU: 120522057

US$ 0.1 - 1 MOQ: 1 Kilometer

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

Jiapu

Model Number:

Contact Supplier Request Quote Chat Now

Henan Jiapu Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qing Dao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name Jiapu

Model Number BV

Type Insulated

Application Overhead

Conductor Material Copper

Conductor Type Solid

Insulation Material PVC

Specifications

electrical cable wire
nductor:copper
2.insulation:pvc
3.voltage:low
3.best service and fast delivery

electrical cable wire

electrical cable wire Include:

1) Copper (aluminium) conductor PVC insulated wires (BV)

2) Copper conductor PVC insulated flexible wires (BVR)

3) Copper (aluminium) conductor PVC insulated PVC sheathed round wires

4) Copper (aluminium) conductor PVC insulated PVC sheathed flat wires

5) Copper conductor PVC insulated flat and flexible connectors

6) Copper conductor PVC insulated PVC sheathed round and flexible connectors

Size: 0.5-185 mm²

Usage:

This prodcut is widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects.

electrical cable wire Include following code and specification

Nominal sectional area mm 2	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20		Min insulated resistance at 70MΩ/km	Weight Kg/km
Nominal sectional area mm 2	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Cu	Al	Min insulated resistance at 70MΩ/km	Cu	Al
1.5	1/1.38	0.7	3.3	12.1	-	0.011	19.2	-
1.5	7/0.52	0.7	3.5	12.1	-	0.010	20.6	-
2.5	1/1.78	0.8	3.9	7.41	11.8	0.010	30.8	15.0
4	1/2.25	0.8	4.4	4.61	7.39	0.0085	45.5	21.0
6	1/2.76	0.8	4.9	3.08	4.91	0.0070	65.0	29.0
10	7/1.35	1.0	7.0	1.83	3.08	0.0065	110.0	52.0
16	7/1.70	1.0	8.0	1.15	1.91	0.0050	170.0	70.0
