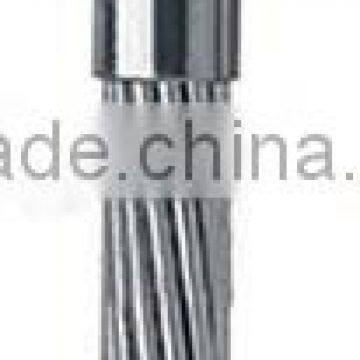

Stranded Aluminium Clad Steel Reinforced Acsr/aw Conductor
US$ 0.1 - 1
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
jiapu
Model Number:
ACSR/AW,JL/LB1A
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or other port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Steel-reinforced Core Aluminium Stranded ConductorUS$ 0.1 - 1.1MOQ: 1000 Meters -
Galvanized Stainless Steel Guy WireUS$ 0.1 - 1MOQ: 1 Kilometer
-
Zinc Coated WireUS$ 0.1 - 1MOQ: 1000 Meters
-
Bare Aluminum Conductor AAAC ConductorUS$ 0.1 - 1MOQ: 1100 Meters
-
Reliable Quality AAC Cable For SaleUS$ 0.1 - 1MOQ: 1 Kilometer
Place of Origin
Henan, China
Brand Name
jiapu
Model Number
ACSR/AW,JL/LB1A
Insulation Material
Other, bare
Type
Low Voltage
Application
Overhead
Conductor Material
Aluminum
Jacket
Other, none
Specifications
aluminium conductor aluminium clad steel reinforced:1.high quality
petitive price
3.fast delivery
4.best service
Aluminum conductor, aluminum-clad steel-reinforced ACSR/AW
1. Reference standard: BS 215: 1970
3. Application: This product is used in field of overhead power line rated voltage 800kv or below.
4. The test reports Issued by the third party Is available before the delivery of your orders
| Nominal aluminum area mm2 |
Name Code |
Stranding and wire diameter |
Sectional Area of aluminum mm2 |
Total sectional area mm2 |
Approx. overall diameter mm |
Approx. Weight kg/km |
Calculated D. C resistance at 20 DEG C Ohm/km |
Calculated breaking load kN |
|
| Aluminum mm |
AS mm |
||||||||
| 25 | GOPHER | 6/2.36 | 1/2.36 | 26.25 | 30.62 | 7.08 | 100.8 | 1.0349 | 9.89 |
| 30 | WEASEL | 6/2.59 | 1/2.59 | 31.61 | 36.88 | 7.77 | 121.5 | 0.8592 | 11.79 |
| 40 | FERRET | 6/3.00 | 1/3.00 | 42.41 | 49.48 | 9.00 | 163.0 | 0.6405 | 15.66 |
| 50 | RABBIT | 6/3.55 | 1/3.35 | 52.88 | 61.70 | 10.05 | 203.2 | 0.5136 | 19.06 |
| 70 | HORSE | 12/2.79 | 7/2.79 | 73.37 | 116.2 | 13.95 | 243.1 | 0.3286 | 63.95 |
| 100 | DOG | 6/4.72 | 7/1.57 | 105.0 | 118.5 | 14.15 | 300.9 | 0.2619 | 33.01 |
| 150 | WOLF | 30/2.59 | 7/2.59 | 158.1 | 194.9 | 18.13 | 471.6 | 0.1694 | 71.64 |
| 150 | DINGO | 18/3.35 | 1/3.35 | 158.7 | 167.5 | 16.75 | 495.0 | 0.1781 | 36.46 |
| 175 | LYNX | 30/2.79 | 7/2.79 | 183.4 | 226.2 | 19.53 | 547.3 | 0.1460 | 82.49 |
| 175 | CARACAL | 18/3.61 | 1/3.61 | 184.3 | 194.5 | 18.05 | 574.9 | 0.1534 | 41.52 |
| 200 | PANTHER | 30/3.00 | 7/3.00 | 212.1 | 261.5 | 21.00 | 632.8 | 0.1263 | 95.34 |
| 200 | JAGUAR | 18/3.86 | 1/3.86 | 210.6 | 22.3 | 19.30 | 657.2 | 0.1342 | 46.50 |
| 400 | ZEBRA | 54/3.18 | 7/3.18 | 428.9 | 484.5 | 28.62 | 1238 | 0.06456 | 137.76 |
