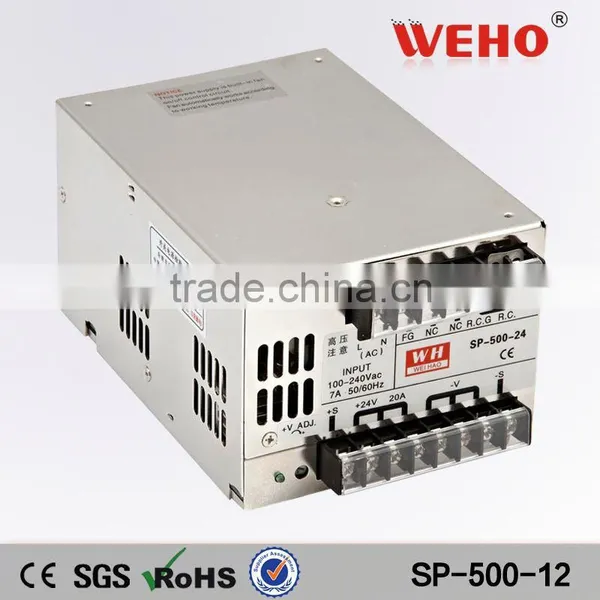

CE RoSH Approved 500w Single Output Switch Power

Name: CE RoSH Approved 500w Single Output Switch Power
Brand: WeHo
SKU: 120503403

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

WeHo

Model Number:

SP-500-12

Output Power:

401 - 500W

Zhejiang Weihao Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai Guangzhou Hangzhou

Delivery Detail:

Delivery time depends on order quantity.

Brand Name WeHo

Model Number SP-500-12

Output Power 401 - 500W

Output Type Single

Input Voltage 220V

Output Voltage 12V

Output Frequency 50Hz

Output Current 40A

500w Single Output Switch Power

switch power
1.CE RoHS approved
2.2 years warranty
3.87% efficiency
4.high quality

switch power

1.Specification:

Model Specification	SP-500-12	SP-500-13.5	SP-500-15	SP-500-24	SP-500-27	SP-500-48
DC output voltage	12V	13.5V	15V	24V	27V	48V
Output voltage error	1%	1%	1%	1%	1%	1%
Rated output current	40A	36A	32A	20A	18A	10A
Output current rage	0-40A	0-36A	0-32A	0-20A	0-18A	0-10A
Wave and noise	240mVp-p	240mVp-p	240mVp-p	240mVp-p	200mVp-p	300mVp-p
Inlet stability	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%
Load stability(Note5)	1%	0.5%	0.5%	0.5%	0.5%	0.5%
DC output power	480W	486W	480W	480W	486W	480W
Efficiency	84%	84%	83%	85.5%	86.5%	87%
Adjustable range for DC voltage	10-13.2V	12-15V	13.5-18V	20-26.4V	24-30V	41-56V
AC input voltage range	88132VAC/176264VAC BY SWITCH 4763Hz;124370VDC
AC Input current	7A/115V 3.5A/230V
Power Factor	0.95/100240VAC
AC impulse current	18A/115V 36A/230V
Leakage current	<3.5mA/240VAC
Overload protection	105%135% TypePULSING HICCUP SHUTDOWN Reset: auto recovery
Over-voltage protection	13.816.2V	15.518.2V	1821V	27.632.4V	3136.5V	57.667.2V
Fan control,O.T.P.	RTH1 OR RTH2>=50 FAN ON,<=45 FAN OFF,>=70 Cut off output
Temperature coefficient	0.03%(050)
Setup rise hold up time	1.5s,50ms,20ms
Vibration	10500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Withstand voltage	Input and output interval3KVAC,Input and enclosure1.5KVAC Output and enclosure0.5KVAC
Isolation resistance	Input and output interval,Input and enclosure,Output and enclosure500VDC/100M Ohms
Working temperature and humidity	-10+50,20%90%RH
Store temperature and humidity	-20+85,10%95%%RH
Overall dimension	1852093mm
Weight	1.8Kgs
Safety standards	UL1950,TUV EN60950
EMC standards	IEC1000-42,3,4,5,6,8,11 IEC100-3-2
