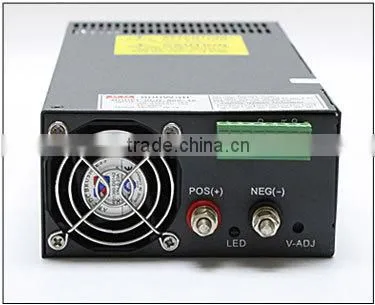

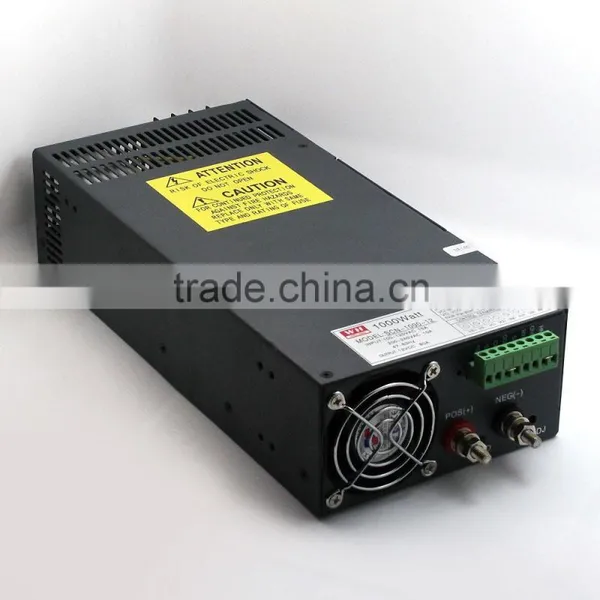

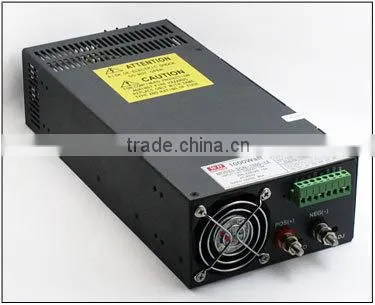

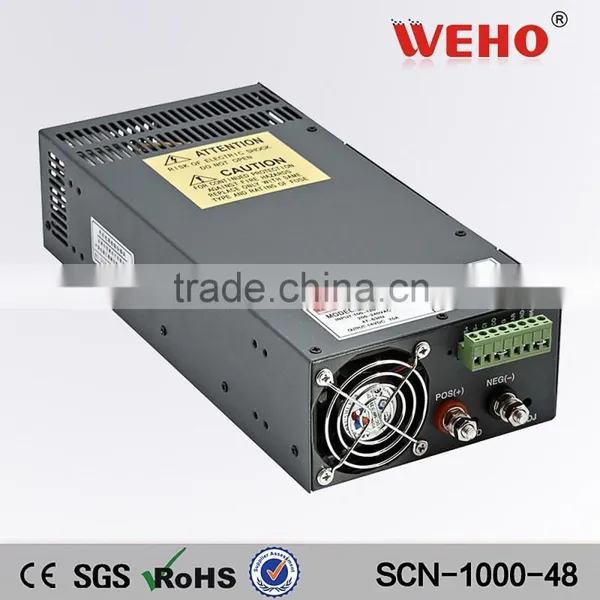

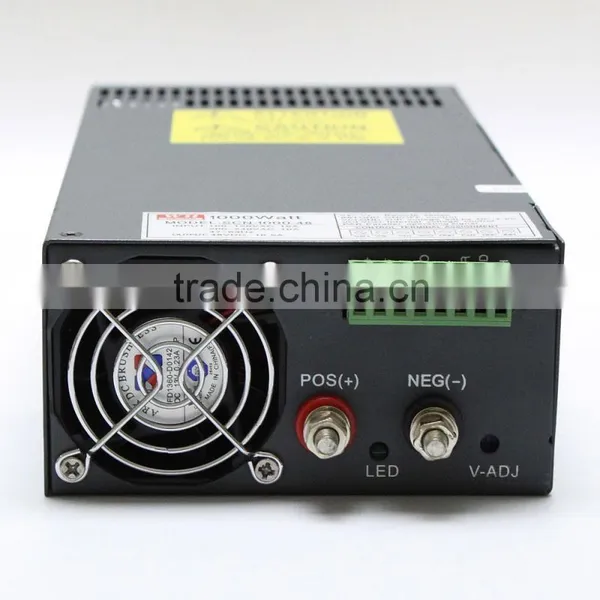

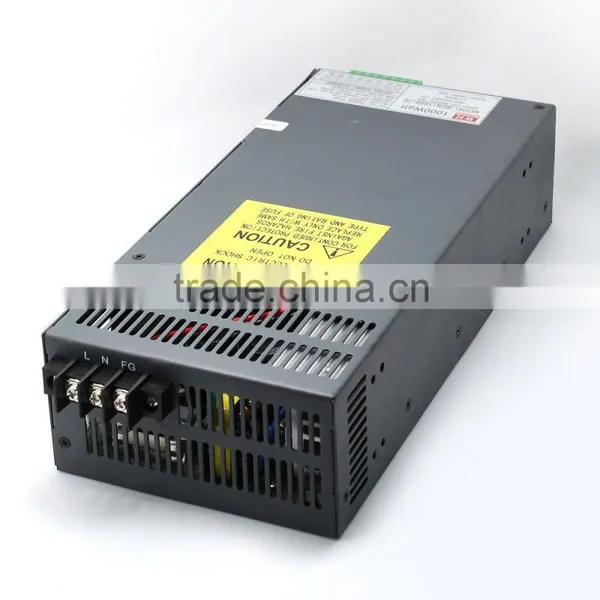

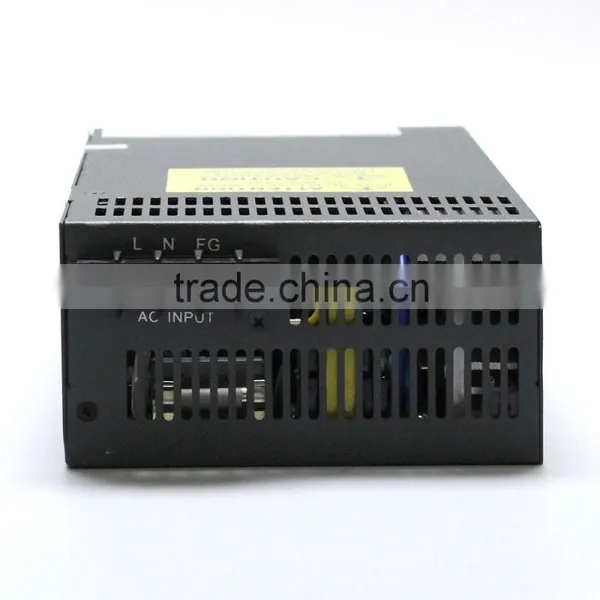

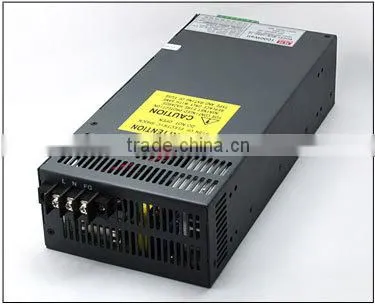

Professional manufacturer Ac Dc Switching Power Supply 1000w 48v industrial smps
|
Model Performance |
SCN-1000-12 |
SCN-1000-13.5 |
SCN-1000-15 |
SCN-1000-24 |
SCN-1000-27 |
SCN-1000-48 |
|
DC Output Volta |
12V |
13.5V |
15V |
24V |
27V |
48V |
|
Output voltage tolerance(Note 2) |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
|
Rated output current |
50A |
44A |
40A |
25A |
22A |
12.5A |
|
Output current range |
0-40A |
0-36A |
0-32A |
0-20A |
0-18A |
0-10A |
|
Ripple and noise(Note 3) |
240mVp-p |
240mVp-p |
240mVp-p |
240mVp-p |
200mVp-p |
300mVp-p |
|
Inlet stability(Note 4) |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Load stability(Note 5) |
±1% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
DC output power |
600W |
600W |
600W |
600W |
600W |
600W |
|
Efficiency |
84% |
84% |
83% |
85.5% |
86.5% |
87% |
|
DC voltage adjustable range |
10-13.2V |
12-15V |
13.5-18V |
20-26.4V |
24-30V |
41-56V |
|
Input voltage range |
88~132VAC/176~264VAC CHOOSE BY SWITCH 47~63Hz;124~370VDC |
||||||
Input current |
7A/115V 3.5A/230V |
||||||
Surge Current |
0.95/100~240VAC |
||||||
Leakage Current |
18A/115V 36A/230V |
||||||
Overload protection |
<3.5mA/240VAC |
||||||
over-voltage protection |
105%~135% type:FOLDBACK cut off output reset:Automatic recovery |
||||||
High temperature protection |
13.8~16.2V |
15.5~18.2V |
18~21V |
27.6~32.4V |
31~36.5V |
57.6~67.2V |
|
temperature coefficient |
RTH1 OR RTH2>=55°C FAN ON,<=45°C FAN OFF,>=70°C cut off output |
||||||
Start-up,upper,rentention time |
±0.03%°C(0~50°C) |
||||||
shock resistance |
1.5s,50ms,20ms |
||||||
Withstand |
10~500Hz,2G 10min./1circle,time:60min.,axes |
||||||
Insulation Resistance |
Input to Output Isolation:3KVAC,input&shell:1.5KVAC output &shell:0.5KVAC |
||||||
|
work Temperature/ humidity |
Input to Output Isolation,,input&shell, output &shell:500VDC/100M Ohms |
||||||
Storage Temperature,temperature |
-10°C~+50°C,20%~90%RH |
||||||
Outline dimension |
-20°C~+85°C,10%~95%%RH |
||||||
Weight |
291*132*68mm shell:910 |
||||||
Safety standards |
5Kgs |
||||||
EMC Standard |
UL1950,TUV EN60950 |
||||||
|
Model Performance |
CISPR22(EN55022),IEC1000-42,3,4,5,6,8,11 IEC100-3-2 |
||||||
