(s-50-5) Two Year Warranty 50w 5v Ac/dc Switch Power Supply
1.Specification:
(s-50-5) Two Year Warranty 50w 5v Ac/dc Switch Power Supply
Model
S-50-5
S-50-12
S-50-15
S-50-24
DC output voltage
5V
12V
15V
24V
Rated output current
10A
4.2A
3.4A
2.1A
Output current rage
0-10A
0-4.2A
0-3.4A
0-2.1A
Wave and noise
75mVp-p
100mVp-p
100mVp-p
100mVp-p
Inlet stability
0.5%
0.5%
0.5%
0.5%
Load stablity
1%
0.5%
0.5%
0.5%
Efficiency
71%
78%
78%
82%
Adjustable range for DC voltage
10%
10%
10%
10%
AC input voltage range
AC100~240V 47~63Hz;240~370VDC
Input current
1.3A/115V 0.65A/230V
AC INnrush current
Cold-start current 18A/115V 36A/230V
Overload proctection
105%~150% Tpye:Foldback current limiting Reset: auto recovery
Over-voltage protection
Setup rise hold up time
200s,100ms,20ms
Withstand voltage
Input and output internal 1.5KVAC,Input and enclosure 1.5KVAC,Output and enclosure 0.5KVAC
Isolation resistance
Input and output internal Input and enclosure,Output and enclosure 500VDC/100M
Working temperature
-10C~+50C
Overall dimension
159*97*38mm
Safety standards
Meet ULGB4943 UL60950 EN60950 requirement
EMC standards
Meet EN55022 GB9254 class A requirement
Weight
0.5Kgs

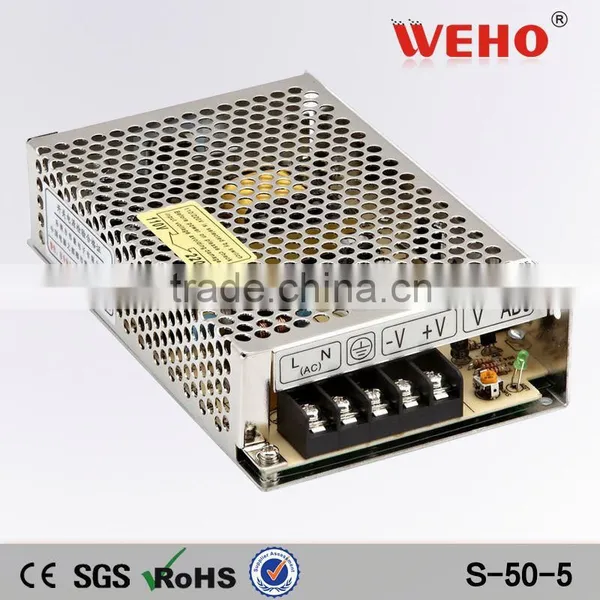

2.Model Show:
(s-50-5) Two Year Warranty 50w 5v Ac/dc Switch Power Supply
3. Packing:
we use 4 trips to reinforce our carton,
the international standards package methods guaranteed our goods safety during transportation
(s-50-5) Two Year Warranty 50w 5v Ac/dc Switch Power Supply
Certificate:
we are a professional manufacturer of power supplies ,
all of our products have approved CE ROHS and ISO9001:2008
5.Feedback :(s-50-5) Two Year Warranty 50w 5v Ac/dc Switch Power Supply
We get a good feedback from our customers ,what we want to do is make your business easy .
$
(s-50-5) Two Year Warranty 50w 5v Ac/dc Switch Power Supply
