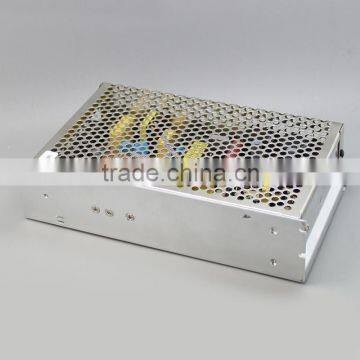

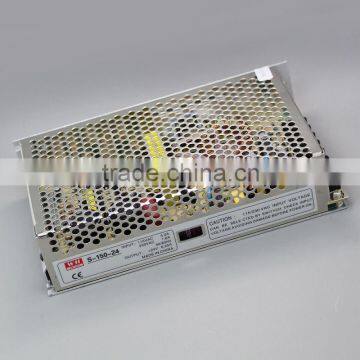

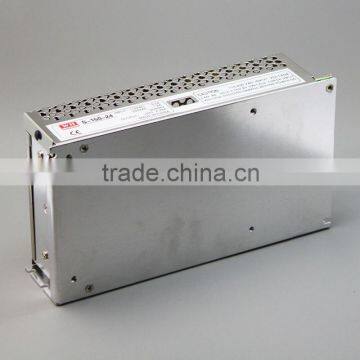

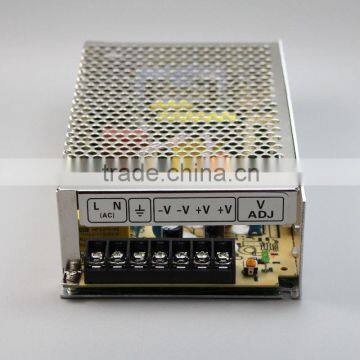

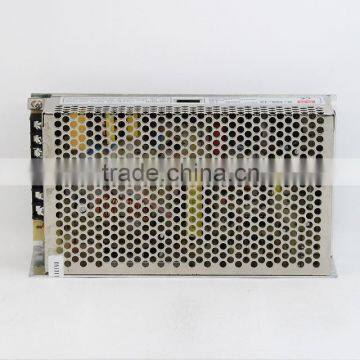

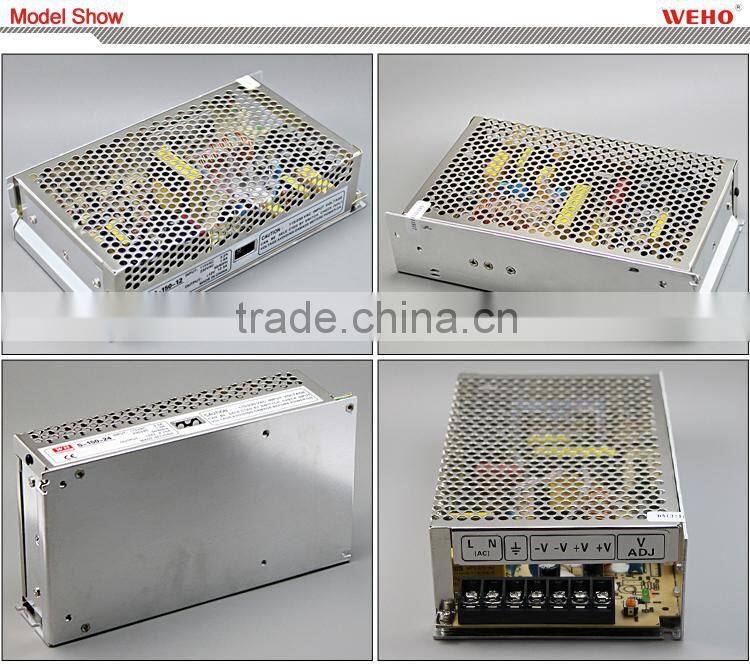

2014 hot selling 48v switch mode power supply
Product Description
| Specification | S-150-5 | S-150-7.5 | S-150-9 | S-150-12 | S-150-13.5 | S-150-15 | S-150-24 | S-150-27 | S-150-48 |
| DC output voltage | 5V | 7.5V | 9V | 12V | 13.5V | 15V | 24V | 27V | 48V |
| Output voltage error (Note2) | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Rated output current | 30A | 20A | 16.7A | 12.5A | 11.2A | 10A | 6.5A | 5.6A | 3.2A |
| Output current rage | 0-30A | 0-20A | 0-16.7A | 0-12.5A | 0-11.2A | 0-10A | 0-6.5A | 0-5.6A | 0-3.2A |
| Wave and noise(Note3) | 150mVp-p | 150mVp-p | 180mV | 180mV | 180mV | 180mV | 240mV | 240mV | 240mV |
| Inlet stability(Note4) | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% |
| Load stability(Note5) | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% |
| DC output power | 150W | 150W | 150.3W | 150W | 151.2W | 150W | 156W | 151.2W | 153.6W |
| Efficiency | 78% | 80% | 80% | 82% | 83% | 84% | 85% | 86% | 87% |
| Adjustable range for DC voltage | 4.5-5.5V | 6-8.3V | 8-10.4V | 10.6-13.2V | 12-15V | 13.5-16.5V | 21-28V | 24-30V | 43-53V |
| AC input voltage range | 85 to132VAC/176 to264VAC SELECTED BY JUMPER OR SWTCH 47 to63Hz;255 to370VDC | ||||||||
| Input current | 3.2A /115V 1.6A/230V | ||||||||
| AC impulse current | Cold-start current 35A/115V 60A/230V | ||||||||
| Leakage current | <3.5mA/240VAC | ||||||||
| Overload protection | 105 to150 Type PULSING HICCUP SHUTDOWN Reset:auto recovery | ||||||||
| Over-voltage protection | 115% to135% | ||||||||
| High-temperature protection | .. | ||||||||
| Temperature coefficient | ±0.03% centidegree (0 to50 centidegree ) | ||||||||
| Setup rise hold up time | 100ms,50ms,20ms | ||||||||
| Vibration | 10 to500Hz,2G 10min./1cycle,Period for 60min,Each axes | ||||||||
| Withstand voltage | Input and output interval 3KVAC , Input and enclosure 1.5KVAC , Output and enclosure 0.5KVAC | ||||||||
| Isolation resistance | Input and output interval , Input and enclosure, Output and enclosure 500VAC/100M Ohms | ||||||||
| Working temperature and humidity | -10 centidegree to+60 centidegree , 20% to90%RH | ||||||||
| Store temperature and humidity | -20 centidegree to+85 centidegree, 10% to95RH | ||||||||
| Overall dimension | 199*110*50mm | ||||||||
| Weight | 0.8Kgs | ||||||||
| Safety standards | Meet UL1012,TUV EN60950 | ||||||||
| EMC standards | Meet CLSPR22(EN55022), IEC801-2,3,4,IEC555-2 Verification | ||||||||
Company Information
FAQ
1.Voltage
• Output XXV on the switching power supply. XX is the voltage.
E.g.: 5V, 9V, 12V, 13.8V, 15V, 18V, 24V, 36V 48V .............
2.Current:
• Output XXA on switching power supply . XX is the current.
E.g.: 0.5A , 1A, 1.5A, 2A, 3A, 4A, 5A, 6A 10A 15A 20A 30A 40A 50A 60A 80A ......
3.Quality
• We have the best professional and experienced engineer and strict QA and QC system. Rpair rate under 0.1%~0.2%.
4.Delivery
• Strong production capacity: 6000 pieces per day, could provide customerlized package upon request. We will make the the shipping to be the most economical for you and freight cost is informed in advance for your consideration and requirements
5. Guarantee period
• During the guarantee period, if any defect and/ or inherent fault is discovered, the Buyer shall notify the Seller and supply evidence of the defective,faulty parts or damaged goods,after seller's testing and confirmation,if commodity is damaged owing to defective products ,The Seller shall take prompt action to remedy, repair, or replace the defective or faulty parts at his own expenses within 07 days after receipt of Buyer’s notice by fax/mail.
6. Applications
• Power tools series: Electric Saw, Drilling Machine, Ginder, Sand blast Machine, Puching Machine,Weeding Machine,Air Compressor etc.
• Office series: Computer,Printer,LCD Monitor,Scanning Machine etc.
• Household Appliance series: Dust Collector,Fan Lamp or LED ,Sewing Machine etc.
• Kitchen Appliance series: Microwave Oven, Fridge, Freezr, Coffemarker etc.
• Industrial Equipemnt series: shipping,vehicle,metalhalide lamp,solar system,wind power generation ect.
• Electrical filed series: TV,VCRS,Radio ect.
7.Distributor
We are looking for distributor and agent all over the world for switching power supply . Should you any interest, please do feel free to send your message or inquiry. Welcome and join us, 24 hours service waiting for you. .Promt delivery and professional after-sales service are our priority ,which makes us to be your reliable partner.
