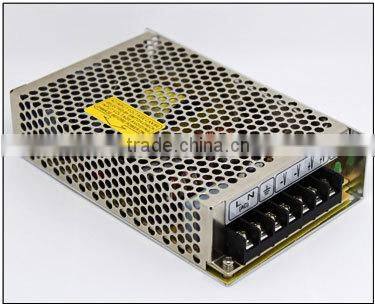

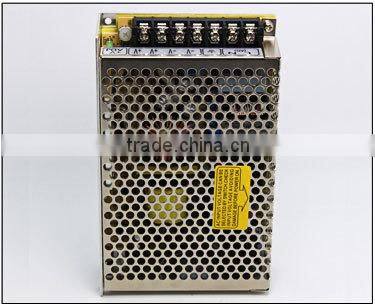

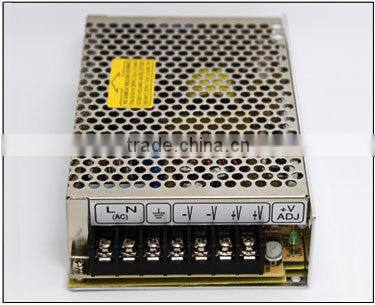

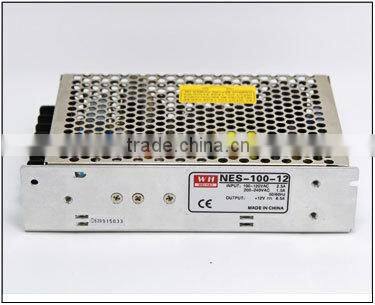

High Quality 100w Variable dc Power Supply 15v 7a Smps

Name: High Quality 100w Variable dc Power Supply 15v 7a Smps
Brand: Weihao
SKU: 120487757
Availability: InStock

Zhejiang Weihao Electronic Co., Ltd.

US$ 7.8 - 9.6 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Weihao

Model Number:

NES-100-15

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Weihao

Model Number NES-100-15

Output Power 51 - 100W

Output Type Single

Input Voltage 220V

Output Voltage 15v

Output Frequency 47~63HZ

Output Current 7A

High quality 100w variable dc power supply 15v 7a smps

Model	NES-100-3	NES-100-5	NES -100-7.5	NES -100-12	NES -100-15	NES -100-24	NES -100-27	NES -100-48
DC output voltage	3V	5V	7.5V	125V	15V	24V	27V	48V
Output voltage range(Note:2)	2%	2%	1%	1%	1%	1%	1%	1%
Rated output current	20A	20A	13.6A	8.5A	6.7A	4.5A	3.7A	2A
Output current range	0-20A	0-20A	0-13.6A	0-8.5A	0-6.7A	0-4.5A	0-3.7A	0-2A
Wave and noise(Note:3)	150mV	150mV	150mV	150mV	150mV	150mV	200mV	240mV
Inlet stability(Note:4)	0.5%	0.5%	0.5%	0.3%	0.3%	0.2%	0.2%	0.2%
Load stability(Note:5)	1%	1%	0.5%	0.3%	0.3%	0.2%	0.3%	0.2%
DC output power	60W	100W	102W	102W	100.5W	108W	99.9W	96W
Efficiency	70%	78%	81%	81%	81%	84%	84%	84%
Adjustable range for DC voltage	2.85~3V	4.75~5.5V	6.75~8.25V	10.8~13.2V	13.5~16.5V	21.6~26.4V	26~32V	43.2~52.8V
Input current	2.4A/115V 1.2A/230V
AC inrush current	Cold-start current 30A/115V 60A/230V
Leakage current	<1mA/240VAC
Overload protection	105%~150%		150%~200%	105%~150%
Overload protection	Type: Output shutdown Reset: Recycle AC ON/OFF
Temperature coefficient	0.03%/c(0~50c)
Setup, rise , hold up time	200ms,100ms, 30ms
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal: 1.5KvAC, Input and enclosure:1.5KvAC, Output and enclosure:0.5KvAC
Working temperature and humidity	-10c~+60c(Refer to output derating curve), 20%~90%RH
Weight	0.65Kgs
Safety standards	Meet UL 1012 requirementNot apply forr the mark
EMC standards	Meet FCC PART 15 J Conduction class B
