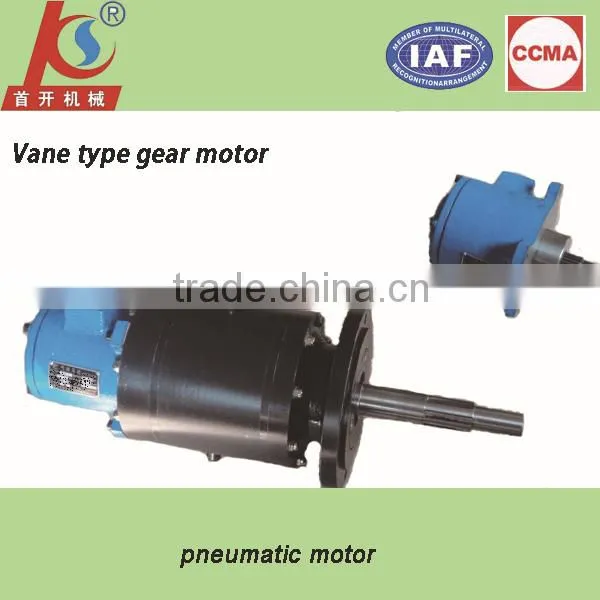

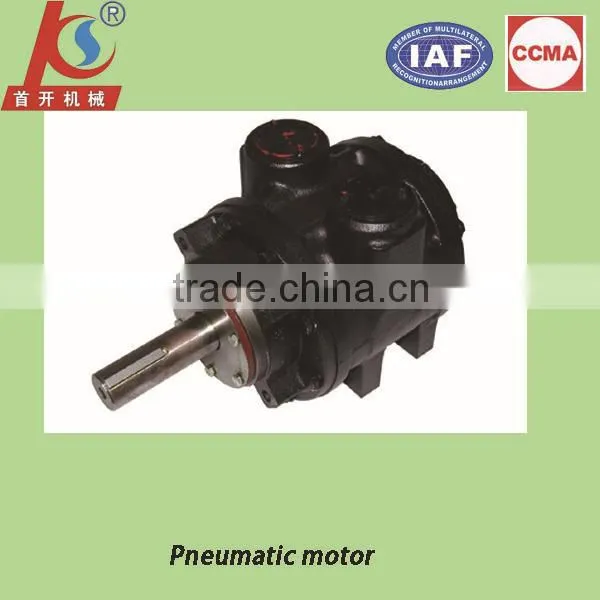

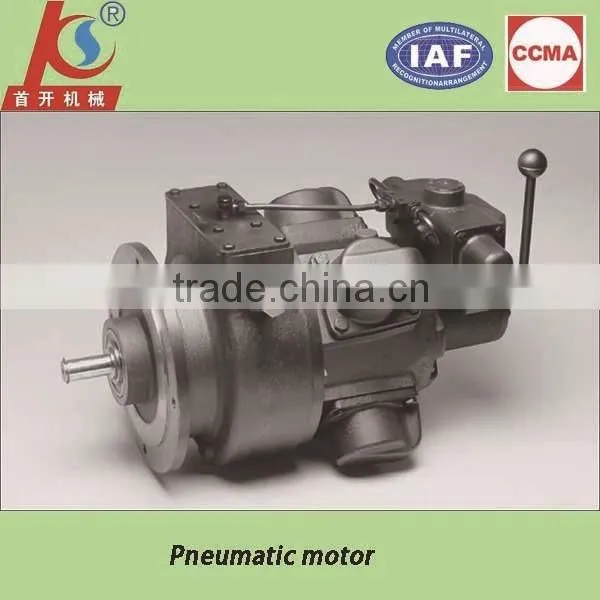

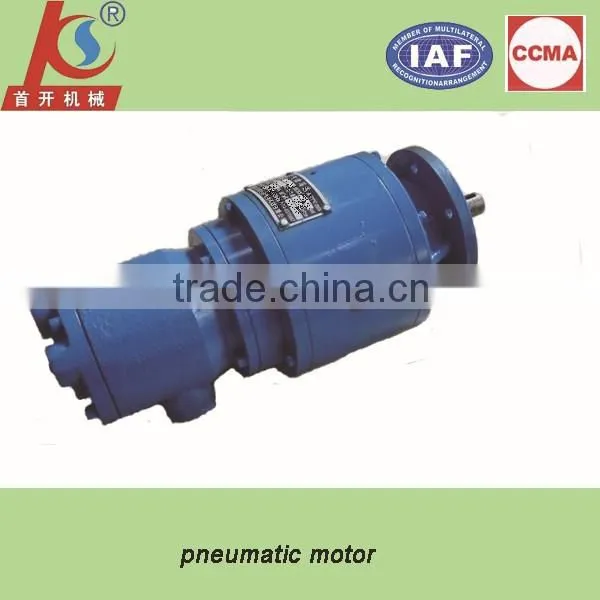

Help CenterShoukai Brand Air Motor for Sale
Related Products
-
Portable W3.5/7 Diesel Piston Air CompressorNegotiableMOQ: 5 Sets -
Portable Petrol Handheld YN27C Rock Dril MachineNegotiableMOQ: 5 Sets
-
Shoukai SDP900E Portable Diesel Engine Air Compressor for Drilling EquipmentNegotiableMOQ: 1 Set
-
YT28 Air Leg Pneumatic Jack HammerNegotiableMOQ: 1 Set
-
Rock Drill YT28US$ 500 - 1,000MOQ: 1 Set
Specifications
1,This motor can stop unlimited times in the condition of full load. It can start up and stop without limited.
2, It can be controled within a wide speed range.
3, When it smooth starts up, It can reduce the impact to transmit components to the lowest level.
4, Pneumatic motor can add reduction gears and will not be interfered by electromagnetism.
5, The speed of motor is linear adjustable by the pressure of air source.
6, The transmitted torque and power of motor is adjusted by the air pressure.
7, Pneumatic motor gets the maximum torque when the lowest ratating speed. When load is bigger, the rotating speed of motor is lower and it will provide bigger torque.
8, It is not danger for itself when pneumatic motor over loads till it stops running. Its temperature will not increase even it re-start.
9, The size and weight of pneumatic motor is smaller compared with electric motor and the transmit power of pneumatic motor is higher.
10, Pneumatic motor will not spark. The motor temperature will not increase because of air flow. It will not be affected by erosive and moist environments.
11, Double direction rotating, It is easily to realize reverse rotate operation.
| Model | rated power(Kw) | rated rotation speed(r/min) | rated torque(N·m) | working air pressure(Mpa) |
| TMY0.4-5C | 0.4 | 1500 | 2.5 | 0.5 |
| TMYJ0.4-36 | 0.4 | 200 | 19.1 | 0.5 |
| TMY0.5X | 0.5 | 7500 | 0.62 | 0.5 |
| TMY0.7 | 0.66 | 4500 | 1.4 | 0.5-0.7 |
| TNY0.7-14 | 0.7 | 360 | 18 | 0.5 |
| TMYJ1-22 | 1 | 200 | 47 | 0.5 |
| TMYJ1-100 | 0.94 | 40 | 235 | 0.5 |
| TMYJ1B-73 | 0.94 | 55 | 160 | 0.63 |
| TMYJ1B-73Z | 1 | 55 | 160 | 0.5 |
| TMYJ1C-14 | 1.01 | 275 | 32 | 0.5 |
| TMY1.5 | 1.47 | 4000 | 3.57 | 0.5-0.7 |
| TMY1.5D | 1.5 | 4000 | 3.57 | 0.5 |
| TMY1.5F | 1.5 | 3500 | 4.1 | 0.5 |
| TMY1.5Z | 1.47 | 4000 | 3.57 | 0.5-0.7 |
| TMY1.5-6 | 1.5 | 700 | 20 | 0.5 |
| TMYJ1.5-14 | 1.47 | 257 | 50 | 0.5-0.7 |
| TMY1.5-16 | 1.5 | 250 | 57 | 0.5 |
| TMYQ1.5-36 | 1.5 | 110 | 115 | 0.5 |
| TMY1.5-36 | 1.5 | 110 | 115 | 0.5 |
| TMY1.5-42 | 1.5 | 95 | 171 | 0.5 |
| TMY1.5-81 | 1.47 | 49 | 254 | 0.5 |
| TMY2 | 2.0 | 3500 | 5.46 | 0.5-0.7 |
| TMY2Z | 2.0 | 3500 | 5.46 | 0.5-0.7 |
| TMY3 | 3 | 3200 | 8.9 | 0.5-0.7 |
| TMYJ3 | 3 | 3200 | 8.9 | 0.63 |
| TMYJ3-1.8 | 3 | 1770 | 16 | 0.49 |
| TMYJ3-13 | 2.94 | 245 | 103 | 0.5 |
| TMYJ3-30 | 3 | 106 | 270 | 0.63 |
| TMYJ3-42 | 2.94 | 75 | 340 | 0.5 |
| TMYJ3-42A | 2.94 | 75 | 340 | 0.5 |
| TMYJ3-78A | 2.94 | 40 | 700 | 0.5 |
| TMYJ3-230 | 3 | 15 | 1700 | 0.5-0.7 |
| TMY4 | 4.4 | 3200 | 13.1 | 0.5-0.7 |
| TMYJ4-4A | 4.4 | 900 | 75 | 0.5-0.7 |
| TMYJ4-4B | 4.4 | 800 | 52 | 0.5-0.7 |
| TMYJ4-78 | 3.9 | 41 | 806.5 | 0.63 |
| TMYJ4-230 | 4 | 15 | 25000 | 0.5 |
| TMYJ4.4-4 | 4.4 | 1000 | 42 | 0.5-0.7 |
| TMY6 | 5.88 | 2800 | 20 | 0.5-0.7 |
| TMYJ6 | 5.88 | 700 | 80 | 0.63 |
| TMYJ6-35Z | 6 | 800 | 71 | 0.5 |
| TMYJ6-13A | 6 | 215 | 266 | 0.5 |
| TMYJ6-13.5 | 6 | 215 | 266 | 0.5 |
| TMY7C | 6.6 | 3200 | 19.6 | 0.5-0.7 |
| TMY7S | 7 | 2800 | 23.8 | 0.5 |
| TMYJ7-13 | 7 | 215 | 310 | 0.5 |
| TMYJ7S-78QF | 7 | 80 | 750 | 0.63 |
| TMY8 | 8 | 3500 | 21.8 | 0.5-0.7 |
| TMHY9 | 8.82 | 2500 | 33.6 | 0.5-0.7 |
