YT28 jack leg drill:
The YT28 rock drill machine is a kind of high efficiency air leg rock drill machinery.It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility. It is suitable for drilling and blasting under various of rocks at any direction angles.Blast hole dia is 3-42mm,drill hole depth is 5 m.
This machine may match with Model FT160BD short air leg or Model FT160BC long air leg.
This machine has transparent surface of FY200B oil reservoir to regulate oil.
Weight :26KG Length :661mm
Cylinder diameter: 80mm Piston stroke: 60mm
Working pressure: 0.5-0.6Mpa Impact frequency: ≥34≥37HZ
Air consumption ≤55≤81L/s Gas hose diameter :25mm
Water hose diameter :13mm Drill bit diameter: diameter 40- diameter 50mm
Drilling speed : ≥250≥400≥470mm/min Rotation : ≥250≥260≥300L/min
Drilling torque: ≥15≥19≥23 N.m Impact energy : ≥44≥63≥70 J
Size of shanks (size across flats of hexagon length)22×108±1mm
FT160BC long air leg(long air leg)air leg length :1800mm
Propel stroke :1365mm Cylinder inner diameter :65mm
Weight≈16.9KG FY200B-FY200C grease injector
grease injector : 200ml Weight: 1.02KG

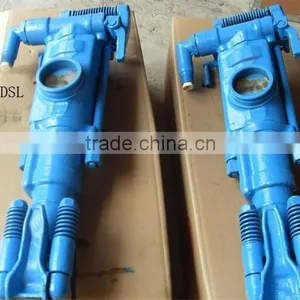

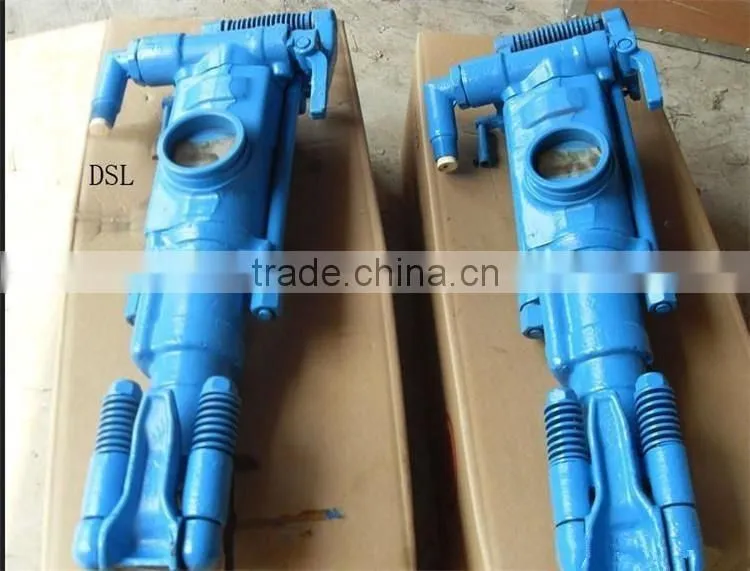

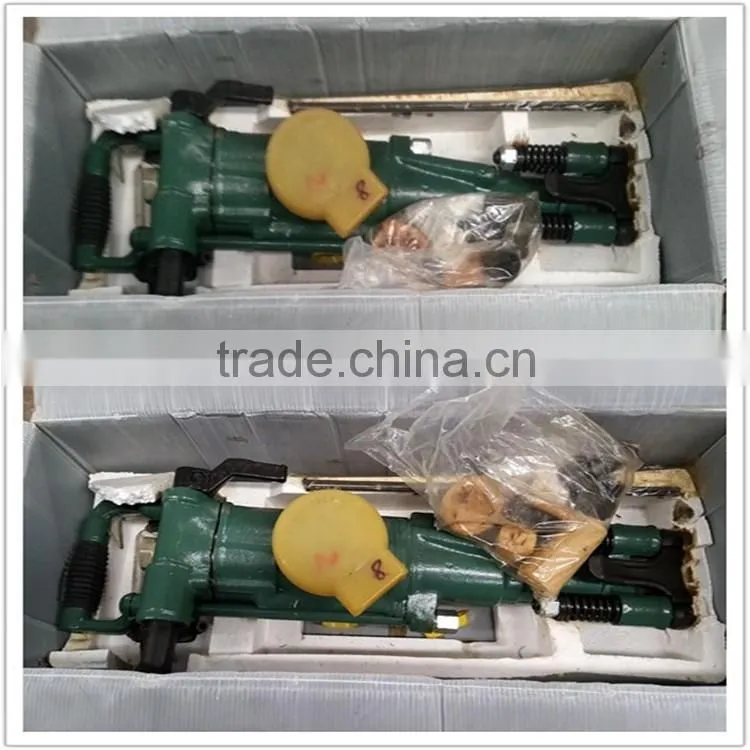

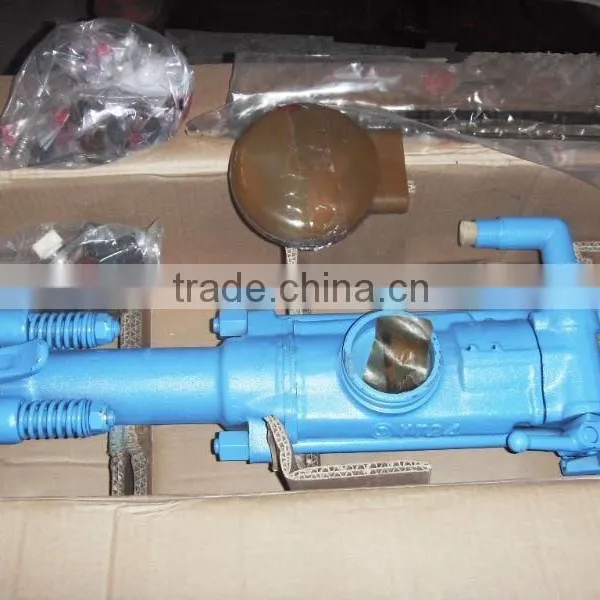

Product Picture
"Shoukai " Brand Drilling Rig exported to Australia, South Africa, Vietnam, Philippines and other countries in the world.
Hubei Shoukai Machinery Co., Ltd. is one of the biggest drilling rig manufacturer in China. Established in 2004, located in Huangjinshan Industrial Park,Huangshi city Hubei province, covering an area of over 40,000 square meters,our company has grown into a set of welding product ,machiningand assembly for the integration of large-scale ,professional drilling equipment manufacturing enterprises .Now we have more than 300 varieties of six categories, with an annual production capacity of more than 10,000 sets. "Shoukai" brand down-the-hole drilling rigs series, anchoring drilling rig series, crawler DTH drilling carriage series, pneumatic motor series, water well drilling rig series and core drilling rig series are widely applied to water conservancy, mining, quarrying, photovoltaic pile, anti-floating, city foundation piles, transportation, construction, shipbuilding and other projects. Our product features light weight, fast speed, safe, reliable, simple structure and easy to use.Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service. exported to South Africa, North America, the Middle East and Southeast Asia, gain high praise both in China and abroad.
Why to choose us?
1. Our annual output 10000 sets fully meet customers' requirements.
2. We are the member of CCMA (China Construction Machinery Association).
3. We gained the title of National High and New Technology Enterprise by The Government.
4. Our Products has obtained ISO9001:2008 management system certification
5. Our company has CNC cutting machine, CNC boring machine, CNC machine tools and various manufacturing equipment, has strong ability of new product development and manufacturing.
6.We focus on development and earn several Utility Model Patent Certificates.
7. We are always try best to answer your pre-sales and after sales questions.
Welcome dear customers choose our Shoukai drilling machinery, we hope to offer you best service and establish a good cooperation with friends all over the world!
For further information about our jack hammer YT28,contact me through contact informaton or sending me an inquriy pls.
Mobile: +86 13986600212
Tel: (86 714) 6397722
Fax: (86 714) 6397788
Thank you!
