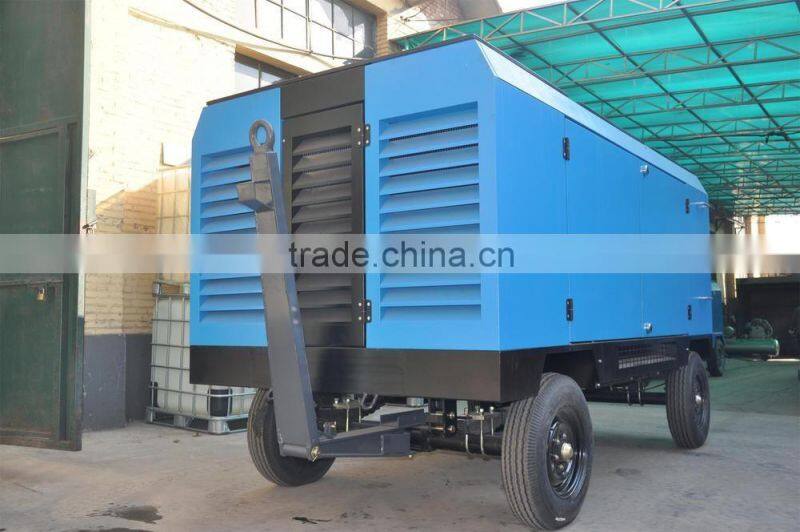

Help CenterShoukai SDP900E Portable Diesel Engine Air Compressor for Drilling Equipment
Related Products
-
YT28 Air Leg Pneumatic Jack HammerNegotiableMOQ: 1 Set -
Rock Drill YT28US$ 500 - 1,000MOQ: 1 Set
-
Shoukai Brand Diesel Engine SDP350E Screw Air CompressorNegotiableMOQ: 1 Set
-
YT28 Pneumatic Rock DrillUS$ 13,500 - 15,000MOQ: 1 Set
-
Made in China Portable Gasoline Rock Drill YN27CNegotiableMOQ: 5 Sets
Features:
1 Air end of the Diesel Air Compressor
having large diameter rotor profile guarantee high output performance and excellent efficiency, and air end connected with diesel engine through coupling and no reduction
the rotate speed is same with that of the diesel engine's

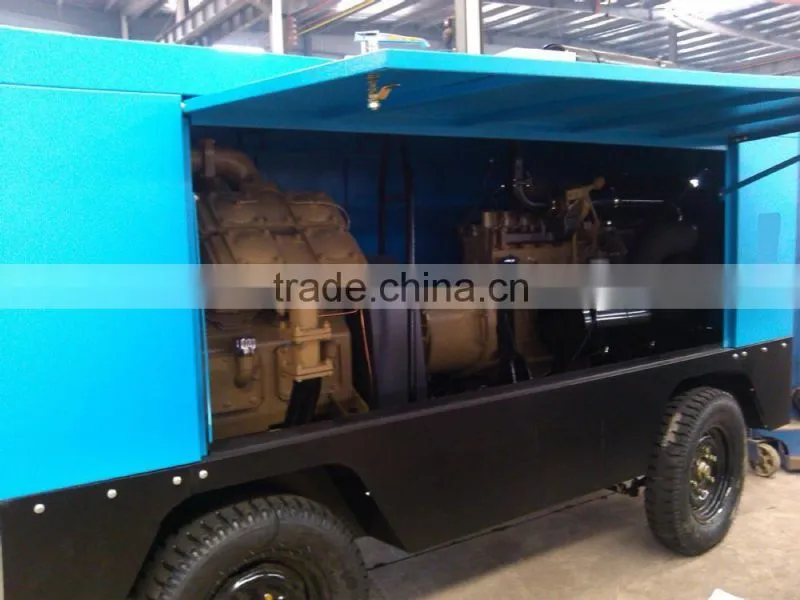

2 Diesel engine of Diesel Air Compressor
selecting the diesel engine of CUMMINS to satisfy the emission requirements of Europe;
low oil cost and noise;
high precision and reliability;
long working life
3 Good adaptability
The air compressor for sale automatically controls the air delivery of diesel engine to meet the demand of air consumption, which equal to frequency conversion control in motor power screw air compressor.
4. High strength cabinet structure complying with the sound engineering principle enables to make the noise level far lower than the national standards.
5. High-efficient inlet filter, oil filter and oil-fine separator guarantee the constant performance of the machine.
6. Applied thermo-type control valve enable the constant temperature of fluid enters the compression to exceed the service life of fluid and machine it and ensure less condensation with water in compressed air.
7. Large capacity oil receiver ensures the efficient of separator system.
Air Compressor Main Technical Parameters
Model |
SDP250E |
SDP350E |
SDP350G |
SDP420E |
SDP460G |
SDP530G |
SDP660H |
SDP750G |
SDP740H |
SDP900E |
SDP1060K |
Air delivery (M3/min) |
7 |
10 |
10 |
12 |
13 |
15 |
18 |
21 |
21 |
25 |
30 |
Air pressure (Mpa) |
0.8 |
0.8 |
1.3 |
0.8 |
1.3 |
1.3 |
1.7 |
1.3 |
1.7 |
0.8 |
2.4 |
Oil content/air (PPM) |
≤5 |
||||||||||
Air supply pipe Dia. (inch) |
1 x 1.25 |
1x 0.75 1 x 1 1x 1.5 |
1x 0.5 1 x 2 |
2 x 2 |
|||||||
Discharge temperature℃ |
≤110 |
≤130 |
≤110 |
≤130 |
≤110 |
≤130 |
|||||
Diesel Model |
CUMMINS |
||||||||||
Diesel power (KW) |
65 |
84 |
110 |
140 |
194 |
250 |
448 |
||||
diesel displacement (L) |
4.214 |
4.58 |
6.871 |
7.252 |
8.3 |
10 |
18.9 |
||||
Length (mm) |
3100 |
3870 |
4070 |
4270 |
4620 |
5300 |
5800 |
||||
Width (mm) |
1600 |
1820 |
2020 |
2020 |
2100 |
1800 |
2000 |
||||
Height (mm) |
1700 |
2010 |
2110 |
2060 |
2500 |
2500 |
2550 |
||||
Weight (Kg) |
1650 |
2000 |
2200 |
2650 |
4110 |
4350 |
6000 |
||||
