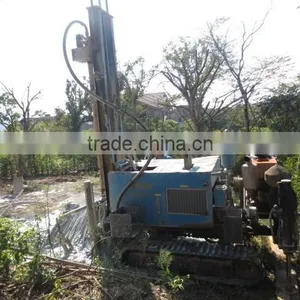

Help CenterSK150D Crawler Mounted Portable Water Well Drilling Rig
Related Products
-
Drilling Rig Water Well Depth 150M SKWW150NegotiableMOQ: 1 Set -
Truck Mounted Water Well Drilling Rig SKWW300NegotiableMOQ: 1 Set
-
Truck Mounted Water Well Drilling Rig SKWW200NegotiableMOQ: 1 Set
-
Truck Mounted Water Well Drilling Rig SKWW100NegotiableMOQ: 1 Set
-
SKDPP100 Truck Mounted Water Well Drilling RigUS$ 1 - 45,000MOQ: 1 Set

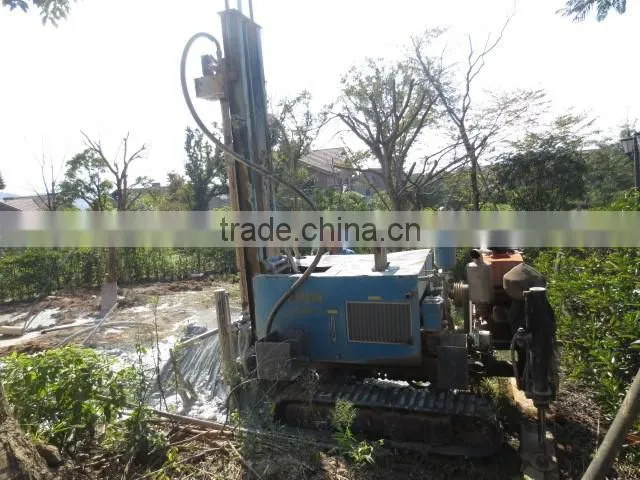

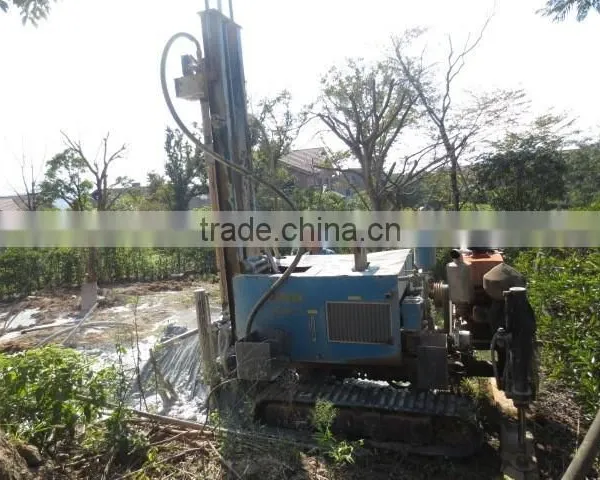

portable water well drilling rig
1, convenient up and down adjust mechanism
The up and down hydro-cylinder can adjust the angle of guide rail fast to satisfy drilling requirements from different angles.
The compensation hydro-cylinder can guarantee the guide rail to stand vertically on the ground when making vertical drilling.
2, strong power head
3, power components
reliable diesel
4, centralized control bench
The control bench far from drilling rig can protect the safety of operator.
The centralized control metal stick makes the controlling of drilling rig easy and convenience.
Advanced hydraulic system can realize drilling rig rotating and feeding fast.
5, reliable propulsion device
It adopts hydro-cylinder feeding pattern with compact structure, big lifting force and good stability
6, compact hydraulic station
This hydraulic station provides transmit media for hydraulic system.
The radiator can reduce the oil temperature efficiently to avoid hydraulic oil from changing to low viscosity or destroyed because of the very high temperature of oil.
The electric control box can protect the electric motor to operate safely.
| bore depth | 150m (diameter 115mm) |
| bore diameter | 105~203mm |
| drill rod length | 2000mm |
| drill rod diameter | 73mm, 76mm |
| working air pressure | 1.05~2.0 Mpa |
| air consumption | 15~24 cbm/min |
| adapted hammer | DHD350/360 |
| rock hardness | f = 6~12 |
| power | 44Kw / 2000rpm |
| climbing ability | 25 degree |
| traveling speed | 2 km/h |
| ground clearance | 210mm |
| leveling jack stroke | 600mm |
| system pressure | 20 Mpa |
| feeding force | 55 KN |
| lifting force | 100 KN |
| rotary speed | fast 120 rpm, slow 85 rpm |
| rotary torque | 2000 N.m |
| size | 3500 x 1770 x 2300mm |
| weight | 2800 kg |
Hubei Shoukai Machinery Co., Ltd. is one of the biggest drilling rig manufacturer in China. Established in 2004, located in Huangjinshan Industrial Park, covering an area of over 40,000 square meters, our company specialized in R&D, manufacturing and marketing drilling rigs. We now have more than 300 varieties of six categories, with an annual production capacity of more than 10,000 sets. "Shoukai" brand down-the-hole drilling rigs series, anchoring drilling rig series, crawler DTH drilling carriage series, pneumatic motor series, water well drilling rig series and core drilling rig series are widely applied to water conservancy, mining, quarrying, photovoltaic pile, anti-floating, city foundation piles, transportation, construction, shipbuilding and other projects. Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service. Our product features light weight, fast speed, safe, reliable, simple structure and easy to use, exported to South Africa, North America, the Middle East and Southeast Asia, gain high praise both in China and abroad.
Why to choose us?
1. Our annual output 10000 sets fully meet customers' requirements.
2. We are the member of CCMA (China Construction Machinery Association).
3. We gained the title of National High and New Technology Enterprise by The Government.
4. Our Products has obtained ISO9001:2008 management system certification
5. We focus on development and earn several Utility Model Patent Certificates.
6. We are always try best to answer your pre-sales and after sales questions.
Welcome dear customers choose our Shoukai drilling machinery, we hope to offer you best service and establish a good cooperation with friends all over the world!
The best thing we wish is hearing dear customers using our machines well.
Very appreciate if you could send our machines working at the site, as the above pictures. Thank you!
If there's any question about our machines, please feel free to send us emails any time.
