Specifications
1,light weight, high efficiency, multi-functional2,big torque power head & big diameter hydraulic cylinder
3,easy operation.

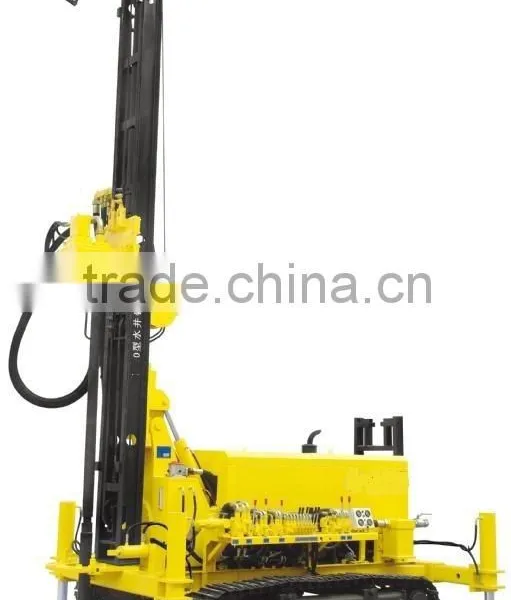

1, SKWW100 is a light weight, high efficiency and multi-functional hole drilling equipment, It can be used to drill water well, geothermal well and other type well holes.
2, This machine can drill in different stratum, The maximum depth can be 120 meters.
3, This machine adopts big torque hydraulic motor for power head and brand diesel, big diameter hydraulic cylinders for the hydraulic control system. The brand diesel is protected by 2 levels air filtration systems and also can directly use the clean air from the air compressor.
4,Unique bump set design and centralize controlled operation system is easy to maintain and convenient for machine operation.
5,The specilised engineering crawler chassis make the machine a high off-road performance, It also can be mounted on a truck to make it more maneuverability.
6, Positioner can change different positioning plates accroding to the specification of drill pipe and DTH hammer to make positioning correct and reliable.
| Weight | 6500 Kg |
| Dimension | 6000 x 2300 x 2500 mm |
| Traveling speed | 0~2.5K m/h |
| Engine model | Yucan brand YC4D08 |
| Engine power | 58 Kw / 2400 rpm |
| Ground clearance | 245 mm |
| Jack leg stroke | 460 mm |
| DTH hammer | HD65 |
| Climbing ability | 15° |
| Bore depth | 120 m |
| Working air pressure | 1.05~2.46 MPa |
| Air consumption | 16~30 m3/min |
| Drill rod specification | OD89 x L3000 mm |
| Drill bit diameter | OD115~180 mm |
| Compesation stroke | 1750 mm |
| Feeding force | 30 KN |
| Lifting force | 70 KN |
| Power head rotating speed | 50 rpm (Slow), 100 rpm (Fast) |
| Power head rotating torque | 3200 N·m |
