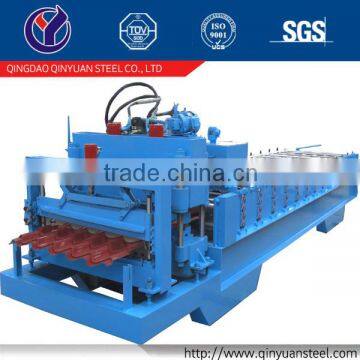

Roof Roll Forming Machine, Galvanized Roofing Sheet Roll Forming Machine
Specification:
| Technique parameters of the processing line | |||||
| (a). Suitable material to process:carbon steel,normal sheet G245 | |||||
| (b). Thickness of the raw material: 0.18mm -0.7mm; | |||||
| (c). Width of the raw material: 1200mm; | |||||
| (d). Effective width of finished product: 1000mm; | |||||
| (e). Rollers: 18stations, Speed:8-12m/min | |||||
| (f). Diameter of the shaft: 85mm; | |||||
| (g). Roller material: 45#steel | |||||
| (h). Main motor power: 7.5KW+Hydraulic cutting power 4kw | |||||
| (i). Panasonic PLC control system,other parts are all Taida brand | |||||
| (j). Electric: 3 phase/380V/50HZ; | |||||
|
(k).machine frame is solid steel frame ,not accept hollow pipes, the same with shaft,solid steel | |||||
| (l). Machine color: as per customers' requirements; | |||||
| (m). Machine size: about 9500mm*1600mm*1600mm; weight:about 6500kg |
1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 45days after deposit receipt your payment
3. Guarantee period: 18months free service/ pay service all the machine life
4. Installation and training:If buyers visit our factory and check the machine, we will teach you how to install and use the machineand also train your workers/technician face to face.Without visiting,we will send you user manual and video to teach you to install and operate.If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things
Why Choose Us?
1) Q: Do you have after sales support?
A: Yes, we are happy to supply it.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit
Qinyuan is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4)Q:What can you do if the machine broken?
A:Our machine's warranty period is 18months,if the broken parts can't repair
we can send the new parts replace the broken parts free,but you need pay the express cost yourself if after warranty period
we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address we have rich experience in transport.
6) Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
