Water well drill machines home use
The water well drill machines home use are suitable for drilling household water well, air conditioning well, garden well, which is the perfect tool to help workers engaged in drilling wells and investigation.
Features:
1, Variety power configuration: you can use the gasoline engine power, can also replace it by single-phase or three-phase electric power.
2, Wide usage range: the floor space of the machine is less than 1 square meters, and the height can be controlled in about 2.6 meters, so it can be outdoor operation, and also can be used indoors.
3, Wide practicability: can drill column hole with a spiral drill rod, can take sampling with circle tube, can also drill well with the positive and negative circulating water.
Detailed specification of the gasoline drill:

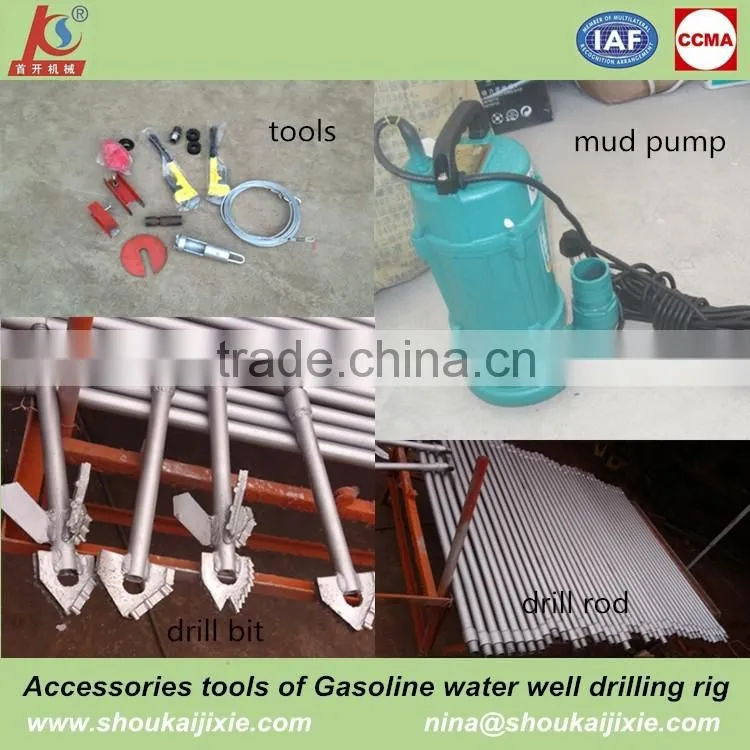

The rig is consist of gasoline engine, deceleration machine, belt, chasis, gantry rod, gantry cover, pulley, wire rope, tongs, crushing soil drill bit, sealing water hyacinth, prevent fall box, card, pumps, pipes, etc.
The rig size is 1 m * 0.7 m * 0.4 m, gantry rod is 2.6 meters tall. Total weight about 150 kg, the host header (including gasoline engine, reducer, water hyacinth and framework) weighs 50 kilograms, chassis 35 kg, gantry rod 17 kilograms, drill rod 3 kg/m, other 30 kg.
Diameter Φ28 drill rod is recommended to drill within 120 mm open hole diameter, depth of 80 meters, the deepest record is 100 meters (different soil and water pump, the effect is different). Diameter Φ34 drill rod is recommended drilling maximum 160 mm open hole diameter, the depth of 30 meters. Drill into 10 ~ 20 meters per hour.

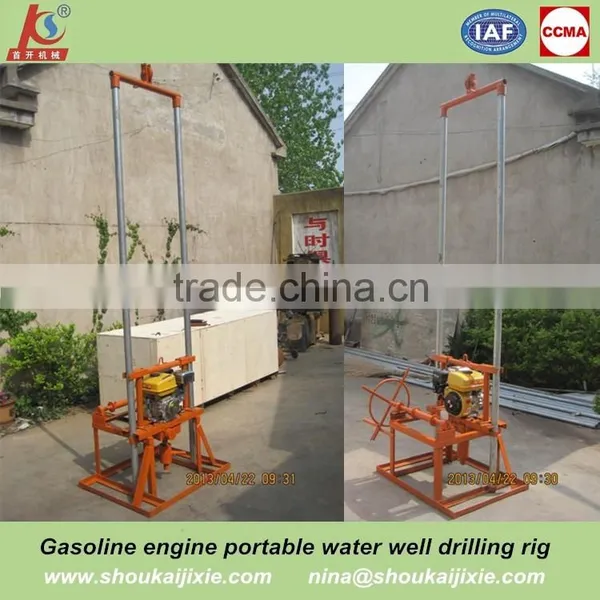

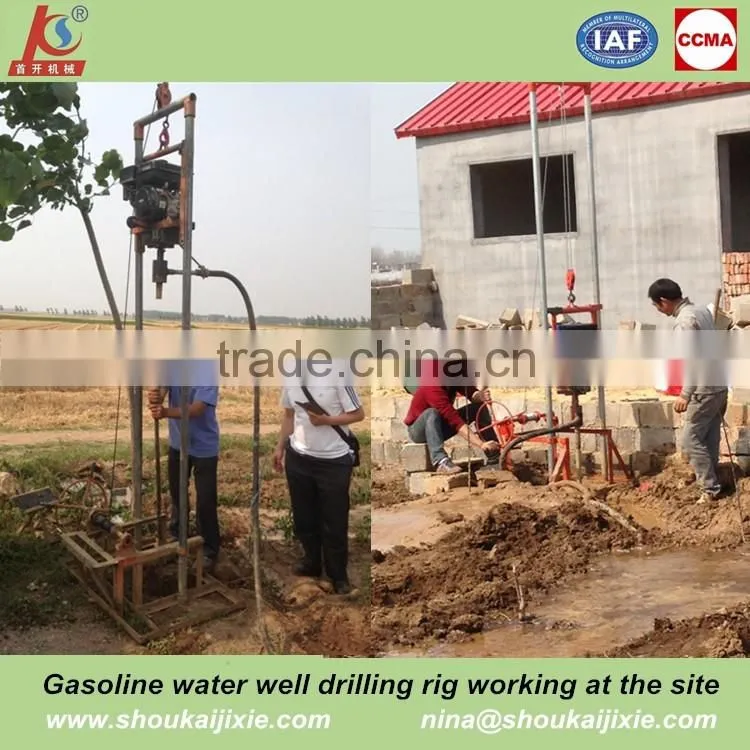

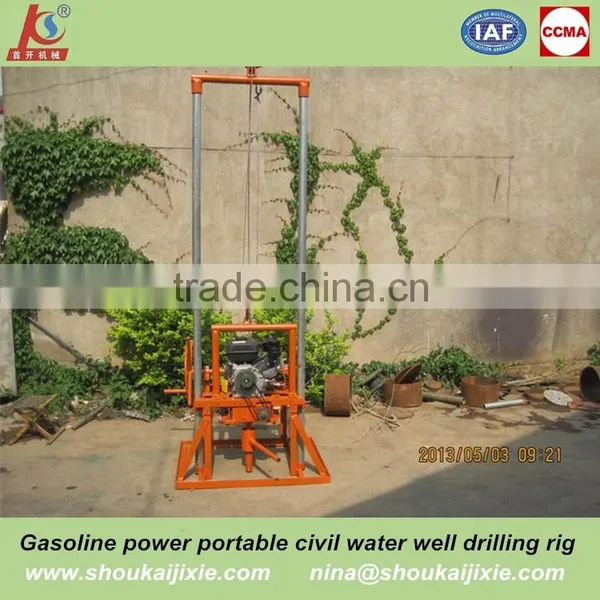

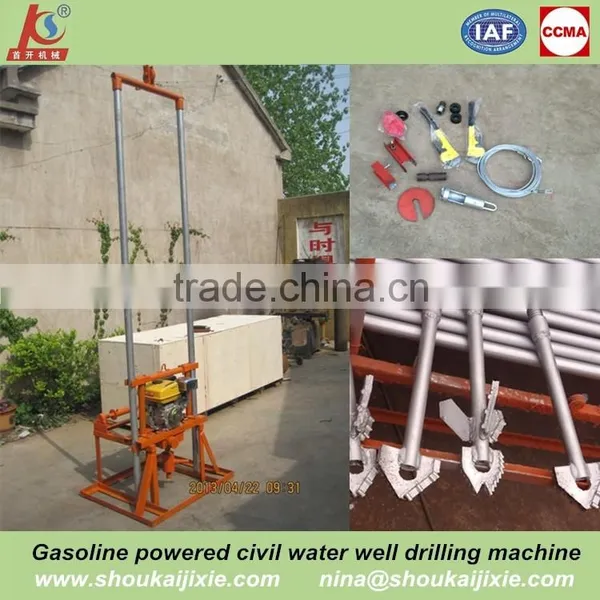

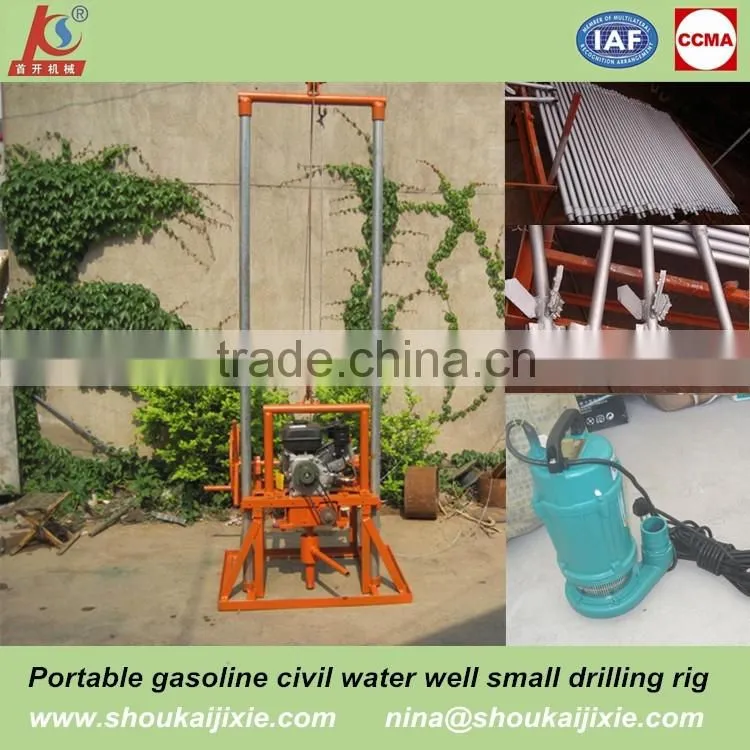

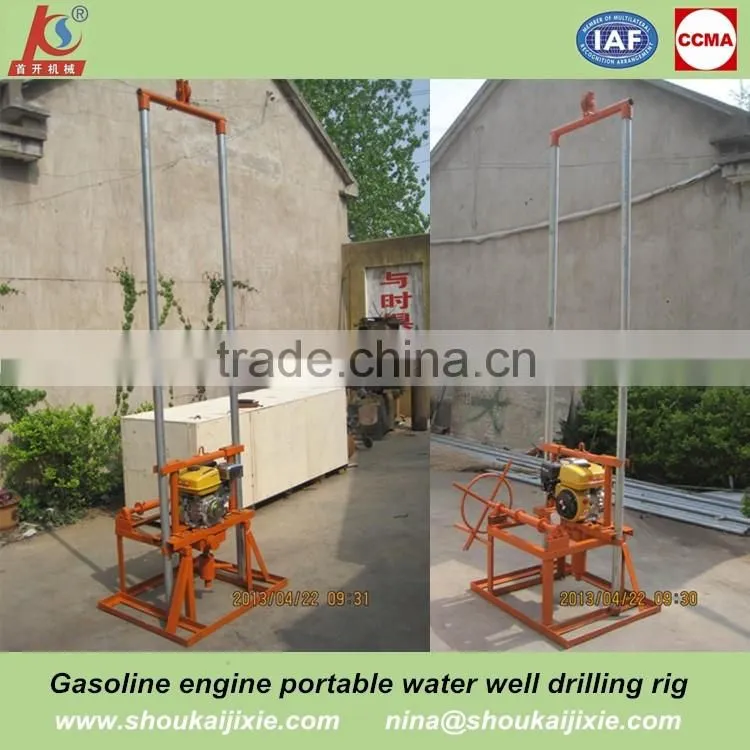

Pictures of gasoline drill for water well:
The best thing we wish is hearing dear customers using our machines well.
If there's any question about our machines, please feel free to send us emails any time.
Shoukai drilling machines have been delivered to North America, South Africa, Middle East and the Southeast Asia for several years.
We've owned good reputation from long-time customers both in domestic and abroad.
So we hope to establish good cooperation with more and more friends all over the world. We treat every customers as friends, so the best thing we wish is hearing you've received our machines well and are using our machines well.
We appreciate all your feedbacks. Thank you!

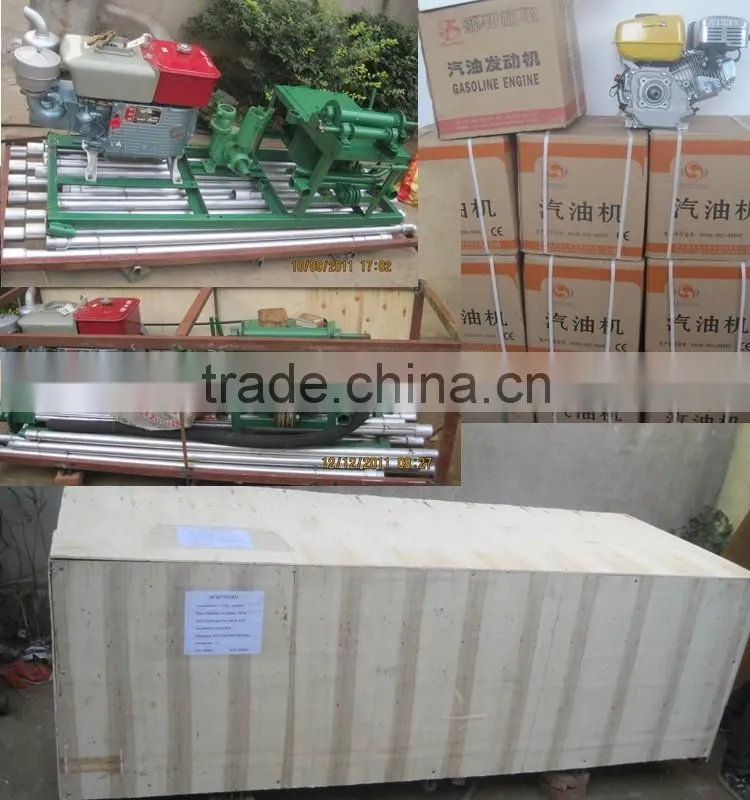

Every time, we'll take pictures before we delivery the machines for you, as the above pictures. Hope every friends see the machine status before sea shipping.
Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service.
Any question, please feel free to contact us.
We'll try our best to offer you best information at the first time we receive your emails.
Warmly welcome dear friends to visit our factory, we hope to offer you best services.
The best thing we wish is hearing dear customers using our machines well.
If there's any question about our machines, please feel free to send us emails any time.

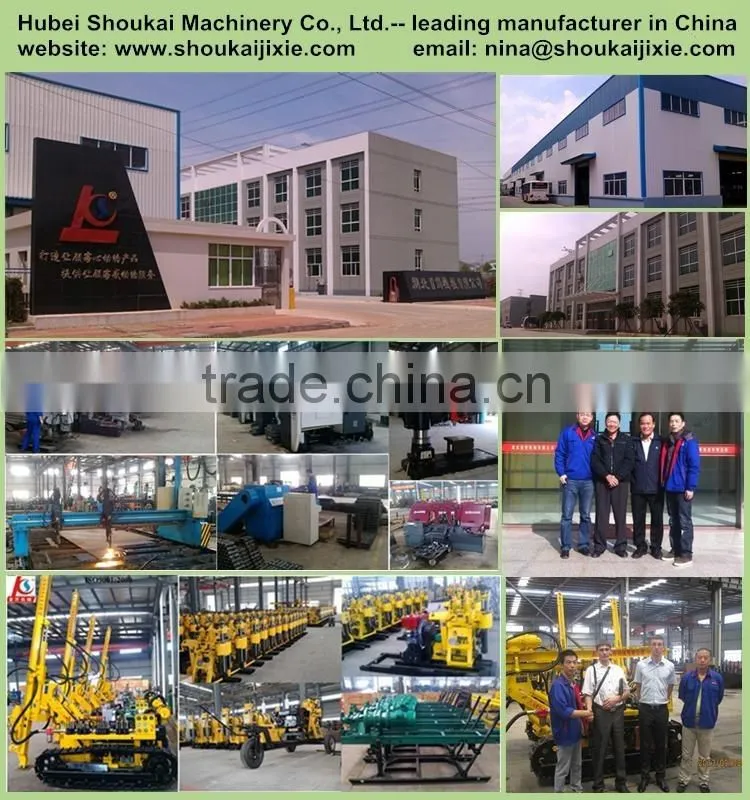

Hubei Shoukai Machinery Co., Ltd. is one of the biggest drilling rig manufacturer in China. Established in 2004, located in Huangjinshan Industrial Park, covering an area of over 40,000 square meters, our company specialized in R&D, manufacturing and marketing drilling rigs. We now have more than 300 varieties of six categories, with an annual production capacity of more than 10,000 sets. "Shoukai" brand down-the-hole drilling rigs series, anchoring drilling rig series, crawler DTH drilling carriage series, pneumatic motor series, water well drilling rig series and core drilling rig series are widely applied to water conservancy, mining, quarrying, photovoltaic pile, anti-floating, city foundation piles, transportation, construction, shipbuilding and other projects. Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service. Our product features light weight, fast speed, safe, reliable, simple structure and easy to use, exported to South Africa, North America, the Middle East and Southeast Asia, gain high praise both in China and abroad.
Why to choose us?
1. Our annual output 10000 sets fully meet customers' requirements.
2. We are the member of CCMA (China Construction Machinery Association).
3. We gained the title of National High and New Technology Enterprise by The Government.
4. Our Products has obtained ISO9001:2008 management system certification
5. We focus on development and earn several Utility Model Patent Certificates.
6. We are always try best to answer your pre-sales and after sales questions.
Welcome dear customers choose our Shoukai drilling machinery, we hope to offer you best service and establish a good cooperation with friends all over the world!
