GS-330 Automatic high speed case maker
I. Function :
1.GS - 330 automatic makeup type paper box making machine is specially develop to solve the problem of raw paper materials waste, quadrilateral Stick glue mark after printing and same problems.
2.This machine is widely used in the production of mobile phone box, shoes box, tea box, wine box, moon cake box, gift boxes and other luxury box, specially for the book cover box.
II. Features:
1. This machine adopts the most advanced technology of three boards box making in China. it use microcomputer to control the bottom plate and sides plate to make up the box, which greatly saves the cost of raw materials.

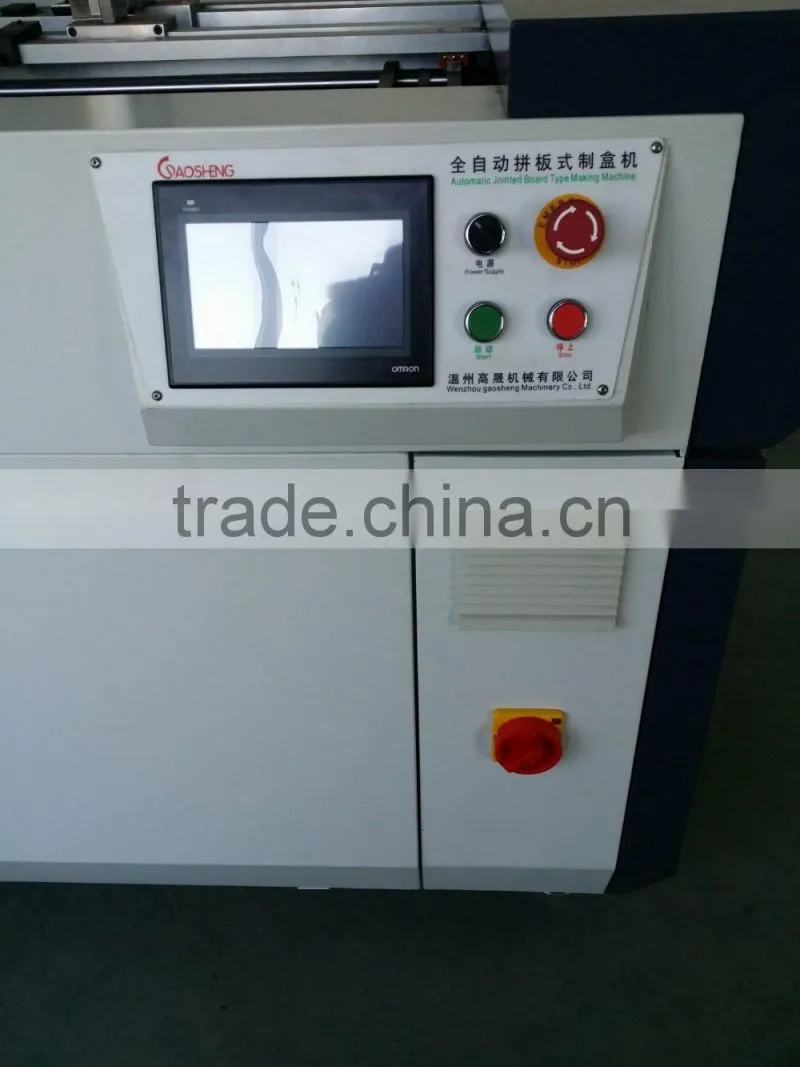

2.The machine adopts automatic Omron PLC touching screen which display data, operate and control system cleanly, and also display fault detection and alarm.
3.This machine uses the hot melt glue to make up box replace of use tape to make box, which adjust the spray adhesive length, width, starting point and ending point according to the product requirements. it is easy operate.
4.The machine adopts the unique downdraught feeding, which can feed baseboard and side plate with non-stop machine and achieve continuous production.
III. Main Technical Parameters:
Model |
GS-330 |
produce speed: |
20~25pcs/min |
Glue loader capacity: |
6L |
Air supply requirements: |
300L/min 0.8Mpa |
Glue type: |
Hot-melt glue |
Power : |
11KW/380v |
Paper thickness: |
1.5—5MM |
Max box size:(L*W*H) |
325*200*200mm |
Min box size:(L*W*H) |
60*20*30mm |
Machine size: |
2300*2100*2400mm |
Machine size: |
About 1500Kg |
Forming process:

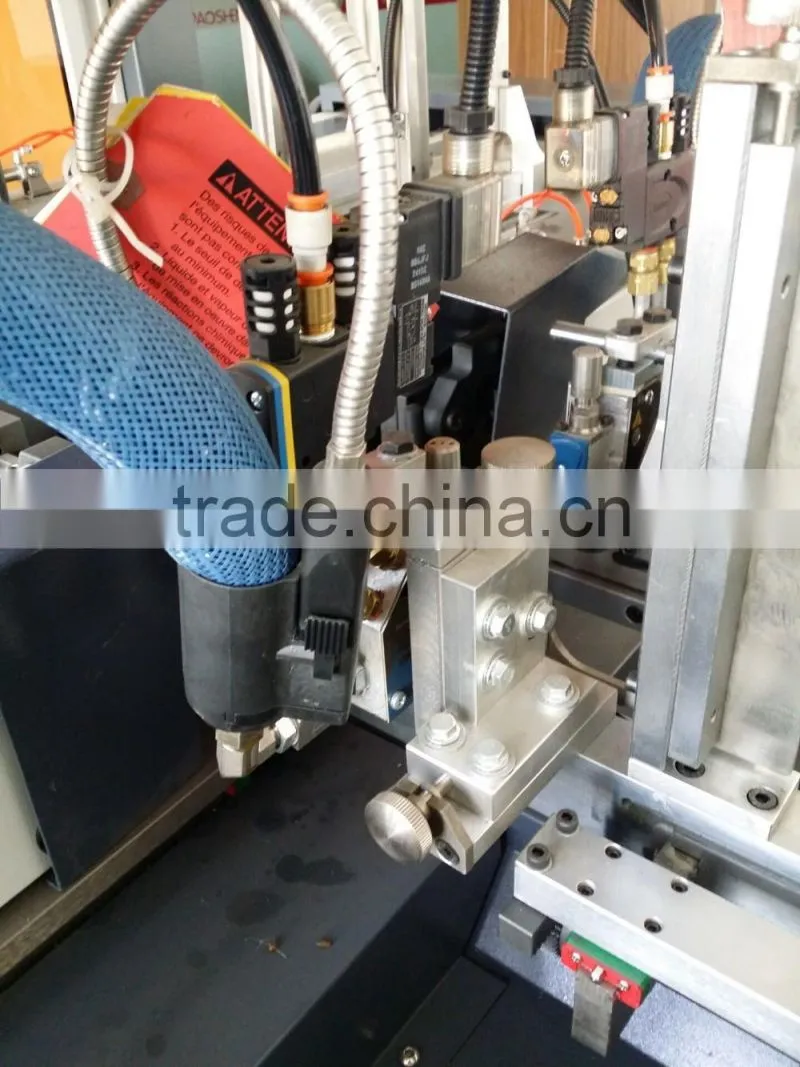

Machine details:
Products samples:
Full Automatic Splicing Board Box Making Machine(zero wast)
Exihibition:
Exhibition Machines:
FAQ:
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
we locals in bailian industrial zone, ruian, china.
welcome visit us anytime. if need help, like booking hotels , guiding for city view, pls tell me feel free.
Q:what kind of machine does your factory produce?
we are professional producer of splicing box making machine. we worked in this area for more than 10 year experience and our machines expproted to many countries and have agent there, like vietam, malaysian ....
Q: how does your factory control the products quality?
Machine quality is the most important to us. all the machine parts are famous brand over the world , like Omron PLC,SICK (Japan) Photocell eye ,Omron (Japan)/SCHNEIDER(France) Electrical components ,Yakaswa (Japan)Servo motor, AIRTAC(Taiwan)Pneumatic Cylinder, Nordson (USA) Glue device, Silver (Taiwan) Guiding rail. we improve the machine structure according to customer request. and our machine box making precision can be +-0.2mm. we gets good reputation from customers.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube. Q: Can you send me the video to show how the machine works?
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: How can I pay my order?/what is the payment and delivery time?
A: We accept T/T, Western Union, Alibaba Trade Assurance payments. and can delivery in 10 days.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Q: how is your after-service?
A:our machine guarantee is one year after customer gets machine in their factory.
engineer can send to your factory to install machines and train your workers.
we will solve problems in 24 hours for you.
If More details,pls contact :
Ellen Qiu:
Skype: inthesky1241
Whatsapp:+86-15057324868
Tel. : +86-577-15356283017
Website:
Add.: Bailian Industrial Zone,Jinhu Street, Ruian , Zhejinag Province
