Specifications
biomass briquette press machine1.energy-saving,low price
2.easy maintenace
3.long working life
4.high output
Factory direct price wood dry powder biomass briquette press machine
Brief introduction for biomass briquette press machine :
Ball press machine is mainly used for pressing hard molding powder material, the feature is big pressure, host revolution is adjustable, equipped with screw conveying device.
The ball press machine is suitable for light materials like coke powder, oxidation iron sheet, dust, coal slime,
all kinds of metallurgy powder, Sponge iron carbon products , has obvious press effect.
Main usage of biomass briquette press machine :
1. Mainly used for : pulverized coal molding, dry powder molding, Desulfurization gypsum molding, coke powder molding, Scrap iron and various metal mineral powder molding etc.
2. Suitable material: coal powder, coking coal , aluminite powder, scrap iron, oxidation iron sheet, carbon powder,mineral waste residue, gypsum, tailings, sludge, kaoline, activated carbon, coke breeze and all kinds of powder, powder lot, waste material ,waste residue. Widely used in refractory material, power plants, metallurgy, chemical industry, energy, transportation, heating, etc. The material after pressing is energy-saving and environmental protection, easy to transport, increase the using ratio of waste materials, has good economic benefits and social benefits.
Parameter of biomass briquette press machine :
Model |
TYYQ300 |
TYYQ400 |
TYYQ500 |
TYYQ600 |
TYYQ700 |
TYYQ800 |
TYYQ900 |
Main Power(kw) |
7.5 |
15 |
22 |
30 |
45 |
75 |
95 |
Expression Roll Diameter(mm) |
290 |
360 |
450 |
500 |
650 |
750 |
850 |
Expression Roll Span(mm) |
200 |
240 |
300 |
300 |
300 |
360 |
360 |
Output(t/h) |
2 |
3 |
5 |
10 |
15 |
20 |
25 |
Finished size(mm) |
10-30 |
10-30 |
10-40 |
10-50 |
10-50 |
10-50 |
10-50 |
Dimension(m) |
1.8*1.2*1.6 |
1.8*1.5*1.8 |
2.1*1.5*1.9 |
3*2.2*2.4 |
3*2.5*2.1 |
3*2.7*2.3 |
3*2.8*2.5 |
Note: The above electricity is 3 phase, 380V 50HZ, Special requirement can be customed. | |||||||
Using Area: Coal, charcoal powder, FGD gypsum, Fluorite powder, Iron ore, Wet bulb aluminum ash powder. (8-12% moisture requirement) | |||||||

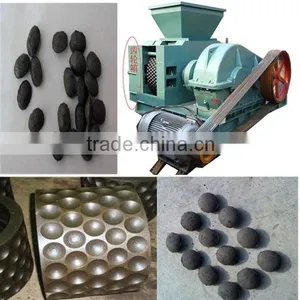

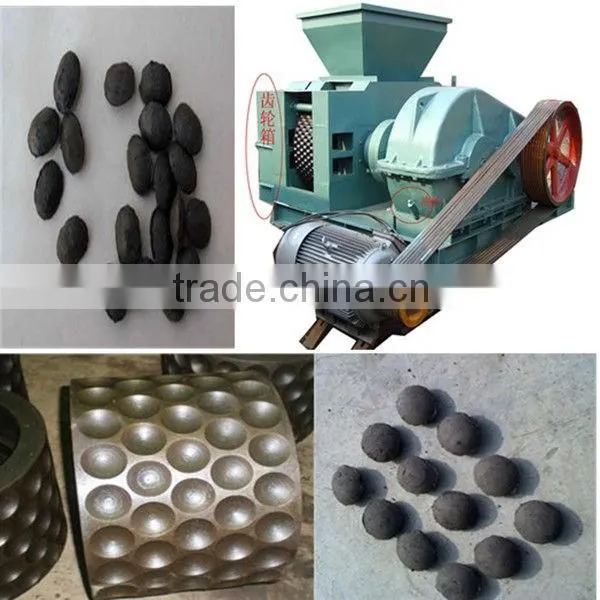

Final products:
Usage:
Zhengzhou Tianyuan Environmental Protection Machinery Co., Ltd.
Professional manufacturer of woodworking machine, including wood powder machine, wood crusher, dryer machine, wood chipper, wood shaving machine, wood pellet machine, briquette press machine , ball briquette press machine etc. Contact us freely when you need.
