Home > Products > New Products > 5-2000L Hydraulic lifting top homogenizer vacuum cosmetic emulsifier mixer
5-2000L Hydraulic lifting top homogenizer vacuum cosmetic emulsifier mixer
- 30 Set / Sets per Month
- Shanghai
- T/T
Product Details
Condition: | New | Mixer Type: | Homogenizer | Product Type: | Other, cosmetic,facial cream |
Application: | Liquid with Suspended Solids | Additional Capabilities: | Milling | Place of Origin: | Jiangsu, China |
Brand Name: | DZAE | Model Number: | DZJR-2000L | Max. Loading Capacity: | 1600L |
Voltage: | 220V/380V | Power(W): | 7.5KW | Dimension(L*W*H): | 4800*4400*(3300-4800)mm |
Certification: | CE,ISO9001 | Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

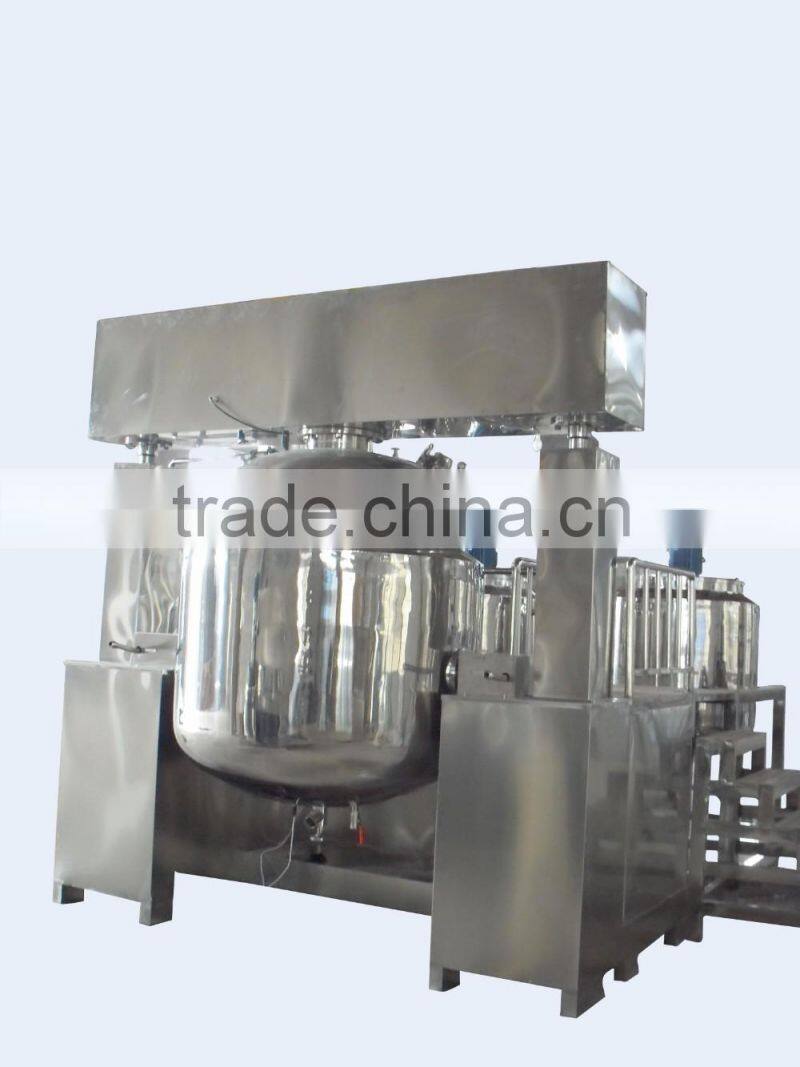

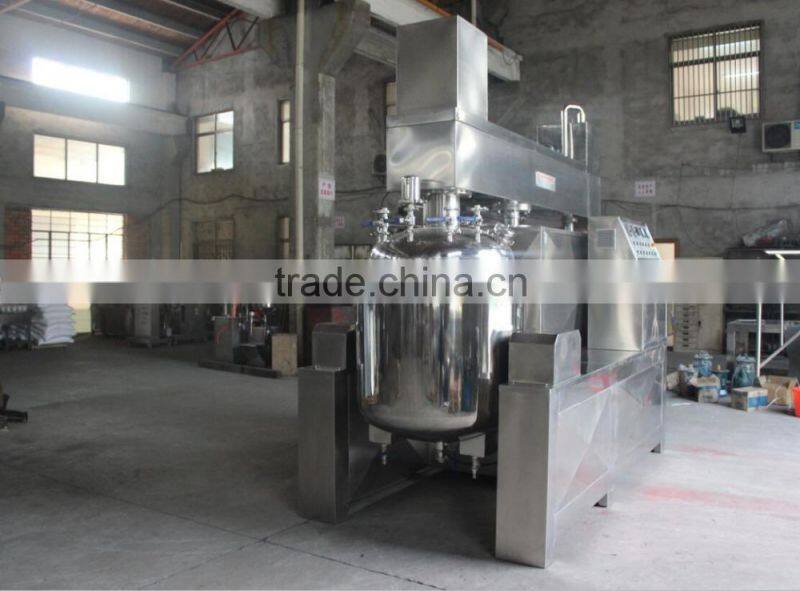

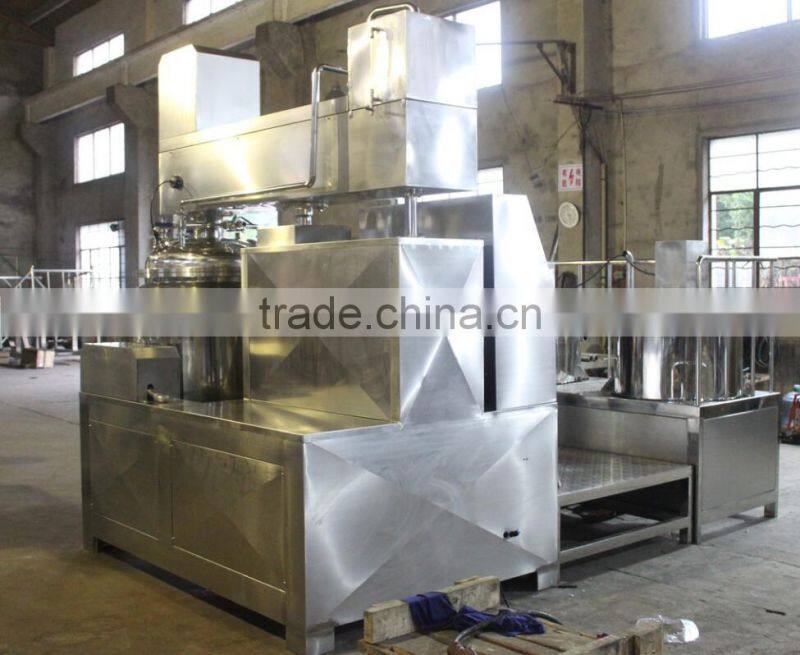

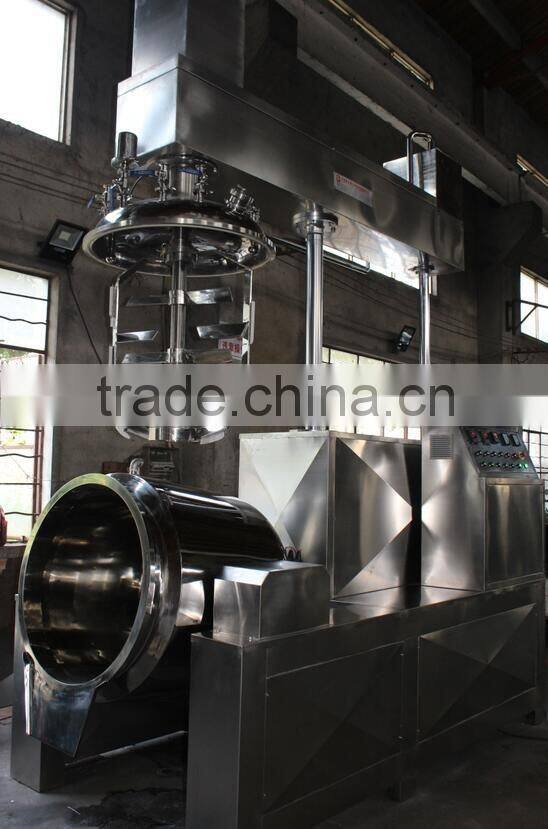

5-2000L Hydraulic lifting top homogenizer vacuum cosmetic emulsifier mixer
The 2000L vacuum emulsifying mixer includes Main Tank,oil and water pot.Vacuum System,Stirring System, Homogenizer, Electric Lifting System,Electric Control Cabinet, Body Frame,Pipeline &Valves etc.
1.Mixing oil and water phases materials in high speed to get perfect emulsion product of good quality.
2.Machine consists of vacuum-resistant vessel with jacket for heating and cooling. Equipped with high speed homogenizer, scraping agitator, vacuum pump, and hydraulic pump for lifting, heating & cooling system.
3.With vacuum pump to take the air bubbles out of mixed product, and extend the time of storage.
4.Scraping unit is with moveable teflon scrapers to scrape off the materials on the tank wall and the anchor to move the materials to the center area to get better blending and mixing. The teflon scrapers are maintained manually and easily without any tool.
5.Our vacuum emulsifying equipment equipped with heating & cooling system which simplifies the processing. Within this same equipment, you can do from heating-melting-emulsifying-air bubble reduction(by vacuum)-cooling without changing vessels, it saves lot of labor and time for your production.
6.All contacted parts of equipments are SUS316L,the product homogenized in vacuum and close vessel can be sanitary and high quality.
7.The measuring of raw materials, the recording of temperature for heating, melting, emulsifying, cooling, and the change of mixing speed, and the vacuum suction can be controlled.
Cosmetic: face cream, hand cream, sunscreen cream, eyelash to cream, hair gel, lotion, bath shampoo,hair gel, nail polish, hair conditioner etc.
Pharmaceutical industry: ointments, syrup, nutrition, bio-products, paste of pharmaceutical etc.
Daily use industry: toothpaste, detergents, shoes polish, soap, fragrance etc
Food industry: sauces, jam, chocolate, butter, vegetable proteins, animal proteins etc.
Chemical industry: Painting, pigment, dyes, paints, adhesives detergents.
Lifting,Mixing,Homogenizing,Dispersing,Heating,Cooling,Dosing,Vacuum,Pressure,Filter,Condensation,Distillation,Constant temperature control and so on.
Packing: wooden cases or container for sea freight or accoding to the clients requirements.
Shipping: European Countries: 22-28 days
United States: East --13-16 days, West--21-28 days
Brazil: 30-40 days
Russia: 36 days
Asia Countries: 3-5days
1. The equipment can be customized according to customer's material, in order to meet the needs of the process. Like high viscosity , strengthen the function of homogeneous, heat sensitive materials etc.
2. Interface way can choose (hoop, thread, and flange).
3. Material contact parts can choose SS 304, SS 316, SS316L, 2Cr13,9Cr18 etc.
4. Sealing material: Standard rubber ring is silicone rubber, according to the media requests; you can choose fluorine rubber, EPDM, PTFE
5. Frequency speed regulation, non frequency speed regulation, explosion proof design, non explosion proof design.
6. According to customer's workshop height, our engineers will be optimized to facilitate customer needs.
Warmly welcome to our factory to get more informations about our machines!
Factory address: Changdong Industrial Park, Chang'an Community, Yanqiao Street, Huishan Dist., Wuxi, Jiangsu, China (Mainland)
