DZXJ 100L Multifunctional Vacuum Planetary Mixer

Specifications

Vacuum Planetary Mixer
1.Vacuumized, heated, cooled
2.Shear, mix, disperse
3.Hydraulically move

Application:

The machine is a specially designed for silicone sealant high speed powerful mixing equipment, mixing blades swaps can meet the glue process of acid and neutral two sealant, also applies to the viscosity (10000-10000000) of CPS products in the solid liquid, liquid - liquid phase materials mixing, reaction, dissolve, disperse vacuum degassing process; making suitable adhesives, silicone sealant, acrylic glue, packaging adhesive, ointment and paste material, and additives.

The working principle and structure:

This machine adopts the unique structure of efficient mixing, feeding barrel fixed; the middle stirring paddle with scraping slow movement to push the middle push, to the bottom of the material barrel wall material, on both sides for the high-speed dispersion mixer, the materials are quickly broken, scattered, the speed can be FM transmission, from the material with high the quick movement, by the strong shear and kneading, materials can be mixed fully, won't appear mixed dead center, equipment with mechanical seal, vacuum removing air bubbles.

This machine is composed of a high speed motor, cycloidal reducer, gear box, an upright post, a bearing seat, an upper cover and a lower barrel, bottom plate, electric control cabinet, a hydraulic station multi part, a transmission box in the column within the cylinder drive can be up and down movement; blanking bucket is arranged under the wheels can be hand free mobile.



The main technical data:

1: 380V three-phase AC power supply; 50Hz;

2 design volume: 100L

The 3 main material: part in contact with the materials for stainless steel SUS304.

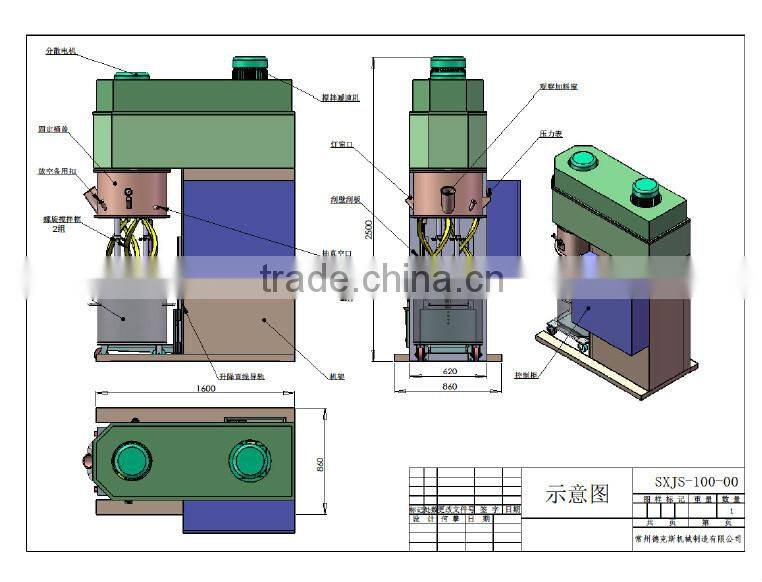

The 4 frame structure form: Longmen style double column hydraulic lifting structure, the upper in-line transmission box, a built-in type bearing seat, cable cover, lower bucket, bucket positioner and a base.

5 low-speed stirring form: mountain character with two scraping two scraping bottom device, material: SUS304 scraper for 6mm ptfe.

6 low power and configuration: Motor Power: 11Kw; supporting BLD15 type cycloid reducer; the stirring shaft diameter Phi 70, leaching stone synthetic wear type mechanical seal, heavy type double bearing, a stirring shaft speed of 56 rpm.

7 high speed mixing form: the length of the shaft structure, the lower part of scattered disc, in the push type + disc type, cross installation.

8 high speed power and configuration: Motor Power: 23 long axis Kw/1450 turn, C type belt wheel transmission, the stirring shaft diameter Phi 70, leaching stone synthetic wear type high speed mechanical seal, dual heavy-duty bearings, a stirring shaft speed is 10 ~ 1450 rpm.

The 9 cover structure: inclined cover type, sealing and barrel into a dovetail groove type with D shape special NBR rubber ring.

The 10 cover lifting way: double column hydraulic, lifting stroke: 980mm, under the control of travel set.

Vacuum 11 barrel: -0.095Mpa (mechanical seal and D shaped rubber ring to ensure the vacuum degree).

The 12 cover opening Description: with 300 quick open feeding mouth; G1 inch wire liquid inlet; G1 "outside the wire for vacuum pumping (after); G6 special wire nitrogen export; G6 special wire vent; DN125 observation mouth (2), M27 x 2 digital display temperature; M14 * 1.5 vacuum table export.

13 barrel Description: net size 600 * 600, barrel flange, the wall of the inner barrel and a barrel bottom car large vertical lathe processing after the fine polishing processing, inside the barrel material: SUS304, increase the cooling jacket, built-in seamless diversion device, the water inlet and outlet interface for the G1 inch wire interface, material: Q235 - A; G3 inch no buildup a feed opening (flange connection, so as to replace the joint), the bottom 4 6 inch globe heavy-duty casters, at the bottom of the middle belt bucket into the positioning.

14 electrical control cabinet Description: built in two frequency converters, the setting of the total switch; control: the low speed motor and reducer oil pump motor (synchronous), high speed dispersing motor, hydraulic station motor, electromagnetic valve; the low-pressure type mirror port observation lamp; lifting stroke control, cabinet with air cooling device, current meter, voltage meter, stop; another with a group of 3Kw motor control (controllable vacuum pump); sequence of operations further description.

15 safety interlock Description: A. capping drop in place, to start mixing. B. stirring work condition, capping cannot rise. C. bucket is not in place, the cover can not be reduced. D. cover lifting by adjustable stroke control, automatic stop. E. mixer, control cabinet and a hydraulic station is provided with a grounding screw, so that users reliable grounding.

16 host size: 1900 x 1250 x 2750 host: (static); hydraulic station: 500 x 450 x 800; electric control cabinet: 850 x 450 x 1600. 20 weight: 3200Kg.

17 other Description: each mixer two cylinder, all parts in contact with the material are made of stainless steel SUS304. (not including the vacuum pump)

18 random accessories Description: including sixteenth parts, the use of manuals, certificates of conformity and delivery list.

19 delivery and transport: the signing of the contract payment to the account after the equipment within 45 days of completion, the supplier for automotive applications, delta shipping by the seller to bear.

20 method of payment: 30% deposit, a one-time payment of 60% before delivery (shipment to factory inspection), within 90 days to pay the balance in the delivery date.

21 after-sales service: the supplier is responsible to send technicians on-site equipment debugging (domestic), equipment use, maintenance and maintenance training, (accommodation to be born by the buyer), equipment warranty for 1 years, lifelong
