Home > Products > Leaf filters > NBY High Efficiency Plate Type Hermetic Filter
NBY High Efficiency Plate Type Hermetic Filter
- 100 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Juice Filter Bag Filter Machine for Fruit Juice
- Industry automatic horizontal fruit juice filter and separating machine
- Newest professional automatic horizontal fruit juice filter machine
- Trade assurance good quality automatic industrial juice filter machine
- Hot sale large capacity industry using automatic fruit juice filter machine
- diatomaceous earth beer filter/disc filter
Product Details
Condition: | New | Place of Origin: | Shanghai, China | Brand Name: | Runlan |
Model Number: | RLNYB-2 | Processing Types: | Water | Voltage: | 0.5MPa |
Power(W): | 2.2KW | Weight: | 300KG | Dimension(L*W*H): | 400*400*1550 |
Certification: | The Quality management System | Warranty: | 1year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

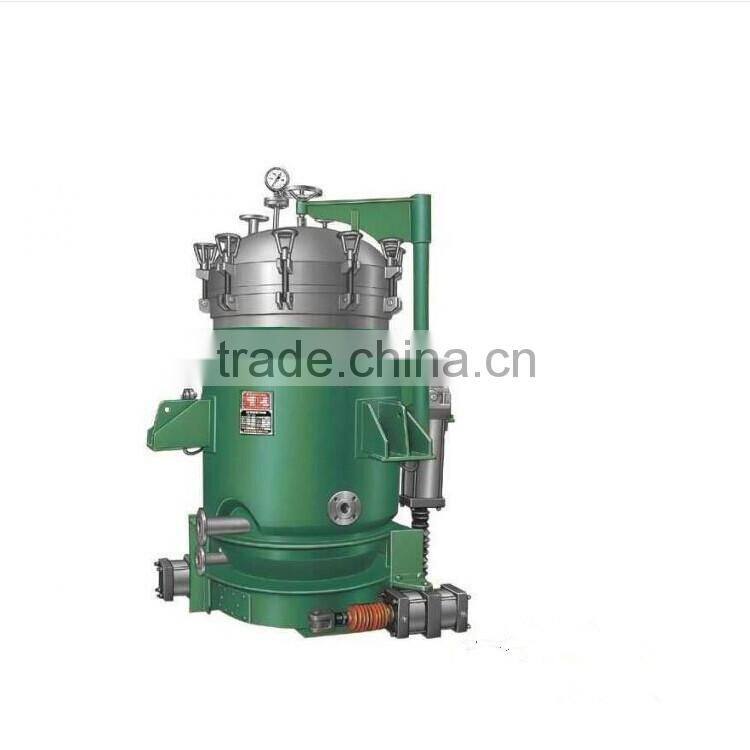

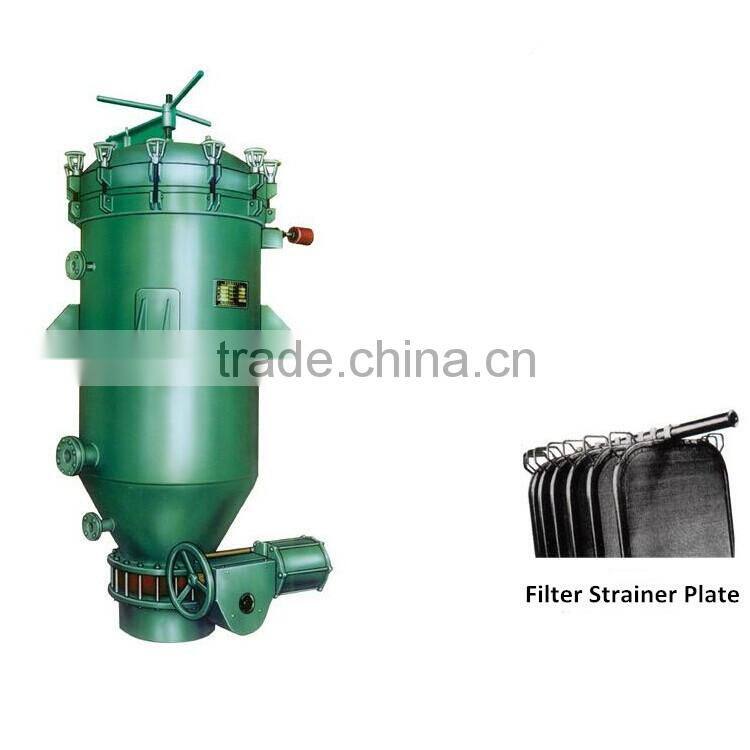

NBY High Efficiency Plate Type Hermetic Filter
Product brief introduction
NBY High Efficiency Plate Type Hermetic Filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum,painting,foodstuff,pharmace utical and many other industries . Since this equipment has many advantages such as unique structure,compact volume, high filter efficiency fineness of filtered liquor , no material wastage , without consumption of filter paper, filter cloth. It’s only consuming small quantity of filter aid. It can be conveniently maintained, cleaned and operated at very low cost.
Range of application
Oil industry: crude oil, bleached soil, hydrided oil, radonized oil, stearin,fatty acid,etc.
Petroleum chenical products: diesel oil, lubricating oil, paraffin wax, mineral oil, etc.
Beverage: beer,juice, wine, milk,etc.
Organic chemical products: various organic aid, alcohol, benzene,aldehyde,etc.
Paint: resin,vanish,dye,lacquer,etc.
Inorganic chemical products: bromine water, potassium cyanide, fluorite,etc.
Foodstuff: gelartin, vinegar, starch, syrup, sugar water, etc.
Pharmaceutical products: hydrogen peroxide solution, vitamin,etc.
Mineral products: fine coal, cinder, etc.
Others: air,depuration of water, etc.
Main Technological Parameters:
Model |
Filtration area
|
Fiter cake Volume(L) |
Treatment Capacity |
Work pessure(MPa) |
Work Temperature (℃) |
Machine Volune (L) |
Machine Weight (kg) | |||
oil |
Resin |
Bevetage | Rated Pressure | Max Pressure | ||||||
NYB-2 | 2 | 30 | 0.4-0.6 | 1-1.5 | 1-3 |
0.1-0.4 |
0.5 |
≤150 | 120 | 300 |
NYB-4 | 4 | 60 | 0.5-1.2 | 2-3 | 2-5 | 250 | 400 | |||
NYB-7 | 7 | 105 | 1-1.8 | 3-6 | 4-7 | 420 | 600 | |||
NYB-10 | 10 | 150 | 1.6-3 | 5-8 | 6-9 | 800 | 900 | |||
NYB-12 | 12 | 240 | 2-4 | 6-9 | 8-11 | 1000 | 1100 | |||
NYB-15 | 1 5 | 300 | 3-5 | 7-12 | 10-13 | 1300 | 1300 | |||
NYB-20 | 20 | 400 | 4-6 | 9-15 | 12-17 | 1680 | 1700 | |||
NYB-25 | 25 | 500 | 5-7 | 12-19 | 16-21 | 1900 | 2000 | |||
NYB-30 | 30 | 600 | 6-8 | 14-23 | 19-25 | 2300 | 2500 | |||
NYB-36 | 36 | 720 | 7-9 | 16-27 | 23-31 | 2650 | 3000 | |||
NYB-40 | 40 | 800 | 8-11 | 21-34 | 30-38 | 2900 | 3200 | |||
NYB-45 | 45 | 900 | 9-13 | 24-39 | 36-44 | 3200 | 3500 | |||
NYB-52 | 52 | 1040 | 10-15 | 27-45 | 42-51 | 3800 | 4000 | |||
NYB-60 | 60 | 1200 | 11-17 | 30-32 | 48-60 | 4500 | 4500 | |||
NYB-70 | 70 | 1400 | 12-19 | 36-60 | 56-68 | 5800 | 5500 | |||
NYB-80 | 80 | 1600 | 13-21 | 40-68 | 64-78 | 7200 | 6000 | |||
NYB-90 | 90 | 1800 | 14-23 | 43-72 | 68-82 | 7700 | 6500 |

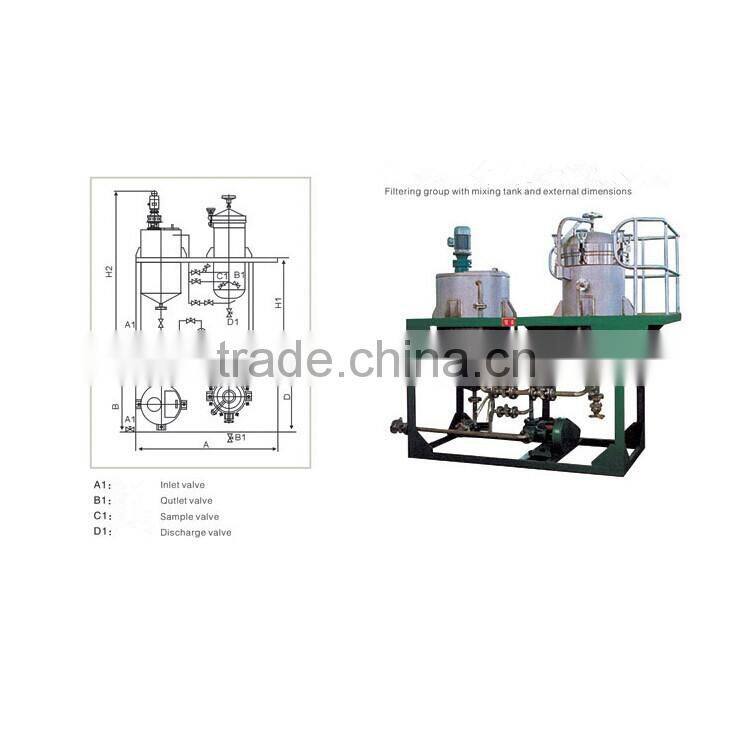

Outline form and Assembly size of Filter:
Model | Shell diameter | Spece between Filter Cake | Inlet/outlet Caliber | Overflow Port | Discharge Port | Height | Floor Space |
NYB-2 | Φ400 | 50 | DN25 | DN25 | DN150 | 1550 | 620×600
|
NYB-4 | Φ500 | 50 | DN40 | DN25 | DN200 | 1800 | 770×740 |
NYB-7 | Φ600 | 50 | DN40 | DN25 | DN250 | 2200 | 1310×1000 |
NYB-10 | Φ800 | 70 | DN50 | DN25 | DN300 | 2400 | 1510×1060 |
NYB-12 | Φ900 | 70 | DN50 | DN40 | DN400 | 2500 | 1610×1250 |
NYB-15 | Φ1000 | 70 | DN50 | DN40 | DN400 | 2650 | 1710×1350 |
NYB-20 | Φ1000 | 70 | DN50 | DN40 | DN400 | 2950 | 1710×1350 |
NYB-25 | Φ1100 | 70 | DN50 | DN40 | DN500 | 3020 | 1810×1430 |
NYB-30 | Φ1200 | 70 | DN50 | DN40 | DN500 | 3150 | 2030×1550 |
NYB-36 | Φ1200 | 70 | DN65 | DN50 | DN500 | 3250 | 2030×1550 |
NYB-40 | Φ1300 | 70 | DN65 | DN50 | DN600 | 3350 | 2130×1560 |
NYB-45 | Φ1300 | 70 | DN65 | DN50 | DN600 | 3550 | 2130×1560 |
NYB-52 | Φ1400 | 75 | DN80 | DN50 | DN600 | 3670 | 2230×1650 |
NYB-60 | Φ1500 | 75 | DN80 | DN50 | DN600 | 3810 | 2310×1750 |
NYB-70 | Φ1600 | 80 | DN80 | DN50 | DN600 | 4500 | 3050×1950 |
NYB-80 | Φ1750 | 80 | DN80 | DN50 | DN600 | 4500 | 3210×2100 |
NYB-90 | Φ1850 | 80 | DN80 | DN50 | DN600 | 4650 | 3300×2200 |
