Professional sand filters latest stainless steel commercial water filters with CE certificate

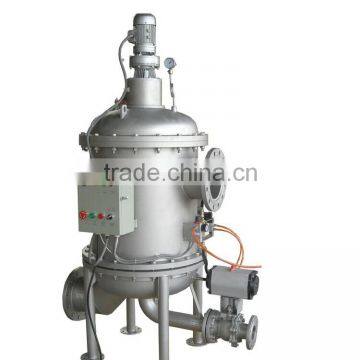

DF X series exttrnal scraping self-cleaning filter (DF filter for short), automatically removes particles from the filter element surface by the efficiently mechanical scraping, can work on-line continuously, consumes no disposal filter media, requires no frequent manual cleaning, is capable of the filtration for both normal and high viscous liquids.
DF filter : X series, the motor drives the scraper to rotate and remove the particles on the filter element external surface; the X series are good for the high viscous liquid.
The conventional manual filter gets frequently clogged when filtering viscous liquid or removing viscous contaminant. so that customer has to accept the larger filter and clean the filter frequently. It takes expensive investment, requires hard maintenance and discharges lot of waste liquid. DF filter is the ideal solution for such problems, always keep the filter element cleaning, and discharges the liquid with high solid content and result in less valuable liquid loss. With its obvious advantage, DF filter is taking the places of conventional ones such as the vibrating screens, bag filters, basket filters and some back-flushing filters, etc..
Applicable Industries and Liquids
| Applibable industries | Water treatment, pulp and paper, petro-chemical, bio-pharmaceutical, coatings, inks, oil refinary, food and beverage |
| Typical applicable liquid | Wax, coal oil, monomer, polyer, water, citric acid, fermentation broth, protein, soap, wet end additive, coating, ink, adhesive, rubber, ethanol, chocolate, confectionary, juice, coolant, etc |
| Filtration function | Remove large particles, fixed-size screen, purify liquids, protect critical equipment |
| Filtration type | Mechanically scraping filter, automatic continuously online filtration |
Main Specification
| Sub-series | A series, X series, M series |
| Models |
X11, X22, X55,X71, X100
|
| Filter Element | V-SLOT series, POR series |
| Rating ( μm) | 25-3000 |
| Filter Area (cm 2 ) | 720~12300 |
| Housing Material | 304,316L |
| Applicable Viscosity (cp) | 1-800000 |
| Temperature (°C) | 200 |
| Design Pressure (MPa) | 1.0 |
| Cleaning Start Mode | Time or Pressure Drop |
