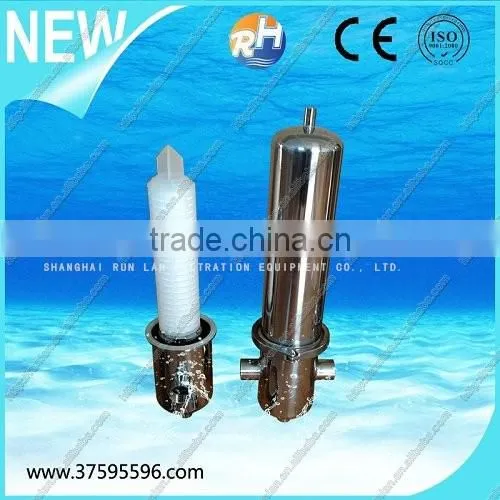

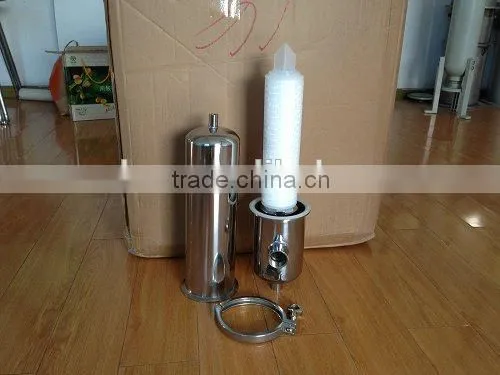

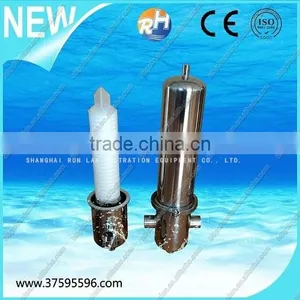

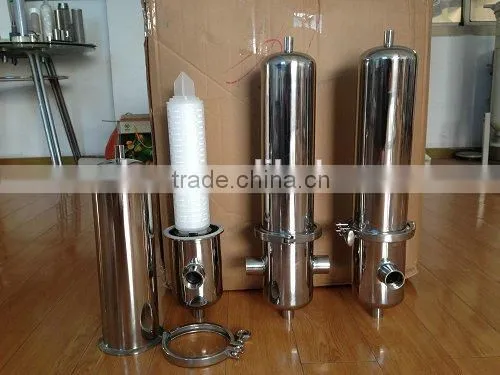

Industrial Stainless Steel Sterilizing Air Filters
|

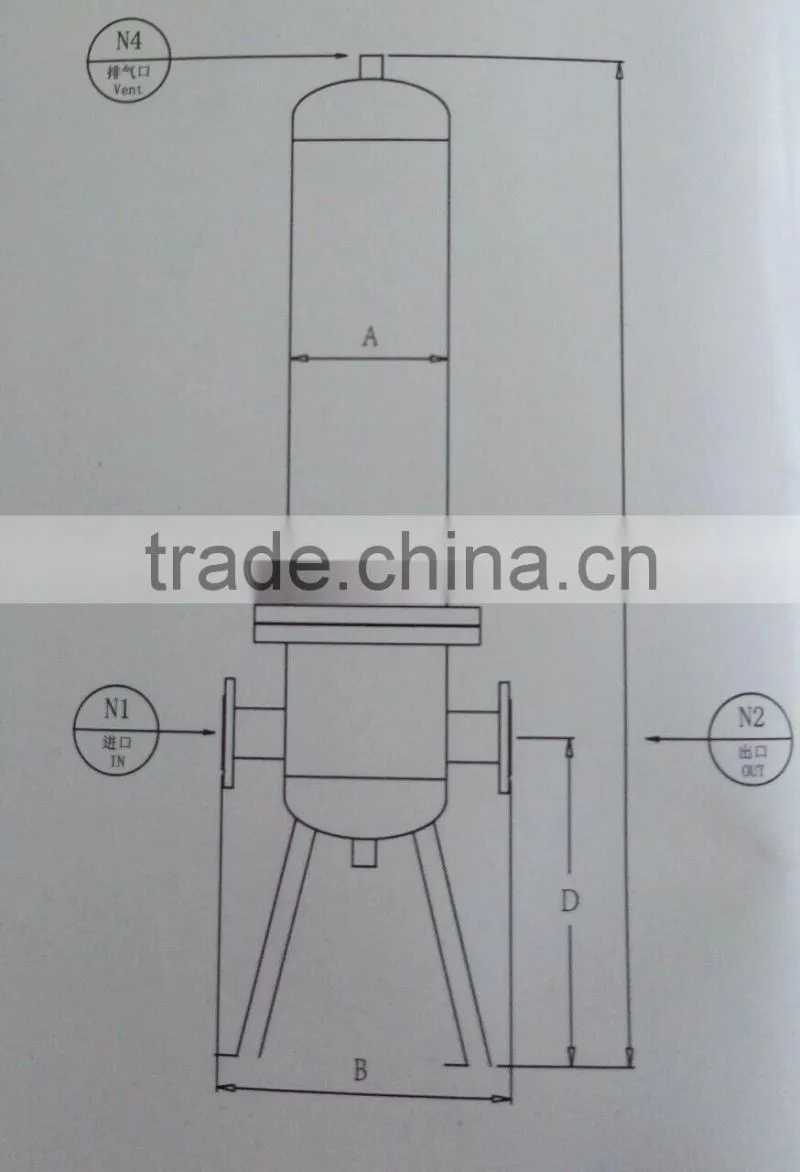

Outline dimension
Model style |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
N1 | N2 | Flow | Volume |
| RHLX-1-10 | Φ102 | 230 | 530 | / | IDF''θ25.4*4.5 | IDF''θ25.4*4.5 | RC1/4'' | M20*1.5'' |
| RHLX-1-20 | Φ102 | 230 | 780 | / | IDF''θ25.4*4.5 | IDF''θ25.4*4.5 | RC1/4'' | M20*1.5'' |
| RHLX-3-10 | Φ180 | 300 | 780 | 324 | DN32 | DN32 | RC1/2'' | M20*1.5'' |
| RHLX-3-20 | Φ180 | 300 | 1030 | 324 | DN32 | DN32 | RC1/2'' | M20*1.5'' |
| RHLX-5-10 | Φ230 | 320 | 780 | 374 | DN50 | DN50 | RC1/2'' | M20*1.5'' |
| RHLX-5-20 | Φ230 | 320 | 1030 | 374 | DN50 | DN50 | RC1/2'' | M20*1.5'' |
Features
Connection type :quick connect or flange
Seal material: Silicone ,EPDM, VITON
Seal type: Square gasket
Apply to a strainer :10'' , 20'' , 30 '', 40''226plig-in
Design pressure : 1.0Mpa
Design flow : 1.5-9.5m3/h
Surface disposal:mirror polishing or electrolytic polishing
Certifications
Standard wooden box packaging
Pre-sales:
According to the customers' requirements,provide a comprehensive
range of filtering technology professional consultation, analysis the
customers' demand carefully and the working environment, provide
and design the most suitable products.
After sale:
Provide the life-long free product updates, filtering technology
improvements, technology consusultation such as professional consuiting services
Shanghai Runlan filteration equipment Co.,Ltd. is professional engaged in research, design, manufacture and salea of fillteration equipment for the integration of Science & Technology entities of private joint-stock enterprise which founded in 2008.
Enterprise leading product are: bag filter, cartridge filrer precision filter, Candle filter, automatic filter, filter press, diatomaceous earn filter, centrifuges, and other filteration equipment .For the convenience of the new and old customers, the company also can design and customized non-standard filteration equipment ,and with the most preferential prices to provide filter cloth, filter bag, filter cartridge, menbrance filteration and other consumables, etc.
1 Q: Are you a factory or tradeing conpany?
A: We are a factory
2 Q: Where is your factory located ? How can i visit there
A: We have two factories for different product range
All our cients from home or abrod , are warmly welcome to visit us .
3 Q: How does your factory do regarding quality control?
A: Quantity is priority. NM safety people always attach great importance to
quality controling from the very begining to the very end.
4 Q: Terms and services
A: Trade term: FOB, CIF, CFR
Payment terms: T/T L/C at sight
Loading port : Shanghai
Delivery : With 60 days, depends on customers' order quantity
5 Q: Warranty
A: For one year. in addition to artificial damage
Welcome to send us inquiry ,if you are interested in our product .
