Specifications
- Modified Starch Extruder- Food Grade Stainless Steel
- Screw Self-cleaning
- CE ISO9001
- 1 Year Warranty
Hot Products ! ( Click the pictures to see the details )
-------------------------------------------------------------------------------------------------------------------

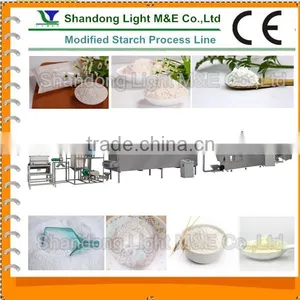

High Quality Automatic Stainless Steel Modified Starch Extruder
I. Description
High Quality Automatic Stainless Steel Modified Starch Extruder uses cheap natural starch, like corn starch, cassava starch, tapioca starch etc as main materials, through extruding treatment process, to produce multi-functional and high-valuable modified starch, Pre-gelatinization Starch or Denatured Starch. Its Double Screw Extruder is special designed, consists of 6 systems: feeding system, extruding system, cutting system, heating system, conveying system and cooling system, its barrels and screws structure can easily realize the function of changing the properties of the starch. Modified Starch can be used in many fields like Textile, Food, paper making, building material, casting, oil drilling and so on.
1. Raw Materials: natural starch, like corn starch, cassava starch, tapioca starch etc
2. Products: Modified Starch.
3. Capacity: 150 KG/H,200-250 KG/H,400-500 KG/H
4. Flow Chart: Mixing —Extrusion —Baking —Grinding
5. Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers' local voltage of different countries.
6. Machines Materials: All the machines are made by food grade stainless steel.
II. Technical Parameters
Model |
Installed Power |
Main Motor Power |
Output |
Size(L×W× H) |
LT65S |
89kw |
64kw |
120-150kg/h |
20000x1200x2000mm |
DL75 |
145kw |
87kw |
200-250kg/h |
21000x1500x2200mm |
LT85S |
153kw |
92kw |
400-500kg/h |
31000x3500x4300mm |
III. Flow chart
IV. Details & Features
1. The screw is made of alloy (38CrMoAL) by nitriding process, high strength and wear-resting. And it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
2. It adopts speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine guarantees stable materials feeding in the whole food process.
3.The gearbox has automatic lubrication function, with extends gear life.
4. Radiator is increased on driving part for forced cooling effect, and it ensures extruder operate safely.
5. Barrel with water-cooled circulation, it makes extruder can be used not only for corn/rice, also for wheat flour/starch which are raw materials with high viscosity. Through different moisture-extrusion temperature ratio, it can make whole-expanded and half expanded as different type of products.
6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
V. Sample Picture
VI. We Provide Satisfied Service & Turnkey Solution
a.) Consultation service before, during, and after sales;
b.) Project planning and design service;
c.) Debugging of equipment until everything is functional;
d.) Management of equipments' long distance shipping from seller's factory to the named place by buyer;
e.) Training of equipment maintenance and operating personally;
f.) New production techniques and formulas;
g.) Provide 1 year complete warranty and life-time maintenance service.
