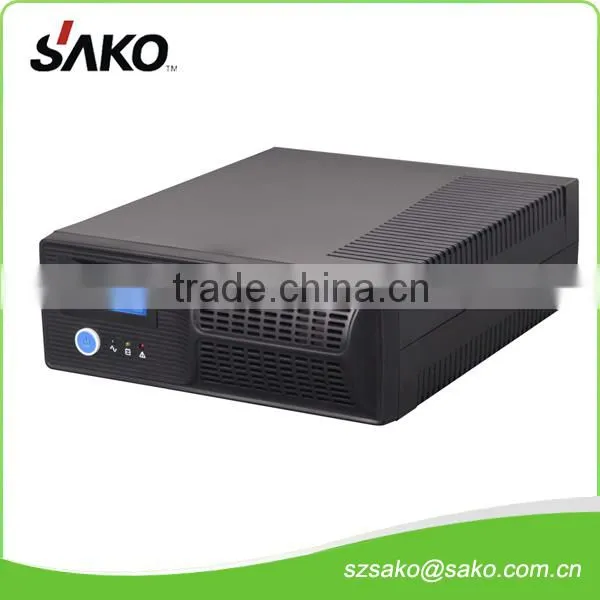

Home Inverter With Modify Sine Wave

Home Inverter With Modify Sine Wave thumbnail-1
Home Inverter With Modify Sine Wave photo-1
US$ 35 - 85 MOQ: 200 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SAKO or OEM,ODM
Model Number:
500 - 2000VA
Contact Supplier Request Quote Chat Now
Sako Electrical Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen /Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SAKO or OEM,ODM
Model Number 500 - 2000VA
Output Power Other, >500W
Output Type Single
Size 350*128*310mm
Weight 2.65-2.86KG
Input Voltage 90-280V
Output Voltage 220V
Type DC/AC Inverters
Output Frequency 50/60Hz
SAKO SKN-H SERIES TECHNICAL PARAMETER
MODEL
 SKN-H600 SKN-H1000 SKN-H1200 SKN-H1000 SKN-H2000 SKN-H2400
SPECIFICATION
  DC INPUT
Input Voltage (VDC) 12VDC 12VDC 12VDC 12VDC 24VDC 24VDC
Input DC Range (VDC) 10~15VDC 20~30VDC
  AC BYPASS (IN “ON/OFF” SWITCH OFF MODE)
Input AC Range (VAC) 220/230/240VAC
177 - 280VAC (Narrow Range) or 90 - 280VAC (Wide Range)
Input Frequency (Hz) 50/60Hz
Bypass Output Voltage (VAC) Same As Input AC
Bypass Output Frequency (Hz) Same As Input Frequency
Charge Current (A) 10A ± 2A or 10A and 20A Selectable
Charge Floating Voltage (VDC) 13.75 ± 0.2VDC 27.5 ± 0.4VDC
Over Charge Voltage (VDC) 15.0V ± 0.4V Charge Stop 30.0V ± 0.8V Charge Stop
AC Efficiency > 97%
Transfer Time (ms) Typical 15ms
  AC OUTPUT (INVERTER)
Capacity (VA) 600 1000 1200 1000 2000 2400
Output Power (W) 360 600 720 600 1200 1440
Output Voltage (VAC) 220VAC
Output Frequency (Hz) 50/60Hz
Output Current (A) 2.7/1.6 4.5/2.7 5.4/3.2 4.5/2.7 9.1/5.5 10.8/6.4
Voltage Precision (VAC) 220VAC ± 10%
Frequency Precision (Hz) 50/60Hz ± 0.1Hz
Wave Modify Sine Wave
Power Factor (PF) 0.6
Inversion Efficiency > 85%
Bypass Transfer Time (ms) <= 8ms
Over Load Capacity Over Load 110%, 60s Later Shut Off
  PROTECTION
Protection Over load / short circuit protection / over charge / discharge Protection
  AMBIENT
Noise (dB) <=40dB (1 Meter)
Temperature -20°C ~ 45°C Degree
Humidity 0~95% (No Condensation)
Sea Level (m) <= 1500m
  DIMENSION
Package L×W×H (mm) L638*W370*H552 mm (10PCS In One Carton)
G.W. (KG) / Carton 26.5KG 27.5KG 27.8KG 27.2KG 28.2KG 28.6KG
