Pure Sine Wave Solar Inverter JSKN 500VA To 10000VA For Home
1.Power Range: 500VA-10000VA
2.Power Factor: 0.8
3.DC Voltage: 12V,24V,48V,96V
4.Include AC Charger Function Inside
5.The JSKN Inverter Include Solar Charge Controller and battery Inside
6.Pure Sine Wave Inverter
7.Inverter With AC Charger With Solar Charge Controller
8.22 Year Brand Quality Garantee
9.portable design can move to everywhere
10.Popular Design With LED LCD Display
Pure Sine Wave Solar Inverter JSKN Main Function Features
> Micro Processor Control
> Pure Sine Wave
> With AC Charger
> Intelligent Automatic Voltage Charging Technology
> Over Load, Short Circuit Protection
> Over Temperature Protection
> By Pass System
> Automatic Charge Even Inverter Is Off
> Shut Off Output By Manual If No Need Power
> Low Battery Protection
> Over Voltage, Low Voltage Protection
> With Polarity Protection
> Compatibility With Generators
> The LED&LCD Display Design Option
SAKO Pure Sine Wave Solar Inverter JSKN SERIES TECHNICAL PARAMETER
| SAKO JSKN 4000W SERIES TECHNICAL PARAMETER | |||
| JSKN-10KVA-4000W | |||
| Name Of Parts | Specifications | Parameters | Quantity (PCS) |
| Mono-Crystalline Solar Panels | The Maximum Power Of Solar Panels (W) | 200W | 20PCS |
| The Short Circuit Current Of Solar Panels (A) | 8.24A | ||
| The Maximum Power Current Of Solar Panels (A) | 7.51A | ||
| The Open Circuit Voltage Of Solar Panels (VDC) | 32.73VDC | ||
| The Maxium Power Voltage Of Solar Panels (VDC) | 36VDC | ||
| Battery | Maintenance Free Lead-Acid Battery | 12V/200AH | 8PCS |
| Solar Charge Controller | Rated Voltage (VDC) | 96VDC | 1PCS |
| Discharge Current (A) | 60A | ||
| Charge And Recover Voltage (VDC) | 106.4V/Lead-Acid | ||
| The Battery'S Overvoltage Protection And Recovery | 115.2V/105.6VDC | ||
| The Set Range Of Voltage When Low Voltage Off | 86.4V-92.8VDC | ||
| The Set Range Of Voltage When Low Voltage On | 96.8V-105.6VDC | ||
| Inverter | Rated Output Power (W) | 8000W | 1PCS |
| Rated Output Voltage (VAC) | 220VAC±5%, 50Hz±1Hz | ||
| Output Waveform | Pure Sine Wave | ||
| Rated Input Voltage (VDC) | 96VDC | ||
| Undervoltage Alarm (VDC) | 84±0.5VDC | ||
| Low Voltage Off (VDC) | ≤ 80.0VDC | ||
| Overvoltage Off (VDC) | ≥ 113.6VDC | ||
| Efficicency | ≥ 82% | ||
| Output | AC 220V Socket | 220V / 1A | 2PCS |
| Portable Box Dimension (mm) | Box:580*400*645 mm, Package: 720*470*715 mm, battery size:522*238*218mm*8pcs | ||
| Solar Panel Dimension (mm) | 1482*992*40 mm, | ||
| Weight (KG) | Box G.W.: 85Kg, Solar Panel: 17Kg*20PCS Battery: 60Kg*8PCS | ||
| DISCHARGE TIME (HOURS) | |||
| Item | Specifications | Quantity (PCS) | Lighting Time (Hours) |
| LED Lights | 3W | 10 | 666 |
| Electric Fan | DC 12V/30W | 10 | 66 |
| TV | AC220V (LCD 32Inch 60W) | 2 | 333 |
| Fridge | AC220V 120W | 1 | 160 |
| 1 HP AC | AC220V | 3 | 20 |

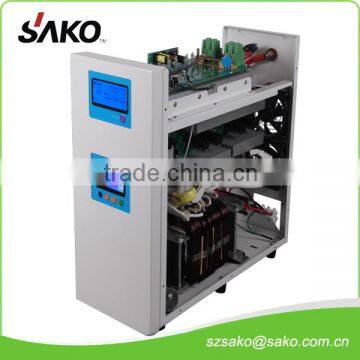

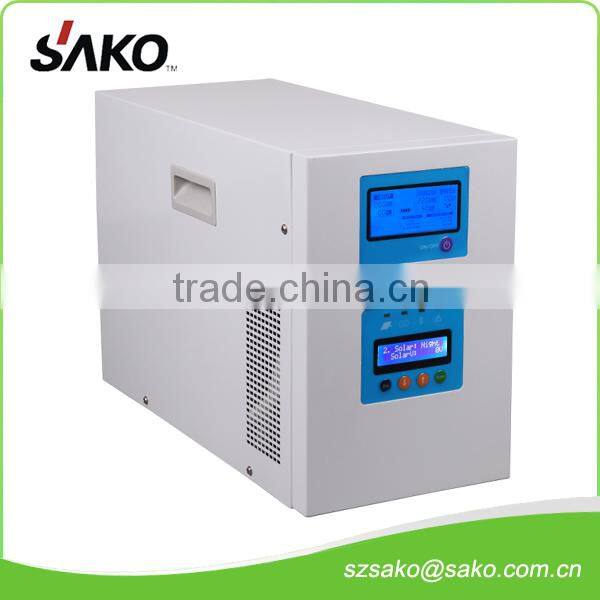

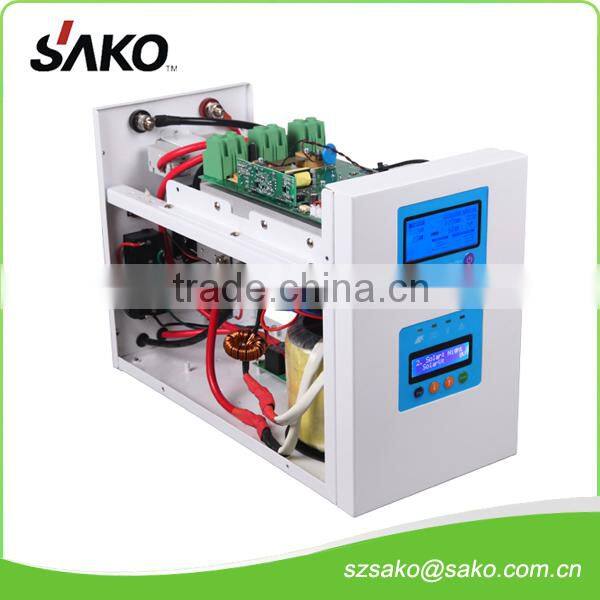

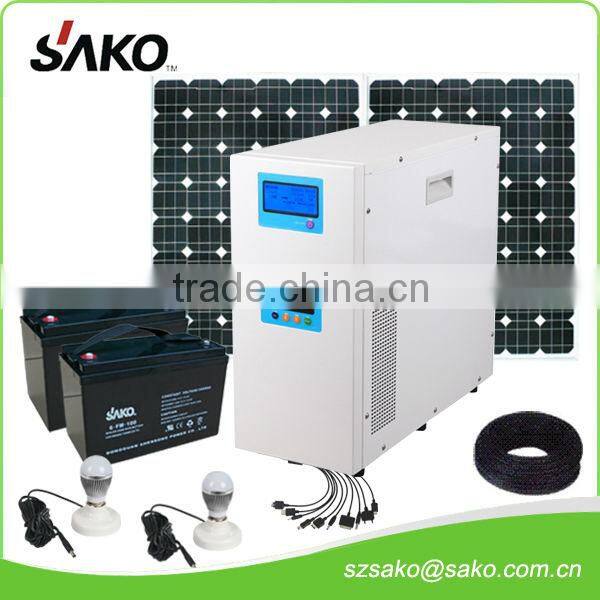

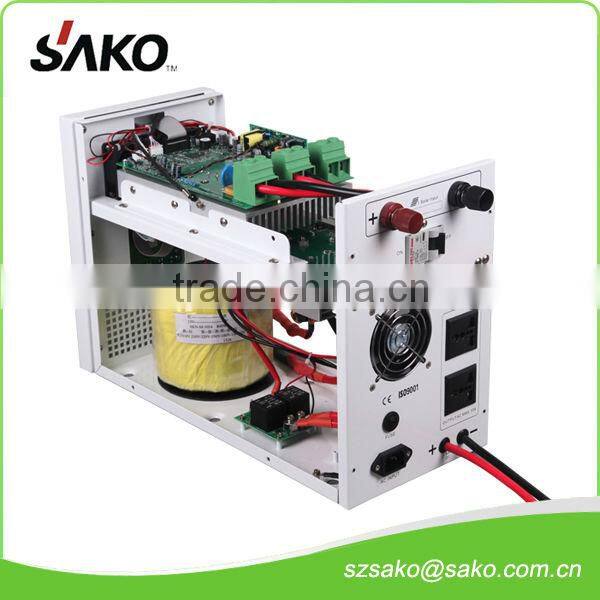

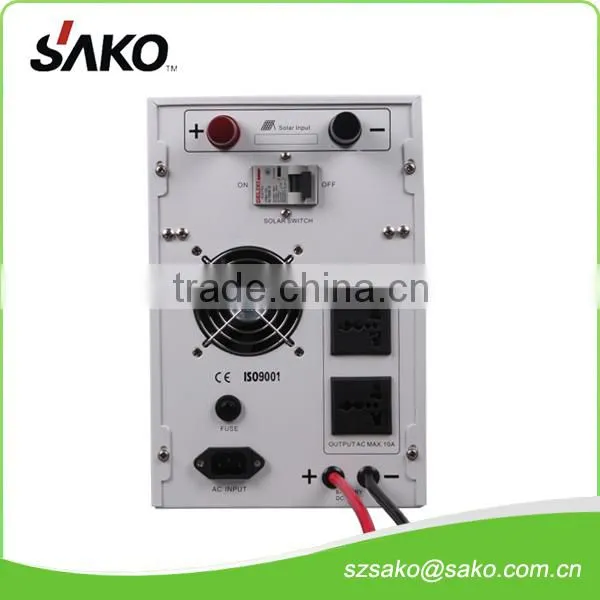

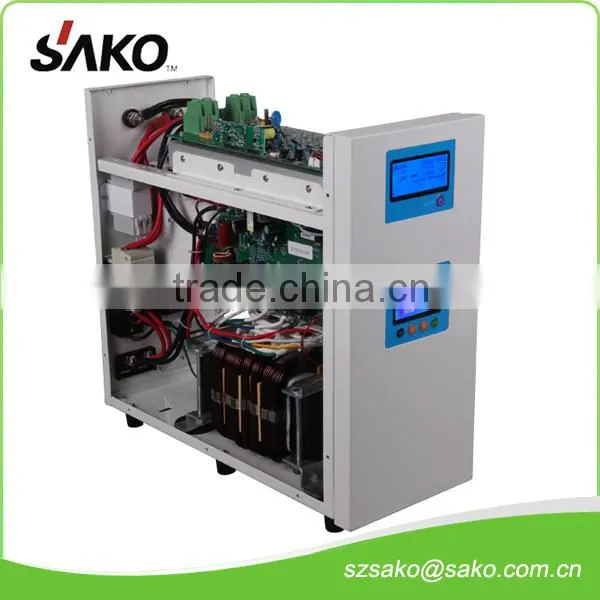

SAKO Pure Sine Wave Solar Inverter JSKN SERIES Detail Pictures
