Specifications
PCD Wire Drawing Die:1.High wear &corrosion resistance
2.Advanced equipments
3.Good abrasive resistance
4.best price

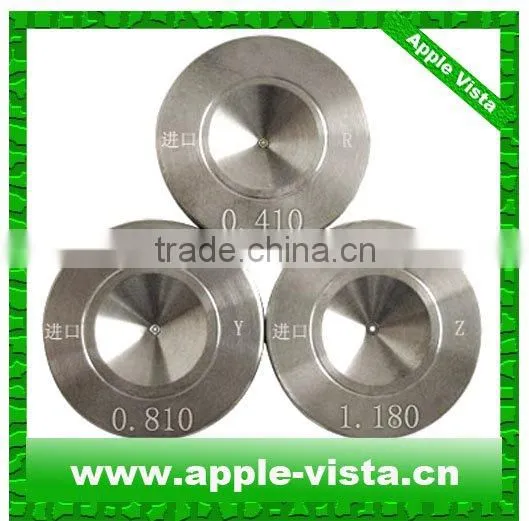

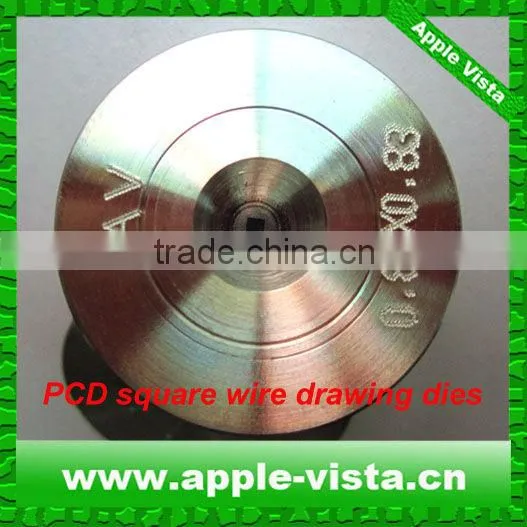

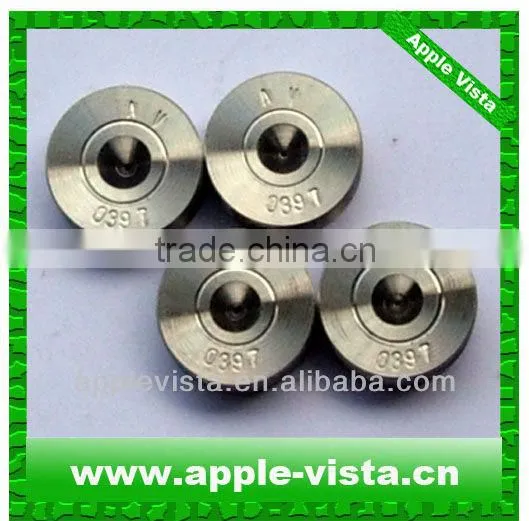

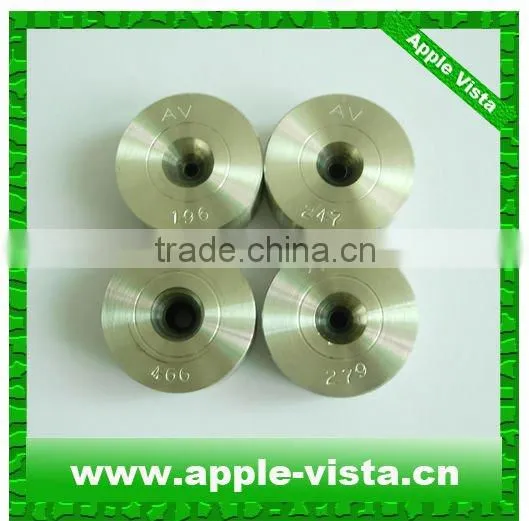

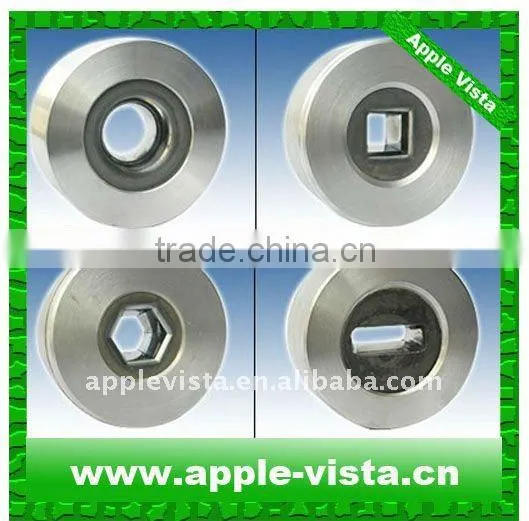

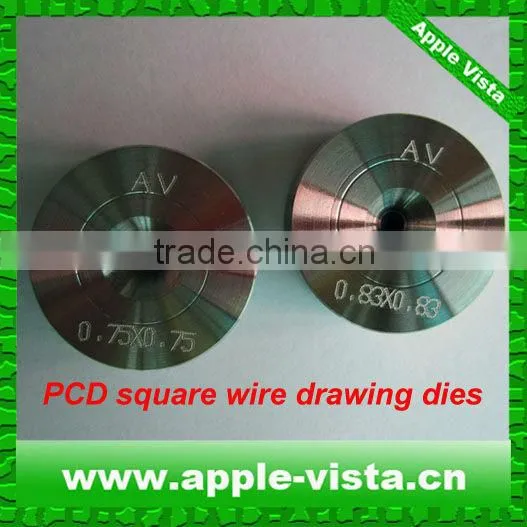

High quality PCD wire drawing die /Diamond wire drawing die
Apple-vista limited has research, manufacture and export of PCD wire drawing die blanks / TC wire drawing die/PCD wire drawing.
PCD wire drawing die was polycrystalline diamond core completely integrated with a tungsten carbide ring. The supported carbide ring can increase the toughness of the blank and bear more strong impact during wire drawing.
Advantages
1. Maximum die life provides highest production efficiency with less
downtime.
2. Available in a wide range of grain and blank sizes.
3. Excellent resistance to die fracture and breakage.
4. Even, predictable die wear.
Applications
Nonferrous wire, especially larger sizes where demanding wear is a problem, but
surface finish is less critical.
Typical Markets
Aluminum wire, copper wire, stainless steel wire, tire cord, welding wire,
galvanized steel wire and saw wire.
For more information, please contact us today!
The production and delivery will take 15 days.
Usage time: the whole set of dies can guarantee drawing 30000tons of copper wires. It can reduce the copper powder in the course of drawing. The surface of finished wires is smooth without any defect. After the dies drawing copper wires of 30000 tons, it will not be damaged, but it needs to safeguard, maintain, and polish.
Draing Dies Parameters(unit: mm)
Hole SizeΦd |
Hole Size |
Ovality |
Casing |
Φ0.100~0.200 |
≤0.0015 |
≤0.0008 |
Φ25×8 |
Φ0.201~0.400 |
≤0.0020 |
≤0.0010 |
Φ25×8 |
Φ0.401~0.500 |
≤0.0025 |
≤0.0015 |
Φ30×10 |
Φ0.501~0.750 |
≤0.0030 |
≤0.0020 |
Φ30×10 |
Φ0.751~1.50 |
≤0.0035 |
≤0.0025 |
Φ37×12 |
Φ1.501~2.00 |
≤0.0050 |
≤0.0030 |
Φ37×12 |
Φ2.001~3.00 |
≤0.0070 |
≤0.0050 |
Φ41×20 |
Φ3.001~4.60 |
≤0.010 |
≤0.0080 |
Φ41×20 |
Φ4.601~8.00 |
≤0.015 |
≤0.012 |
Φ41×24 |
Note: Specification only for reference. Special die blank and casing are available upon request.
