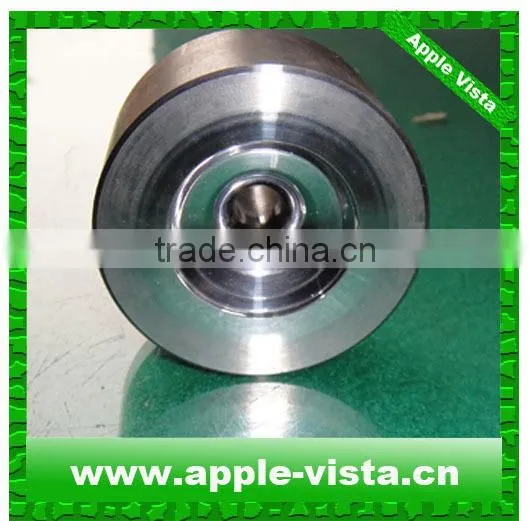

Tungsten Carbide Threading Die

Specifications

good durability
high efficiency
a wide range of grain and nib sizes
perfect characteristics of crack proof
smoothness

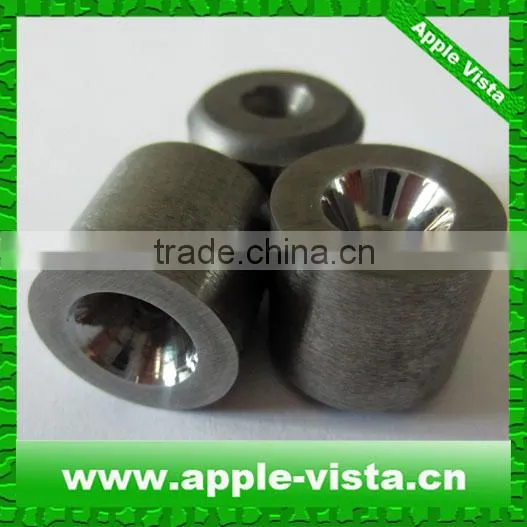

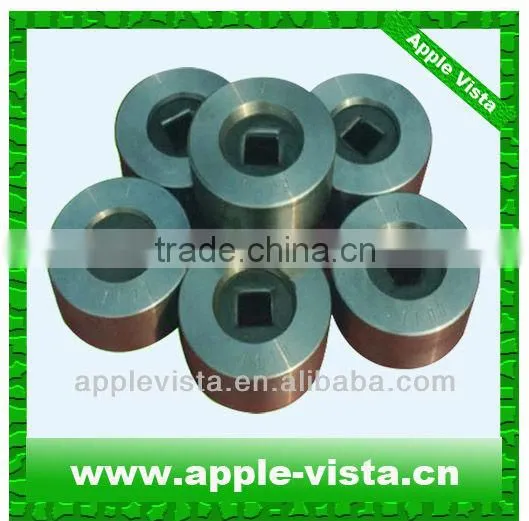

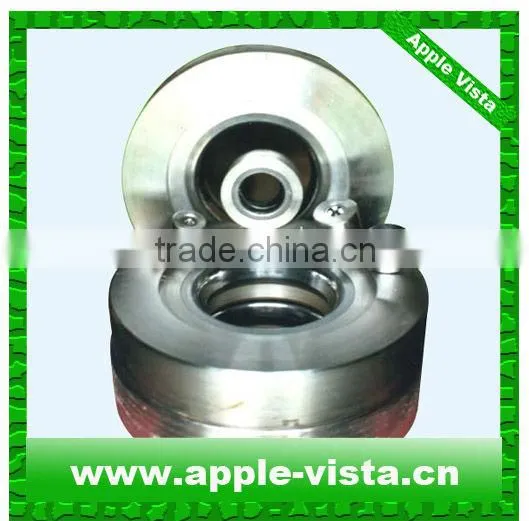

Tungsten Carbide Threading Die







We supply wire drawing dies for copper, aluminum, brass, steel, stainless steel, etc.

Any inner hole and casing dimension is available.

Specifications no bigger than 0.3mm is natural diamond.

Bigger than 0.3mm is PCD.

----------------------------------------------------------------------------------------------------





1.Structure of dies:

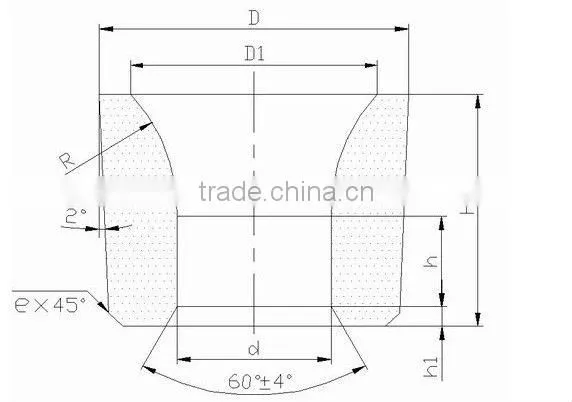

The hole of the wire drawing dies is made up of four parts:

•       Lubricating area of the entry: There is an arc to make the wires enters to the workaround conveniently.

•       The workaround: The metals come about plastic deformation while drawing, the cross section of the metals is    compressed and reduced.

•       Diameter fixed district: to guarantee the size and form accurate and even, lengthen the service life of the die.

•       Wire outlet area: wire outlet terminal can prevent scuffing and break-up when the machine is stopped.





2. Material source:

 The die materials imported from U.S.A. GE company. Each one has trade marks and certificate of company. Granularities are 351025.





3. The production and delivery will take 15 days.

the whole set of dies can guarantee drawing 30000tons of copper wires. It can reduce the copper powder in the course of drawing. The surface of finished wires is smooth without any defect. After the dies drawing copper wires of 30000 tons, it will not be damaged, but it needs to safeguard, maintain, and polish.

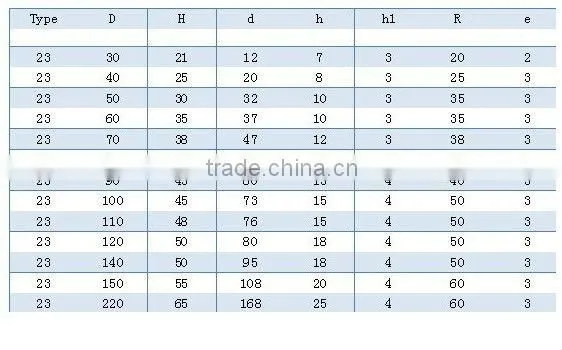

Draing Dies Parameters(unit: mm)

Hole SizeΦd	Hole Size Tolerance	Ovality	Casing ΦD×H
Φ0.100~0.200	≤0.0015	≤0.0008	Φ25×8
Φ0.201~0.400	≤0.0020	≤0.0010	Φ25×8
Φ0.401~0.500	≤0.0025	≤0.0015	Φ30×10
Φ0.501~0.750	≤0.0030	≤0.0020	Φ30×10
Φ0.751~1.50	≤0.0035	≤0.0025	Φ37×12
Φ1.501~2.00	≤0.0050	≤0.0030	Φ37×12
Φ2.001~3.00	≤0.0070	≤0.0050	Φ41×20
Φ3.001~4.60	≤0.010	≤0.0080	Φ41×20
Φ4.601~8.00	≤0.015	≤0.012	Φ41×24
