Specifications
wire drawing dies1.Very high wear resistance ,hardness
2.Long life,shotr delivery time
3.Can offer OEM
4:Best price

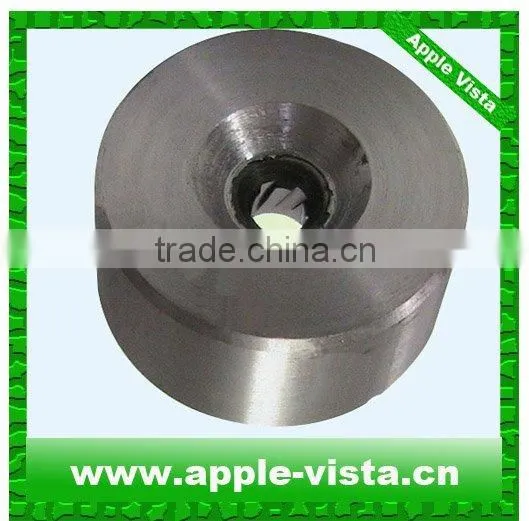

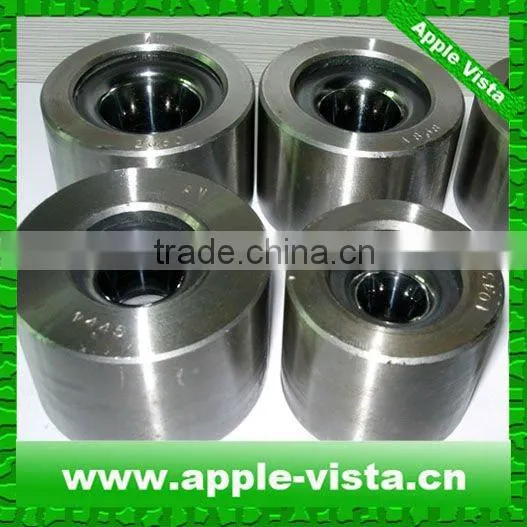

Supply inserting micron wire into wire drawing dies
1. features:
Materials used for polycrystalline diamond dies come from American GE Japanese SUMITOHO precise domestic CD and ordinary polycrystalline diamond blanks. All the aforesaid polycrystalline diamond dies corstitute different performances and prices system and are suitable to draw various wires/cables of ferrous /nonferrous metals, such as magnet wire, insulated wire, stainless steel sire, tungsten molybdenum wire, low carbon steel wire and welding wires.
The polycrystalline diamond dies have longer services life, more accurate wire roundness and surface smoothness. They are in particular fitted to draw wearable wires with oversized size.
2.Structure of dies:
The hole of the wire drawing dies is made up of four parts:
*Lubricating area of the entry: There is an arc to make the wires enters to the workaround conveniently.
*The workaround: The metals come about plastic deformation while drawing, the cross section of the metals is compressed and reduced.
*Diameter fixed district: to guarantee the size and form accurate and even, lengthen the service life of the die.
*Wire outlet area: wire outlet terminal can prevent scuffing and break-up when the machine is stopped.
3. Material source:
The die materials imported from U.S.A. GE company. Each one has trade marks and certificate of company. Granularities are 351025.
4. The production and delivery will take 3-25 days.
5. Usage time: the whole set of dies can guarantee drawing 30000tons of copper wires. It can reduce the copper powder in the course of drawing. The surface of finished wires is smooth without any defect. After the dies drawing copper wires of 30000 tons, it will not be damaged, but it needs to safeguard, maintain, and polish.
6.Drawing Dies Parameters(unit: mm)
Hole SizeΦd |
Hole Size |
Ovality |
Casing |
Φ0.100~0.200 |
≤0.0015 |
≤0.0008 |
Φ25×8 |
Φ0.201~0.400 |
≤0.0020 |
≤0.0010 |
Φ25×8 |
Φ0.401~0.500 |
≤0.0025 |
≤0.0015 |
Φ30×10 |
Φ0.501~0.750 |
≤0.0030 |
≤0.0020 |
Φ30×10 |
Φ0.751~1.50 |
≤0.0035 |
≤0.0025 |
Φ37×12 |
Φ1.501~2.00 |
≤0.0050 |
≤0.0030 |
Φ37×12 |
Φ2.001~3.00 |
≤0.0070 |
≤0.0050 |
Φ41×20 |
Φ3.001~4.60 |
≤0.010 |
≤0.0080 |
Φ41×20 |
Φ4.601~8.00 |
≤0.015 |
≤0.012 |
Φ41×24 |
Note: Specification only for reference. Special die blank and casing are available upon request.
Apple Vista Limited has strong development ability for new products. Wehave own designers and tooling making factory as a strong back-up for several factories under control. We are absolutely qualified for OEM or ODM orders from our customers. We just need a sample, or even just an idea, then we can make your ideas into real productsin rational time.
Our various products make one-stop source easier for customers to mix different items into one container, which will make customers save purchasing cost quite a lot. Meanwhile, it is also very easy for customers to arrange payment to make inspection.
We are producing carbide wire drawing dies, natrual diamond wire drawing dies, PCD wire drawing dies, CVD wire drawing dies, polycrystalline wire drawing die in a wide range of style and sizes ranging from 0.03-25mm, applicable for drawing copper wire, aluminum wire, steel wire, iron wire, tungsten wire, welding wire, etc.We welcome inquiries from buyers around the world.
Our advantages |
1.High quality |
2.Reasonable price | |
3.On time delivery | |
4.Good After-sale service | |
5.Strict quality control | |
6.All the Wire Drawing Die are automotic. | |
We will offer you |
1.In-time response on letters, telephone calls or fax |
2.In-time supply the quotation and Wire Drawing Die designs | |
3.In-time communication on the technical points | |
|
4.In-time sending pictures for the Wire Drawing Die machining progress and Wire Drawing Die finishing schedule | |
5.In-time Wire Drawing Die test and sample delivery | |
6.In-time Wire Drawing Die delivery. |
1.How can we get the quote?
Of course,First send the detailed drawing to my my email.
2. How long will we arrange production?
Normally we need about 10-20days,according to your total quantities.
3.Do you have MOQ?
Of course we have our MOQ,but for our first cooperation,we would like to help you product at any quantities.
4.How to caculate the shipping charge?
When we make the official quotation,we will give our local charge for your referance.
If you have your own agent,that would be better.
5.How we can know that our products are in production?
After we received your payment,we will take photoes about the whole production process at any time if you need.
6.What's the trade terms and payment terms?
We usually quotated for FOB/Ex-work/CIF price.
Payment we can accept TT in advance/paypal account/wester union....
7.How to contact us?
If you trust us,pls send your detailed drawing sheet to the following email: nancy at
I will provide our quotation within 24hours.
