Specifications

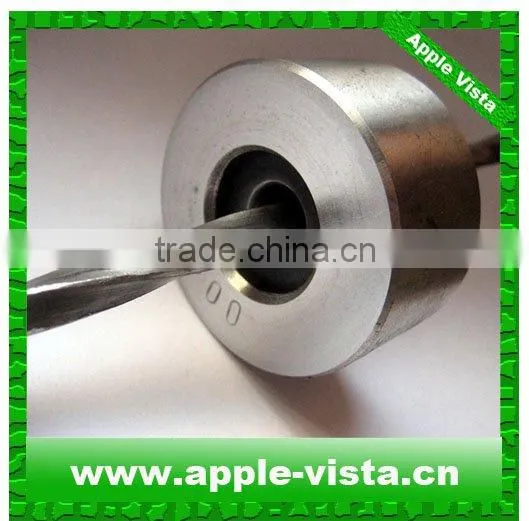

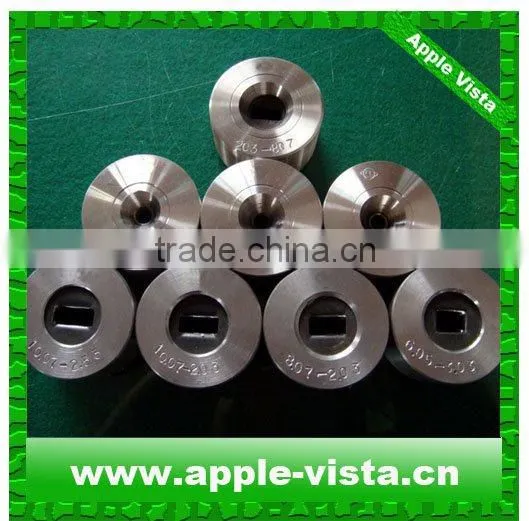

Carbide Flat Wire Drawing Die1.good durability
2.high efficiency
3.perfect characteristics of crack proof
4.smoothness.
Good durability !Tungsten Carbide Dies for wire drawing
---------------------------------------------------------------------------------------------------

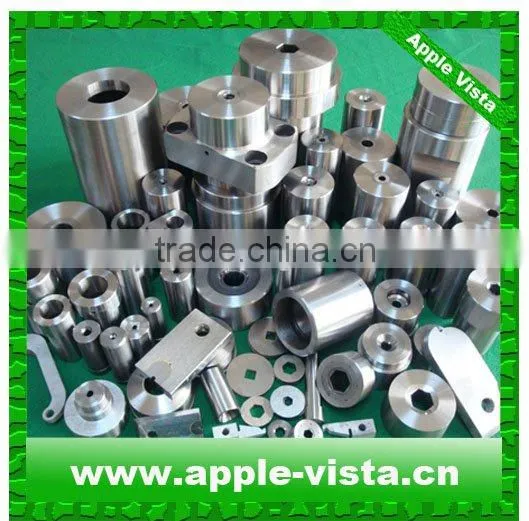

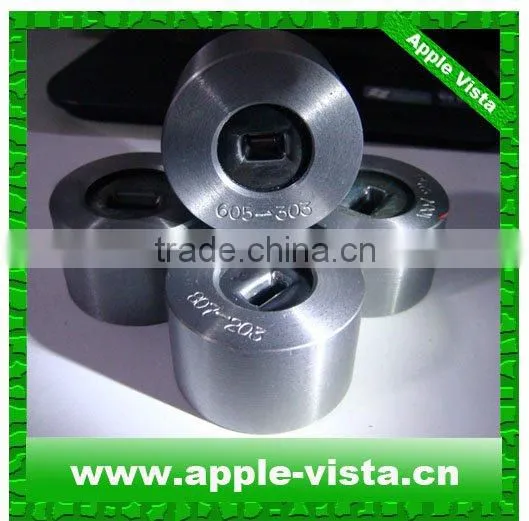

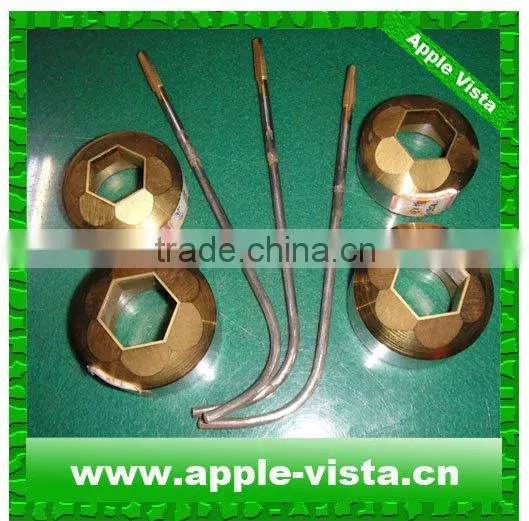

The wire drawing dies we supply including natural diamond wire drawing dies, PCD wire drawing dies, tungsten carbide wire drawing dies, shaped wire drawing dies(square, rectangle, eillpse, semicircle, triangle ,hexagen and so on), extrusion dies.

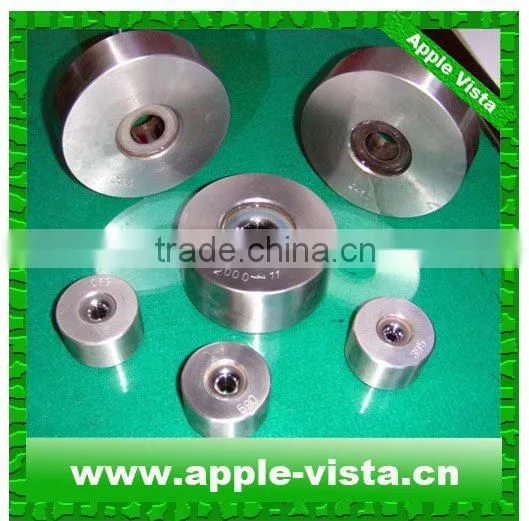

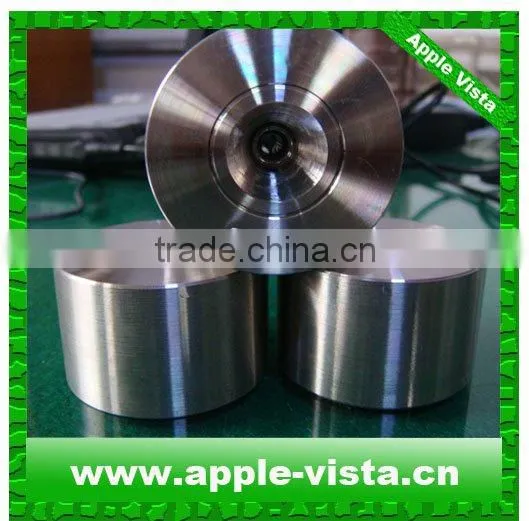

Polycrystalline Wire Drawing Dies
Polycrystalline is a kind of synthetic material which combines the advantages of perfect surface finish, minimum friction and high wear resistance. Drawing dies made of polycrystalline nibs will give good roundness of the wire drawn. And you can draw more kilograms of wire before you need to re-cut the die because the wear on the die is even and predictable, you know exactly when the die needs to be re-cut, minimizing costly scrap and maximizing product quality.
Dia of Hole: 0.05-12.00mm
Advantages:
1. good durability;2.high efficiency;3. a wide range of grain and nib sizes;
4. perfect characteristics of crack proof;5. smoothness, durability predicted
Applications:Nonferrous wire, including copper, aluminum, electromagnetic wire and stainless steel
CD Wire Drawing Dies
Our technical expertise in CD enables development of the unique material used in our wire dies. Currently dies are available with blanks sizes D6 through D30. D6, D12, D15, and D18 are offered in free standing; D15 through D30 are offered with a tungsten carbide support ring. They have not only high wear resistance, hardness and thermal conductivity, but also high mechanical strength and tenacity.

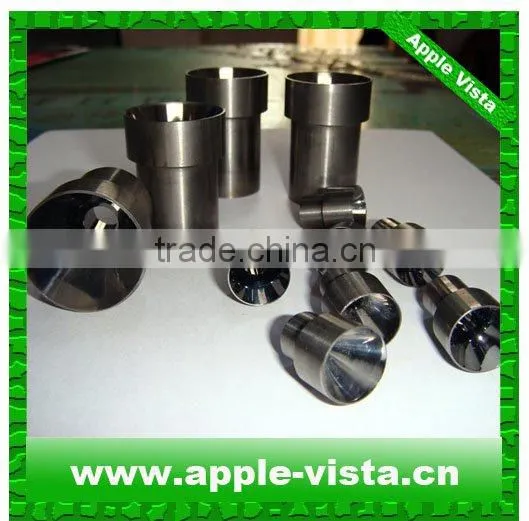

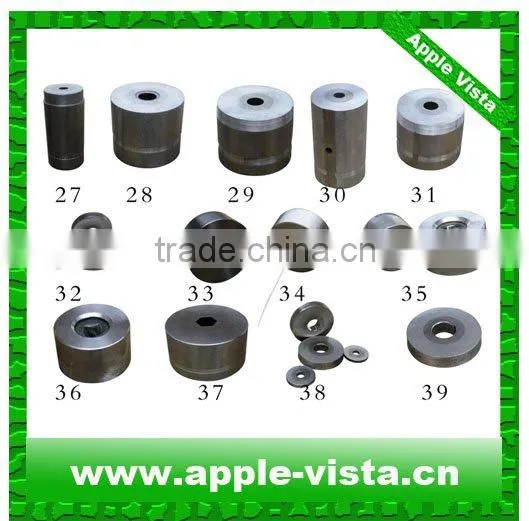

Tungsten Carbide Wire Drawing Dies
Tungsten Carbide Drawing Dies for Tubes, Bars, Profiles
Carbide is a brittle, hard material with mechanical properties that can be adjusted within a very wide range, given its composition and microstructure. Hengjiu carbide drawing die nibs will satisfy your quality requirement for perfect finishing and axiality.
Dia of Hole: 0.04-350.00mm
Advantages:
1. Wide range of sizes
2. Lower cost
3. Anti-corrosion and high wear resistance
Applications:
Carbon Steel Wire
Stainless Steel Wire
Seamless Steel Pipe
Stainless Steel Pipe
Profiles, Bars, tubes
For most iron wire, and material of high corrosion and big amount of wear
Die Parameters(unit: mm)
Hole SizeΦd |
Hole Size |
Ovality |
Casing |
Φ0.100~0.200 |
≤0.0015 |
≤0.0008 |
Φ25×8 |
Φ0.201~0.400 |
≤0.0020 |
≤0.0010 |
Φ25×8 |
Φ0.401~0.500 |
≤0.0025 |
≤0.0015 |
Φ30×10 |
Φ0.501~0.750 |
≤0.0030 |
≤0.0020 |
Φ30×10 |
Φ0.751~1.50 |
≤0.0035 |
≤0.0025 |
Φ37×12 |
Φ1.501~2.00 |
≤0.0050 |
≤0.0030 |
Φ37×12 |
Φ2.001~3.00 |
≤0.0070 |
≤0.0050 |
Φ41×20 |
Φ3.001~4.60 |
≤0.010 |
≤0.0080 |
Φ41×20 |
Φ4.601~8.00 |
≤0.015 |
≤0.012 |
Φ41×24 |
