Help CenterDahan High Frequency Vibration Sieve With Ultrasonic Power
Related Products
-
New Prodcut Flexible Small Vertical Screw Conveyor PriceUS$ 350 - 350MOQ: 1 Set -
Oscillating Conveyor Machine for Copper PowderUS$ 1,000 - 10,000MOQ: 1 Set
-
Electric Motor Conveyor Oscillating With Explosion-proof Protect Feature Vibrator MotorUS$ 1,000 - 10,000MOQ: 1 Set
-
Flexible Oscillating Conveyor Equipment Used for Box ConveyingUS$ 1,000 - 10,000MOQ: 1 Set
-
High Quality Oscillating Conveyor Machine for Copper PowderUS$ 1,000 - 10,000MOQ: 1 Set
High frequency vibration sieve is a high-precision powder griddle, low noise, high efficiency, quick changer takes 3-5 minutes, totally enclosed structure, for grain, flour, mucus and other materials screening filter. Rotary Vibrating Screen is a motor for vertical excitation source, the motor and lower eccentric weight installed at both ends of the motor rotary motion into a horizontal, vertical, inclined three elementary motions, then the movement passed to the screen surface . Adjust the upper and lower ends of the phase angle, the material can change the trajectory of the screen surface.
Material screening schematic diagram
Features
1. In achieving high precision and high mesh screening at the same time, control of a narrow size range.
2. Single or multi-layer together screening, with a smart ultrasonic generator at the same time make use of one transducers.
3. Ensure that the processing characteristics of the material unchanged.
4. Real solution to strong absorption, easy to join, high static, high-precision, high density, light weight and other screening problems.
5. Thoroughly screen self-cleaning function: greater than 500 mesh sieve, mesh-free jam, no attenuation of screening efficiency.
6.1-70% can increase screening accuracy, output can be increased 0.5-10 time

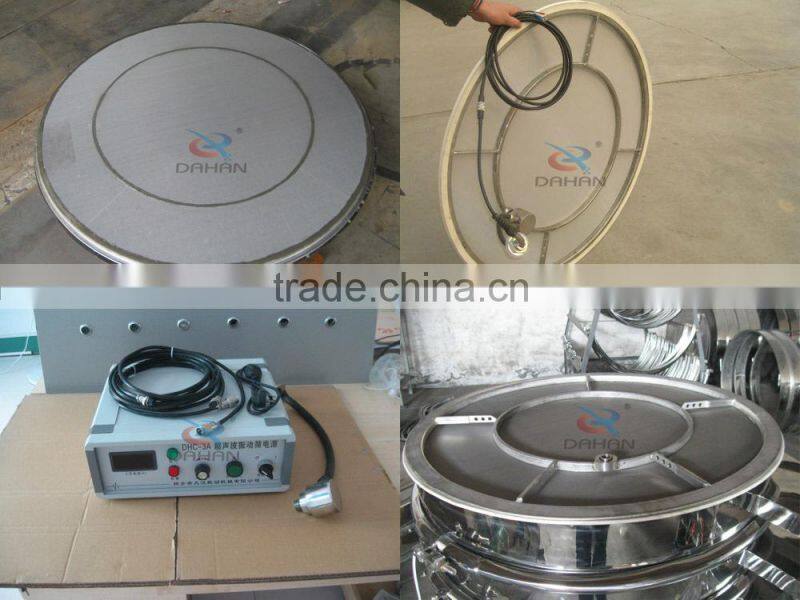

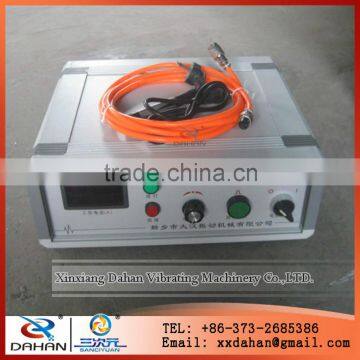

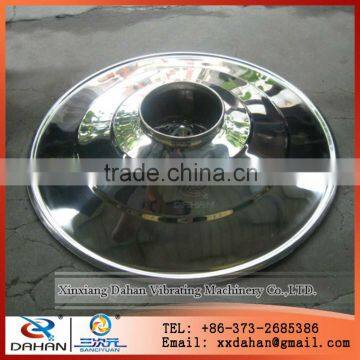

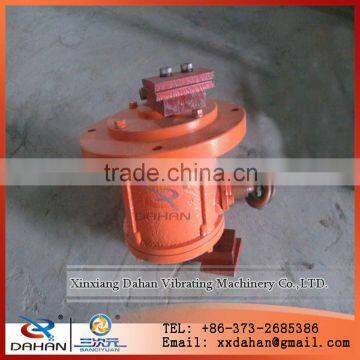

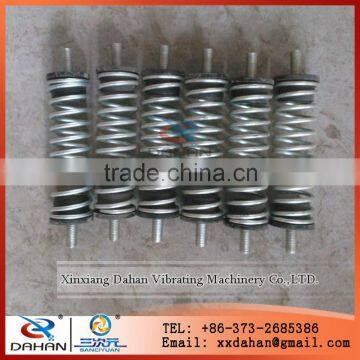

Ultrasonic vibrating screen detail image
Ultrasonia vibrating screen models
| Model | DHC-400 | DHC-600 | DHC-800 | DHC-1000 | DHC-1200 | DHC-1500 | DHC-1800 | DHC-2000 |
| Screening diameter | 340 | 540 | 730 | 900 | 1100 | 1400 | 1700 | 1886 |
| Screening area | 0.0907 | 0.2289 | 0.4183 | 0.6359 | 0.9499 | 1.5386 | 2.2867 | 2.7922 |
| sieve size | 80-600 mesh | |||||||
| Layer | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 |
| Power(vibrating motor | 0.18 | 0.25 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 2.2 |
Application ---- ultrasonic vibrating screen Ultrasonic
Ultrasonic vibrating sieve machine has prominent advantages in solving materials sieving problems such as high absorption, easy agglomeration, high static, high precision degree, light weight etc.
Applicable materials includes metallurgy powder, electromagnetic materials, metal powder, welding rod powder, iron powder, zinc, aluminum powder, alloy powder, cobalt powder, molybdenum powder, emery,copper powder, nickel powder, silicon, oxidize titanium, tungsten powder, titanium powder, stainless steel powder etc.
The packing and shipping
Products certification
Q&A:
Q: How to get a suitable machine?
A: 1. What is the raw material?
2. How much is the capacity you require? (L or KG per hour)
3. How many layers? What is the mesh size for each layer?
4. What's steel material? All stainless steel / All carbon steel / Carbon steel + stainless steel.
5. Power condition. 380V / 415V / 50HZ / 60 HZ?
6. Other special requirement. Example: Heat resistant, anti-static,etc.
