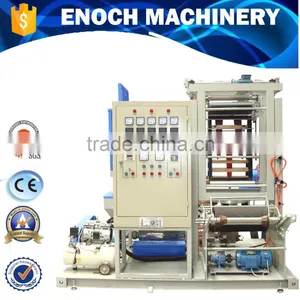

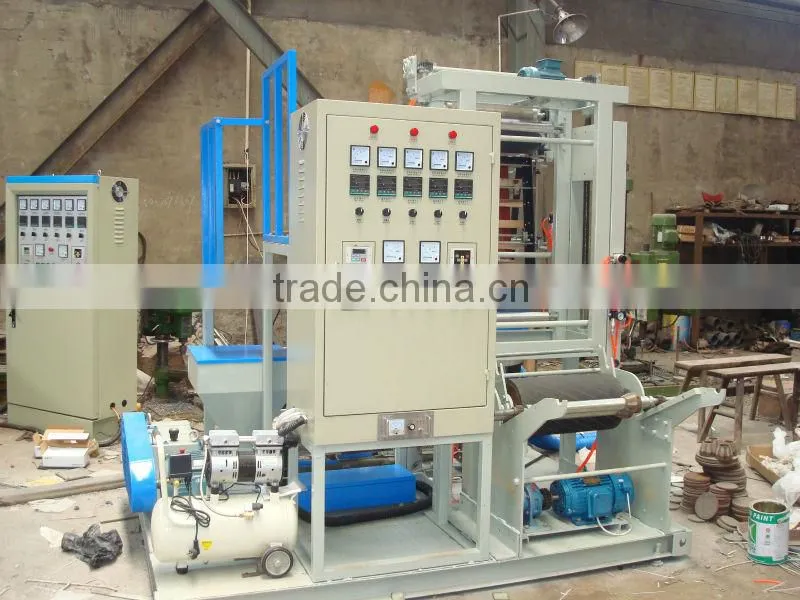

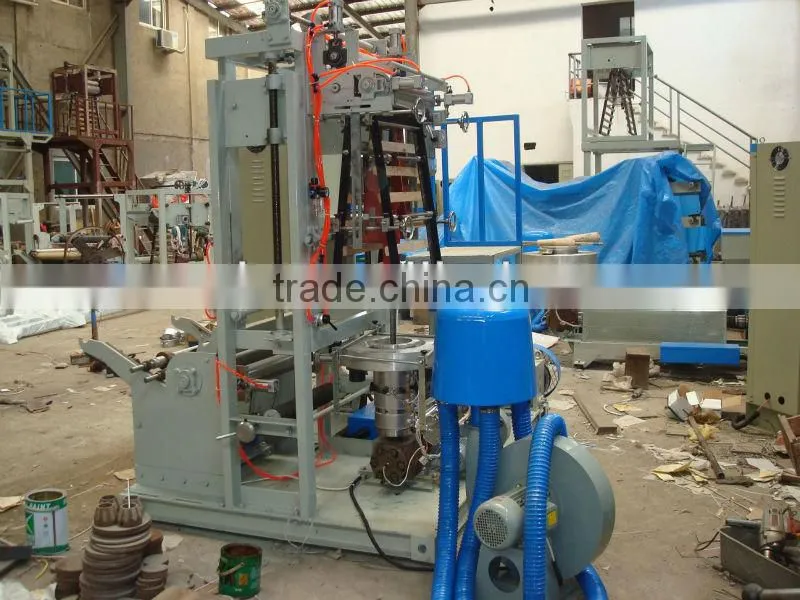

Help CenterEconomic Small Blown Film Machine (EN/H-35/40EM)
Related Products
-
Mini Type Plastic Shopping Bag Extrusion Machines Price ,shopping Bag Machine (EN/H-35/40EM)US$ 5,000 - 10,000MOQ: 1 Set -
EN-STA Single Layer Stretch Film Making MachineUS$ 27,000 - 50,000MOQ: 1 Set
-
EN-STA Single Layer Stretch Film Rewinding MachineUS$ 27,000 - 50,000MOQ: 1 Set
-
EN-STA Single Layer Automatic Stretch Wrap MachineUS$ 27,000 - 50,000MOQ: 1 Set
-
EN-STA Single Layer Cling Film MachineUS$ 27,000 - 50,000MOQ: 1 Set
MODEL |
EN/H-35EM |
EN/H-40EM |
SUITABLE MATERIAL |
HDPE |
HDPE |
FILM WIDTH |
200-400mm |
200-500mm |
FILM THICKNESS |
0.007-0.03mm |
0.009-0.03mm |
MAX.EXTRUSION OUTPUT |
20-30kg/hr |
25-35kg/hr |
EXTRUDER | ||
SCREW DIAMETER |
Φ35 |
Φ40 |
SCREW L/D LENGTH |
30:1 |
|
SCREW MATERIAL |
SACM-645/38 CRMOALA |
|
CYLINDER MATERIAL |
SACM-645/38 CRMOALA |
|
CYLINDER COOLING |
370W×2 |
370W×2 |
MAIN MOTOR |
7.5kw |
11Kw |
TEMPERATURE CONTROL |
3 |
3 |
AVERAGE POWER-CONSUME |
9kw |
11Kw |
DIE SIZE |
Φ40/50 |
Φ40/60 |
TEMPERATURE CONTROL |
3 |
3 |
AIR RING |
1 |
1 |
AIR BLOWER |
1.1kw |
1.5Kw |
TAKE-UP UNIT | ||
ROLLER WIDTH |
φ165×550mm |
φ165×550mm |
EFFECTIVE WIDTH |
500mm |
500mm |
TAKE-UP SPEED |
10-100m/mi |
10-100m/min |
TAKE-UP MOTOR |
0.75kw |
0.75Kw |
WINDING UNIT | ||
TYPE |
SURFACE FRICTION TYPE |
|
WINDING MOTOR |
6N.m |
6N.m |
WINDING SPEED |
10-100m/min |
10-100m/min |
OVERALL DIMENSION(L×W×H) |
2.7×2.6×3.8m |
2.7×2.6×3.8m |

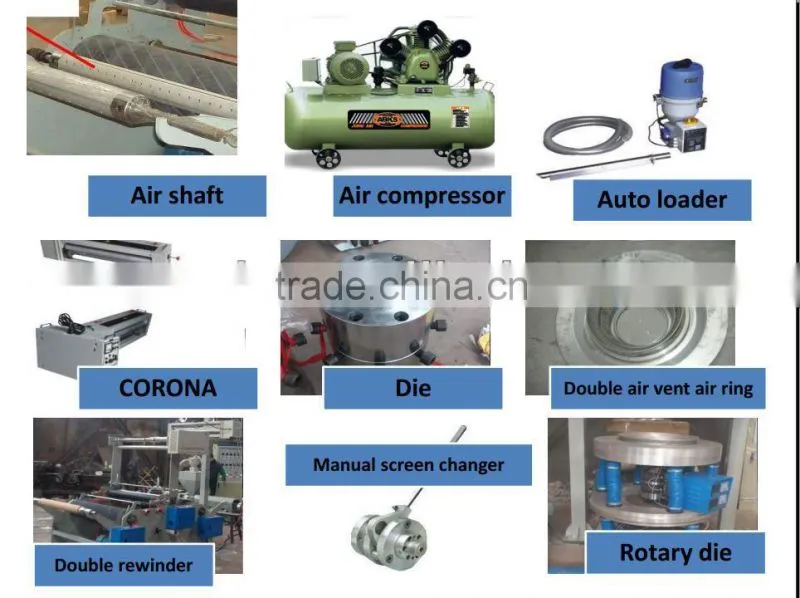

Optional equipment
Our Services
Within one year, we will supply spare parts for free and free DHL,and replace the broken part freely within one year.
Our Engineer service:
We will send technician to customer’s factory to install the machine and teach the worker to operate the machine. And the customer should pay all the cost.

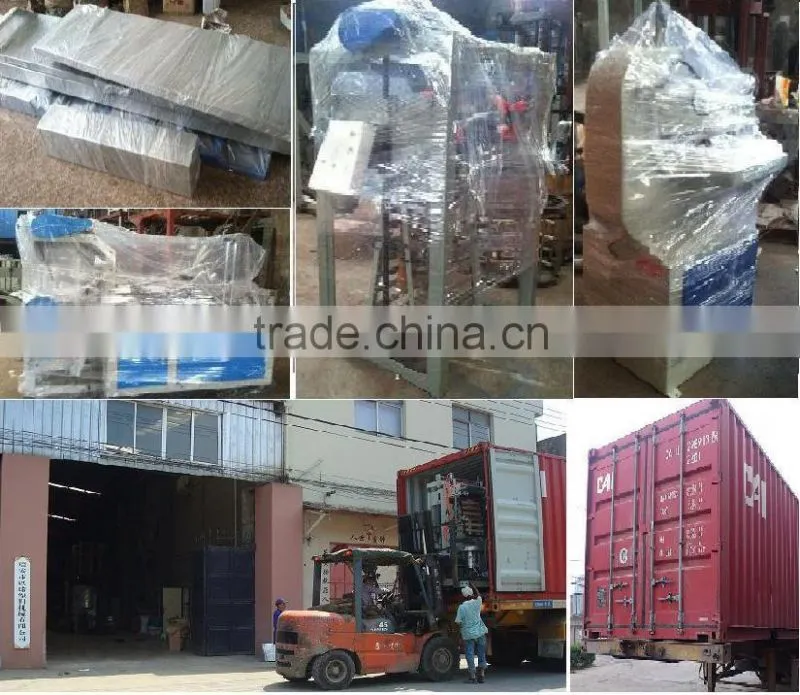

Packaging & Shipping
Packaging:first packed by film.then fix by stretch film.
shipping:Loading container in factory

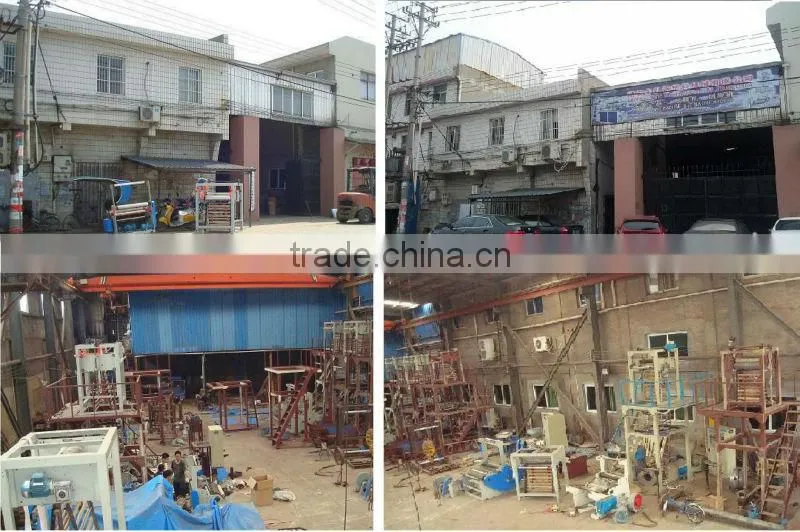

ABOUT US
Ruian Enoch Plastic Machinery Co.,Ltd landed in Ruian city, Zhejiang province. The professional manufacturer of plastic bag machinery ,especially film blowing machine .Our company’s main product is High speed HDPE film blowing machine, Rotary die head PE film blowing machine, three layer co-extrusion film blowing machine, etc kinds of film blowing machine, stretch film machine, plastic bag machine, no-woven bag machine and printing machine. Our products are sold all over China, also we export our machines to Southeast Asian, Middle East, Latin America, Russia, Africa. And we receive very good reputation from our customers.
Our concept is “Gain reputation from Quality, Gain Brand from Reputation, Gain Market occupancy from Brand”. We pay close attention to staff management and after-sales service, focus on scientific and technological progress and information, continue to grow and develop us. Also we welcome any feedback from our customer to improve our quality and service.
Pls feel free to contact me by SKYPE, WECHAT ,or call me ,i would glad to hear from your inquiry .
Ms Phil Chen
Tel: 0086-577-65111018 Fax: 0086-577-65111028
Mobile: 008613967712350 Wechat: phil13967712350
Skype: enochmachine.phil
QQ:1494568316
