Double Die Head High Speed Film Blowing Machine(EN/H-C-2W)

Double Die Head High Speed Film Blowing Machine(EN/H-C-2W) thumbnail-1
Double Die Head High Speed Film Blowing Machine(EN/H-C-2W) thumbnail-2
Double Die Head High Speed Film Blowing Machine(EN/H-C-2W) thumbnail-3
Double Die Head High Speed Film Blowing Machine(EN/H-C-2W) thumbnail-4
Double Die Head High Speed Film Blowing Machine(EN/H-C-2W) thumbnail-5
Double Die Head High Speed Film Blowing Machine(EN/H-C-2W) thumbnail-6
Double Die Head High Speed Film Blowing Machine(EN/H-C-2W) photo-1
Double Die Head High Speed Film Blowing Machine(EN/H-C-2W) photo-2
Double Die Head High Speed Film Blowing Machine(EN/H-C-2W) photo-3
Double Die Head High Speed Film Blowing Machine(EN/H-C-2W) photo-4
Double Die Head High Speed Film Blowing Machine(EN/H-C-2W) photo-5
Double Die Head High Speed Film Blowing Machine(EN/H-C-2W) photo-6
US$ 6,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Film
Plastic Processed:
PE
Contact Supplier Request Quote Chat Now
Ruian Enoch Plastic Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Film
Plastic Processed PE
Blow Moulding Type Extrusion Blow Moulding
Automatic No
Place of Origin Zhejiang, China
Brand Name ENOCH
Model Number EN/H-C-2W
Voltage 380V
Power(W) 18.5kw/22kw/30kw/37kw/45kw
Dimension(L*W*H) 5.0*3.5*4.5m
Weight 3000KGS
Certification CE SGS
Warranty ONE YERA
After-sales Service Provided Engineers available to service machinery overseas

Double Die Head High Speed Film Blowing Machine (EN/H-C-2W)

Double Die Head High Speed Film Blowing Machine(EN/H-C-2W)



Product Description

This machine set is used for blowing Low-density polyethylene (LDPE) and high- density polyethyene (HDPE) plastic film to make various vest bags and flat-rim bags which have been widely used for packing in the food industry, garment industry and textile industry, etc.
Characteristics:
Both the cylinder and the screw of the extruder are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance., Scientifically designed, this machine set has two heads for one extruder with such advantages as increasing production capacity, saving energy, labour and workshop area, etc.


Technical Paremeters



MODEL

EN/H-45C-2W

EN/H-55C-2W

EN/H-65C-2W

SUITABLE MATERIAL

HDPE

FILM WIDTH

150-500mm

150-600mm

300-800mm

FILM THICKNESS

0.008-0.03mm

0.008-0.03mm

0.008-0.05mm

EXTRUSION OUTPUT

25-45kg/hr

30-70kg/hr

50-100kg/hr

EXTRUDER

SCREW DIAMERET

φ45

Φ55

Φ65

SCREW I/D LENGTH

30:1

SCREW MATERIAL

SACM-645/38 CRMOALA

CYLINDER MATERIAL

SACM-645/38 CRMOALA

CYLINDER COOLING

370KW×2

550KW×3

550KW×4

DRIVING MOTOR

15Kw

22Kw

37kw

TEMPERATURE CONTROL

 3

 3

 3

AVERAGE POWER-CONSUME

18KW

30KW

40KW

TYPE OF DIE

DIE SIZE

φ40/60×2

φ60/80×2

φ80/100×2

AIR BLOWER

 1.5KW×2

1.5KW×2

 2.2KW×2

TEMPERATURE CONTROL

2

AIR RING

2

CENTER STEADY STICK

2

TAKE-UP UNIT

ROLLER WIDTH

φ165×550mm

φ165×650mm

φ165×850mm

EFFECTIVE WIDTH

400mm

500mm

600mm

HEIGHT ADJUSTABLE TYPE

700mm

700mm

700mm

TAKE-UP SPEED

10-100m/min

10-100m/min

10-100m/min

TAKE-UP MOTOR

0.75KW

0.75KW

1.5KW

WINDING UNIT

 TYPE

SURFACE FRICTION TYPE

WINDING MOTOR

6N.M

8N.M

10N.M

WINDING SPEED

9-110m/min

9-110m/min

10-110m/min

OVERALL DIMENSION

5.0×3.5×4.5m

5.0×3.9×4.5m

6.5×3.9×5.0m



Machine Details

  Double Die Head High Speed Film Blowing Machine(EN/H-C-2W)

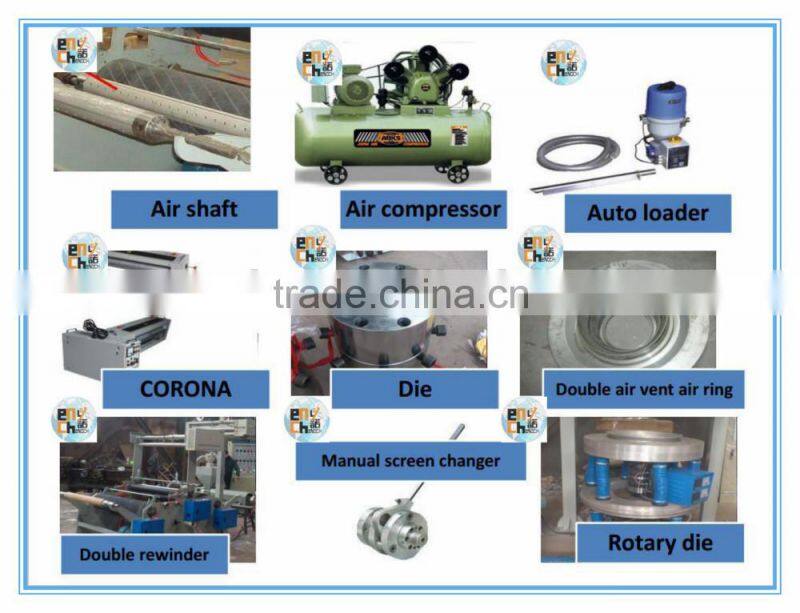

Optional Device

Double Die Head High Speed Film Blowing Machine(EN/H-C-2W)

Packaging & Shipping

Double Die Head High Speed Film Blowing Machine(EN/H-C-2W)

Our Services



Guarantee period and after-sales services:

12 months since installation finish and machine normal working. During this guarantee period, RUIAN ENOCH will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, RUIAN ENOCH will provide spare parts at cost price.



Long-term service:

RUIAN ENOCH will charge the buyer the cost price of spare parts beyond guarantee time and provide long-term technical guide.


Engineer service:

Installation and Adjusting: If required, the seller will dispatch the technician to your country for installation, commissioning, adjusting the machine and training the workers at your plant. After the Machine arrived destination and the customer wants our technician help them running the machine, we will sent our technician to the place of our customer’s factory and training them, but they should pay the charge as bellowed:1: The charge of the VISA 2:The ticket of the air plane from Our city to the Destination place and the Destination place to our city.3:Hotel 4:Pay the salary to the technician 100 USD per day.
