Specifications
1.long history wrapper manufacturerund price with excellent quality
3.mainly export to U.S & Euro
4.CE certificated
FBI Packing Co.,Ltd is specialized in manufacturing and exporting with wide range of stretch wrapping machines.
We are the world leading manufacturer of stretch wrapping machine.
We adopt PLC and frequency transducers control system for easy operation and reliable performance, requiring no maintenance.
Since establishment in 1994, FBI is making great progresses in the packing industry, with more expertise in the field of wrapping machine. Our products have been CE certificated with its reliable and stable quality.
Our experience and knowledge of packing machinery enable us to provide perfect solutions to meet specific packaging needs with different industries.
Don’t hesitate to contact us. Leave us a message and let’s find the solution.

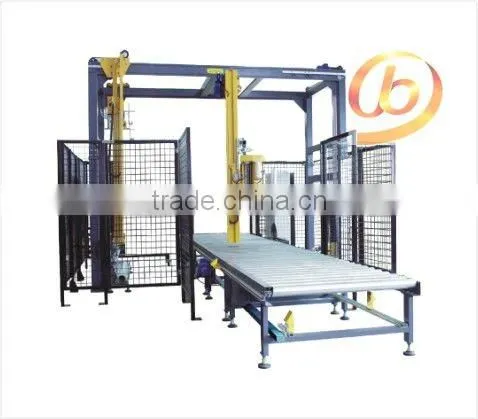

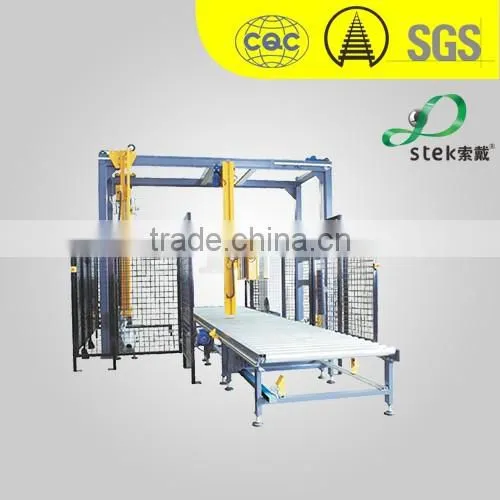

Auto Rotary with Dispensing Wrapper is conveyorized wrapper for automated unmanned packing lines. The machine automatically senses & centerize, wraps film around, covers the top and conveys the pallets. Roller, belt, chain, or board type conveying equipments could be used. System could be custom engineered according to specific products and different field requirements. The machine consists of frame, rotary wrapper, motorized conveyors, auto film apply & cut device, top sheet dispensing unit and control box. This system is ideal for modernized plants in industries such as food & beverage, chemicals, paper making, building materials, electric & electronics, etc.
| Technical Specifications | ||||
| Overall dimensions | 3200mm (L) X 3220mm (W) X 3120mm (H) | |||
| Turntable height | 456mm | |||
| Machine Weight | 1800kg | |||
| Top sheet size | Width 1800mm,length variable | |||
| Pallet sizes | 500-1200mm(L)×500-1200(W)×1800mm(H) | |||
| Maximum load weight | 2000kg | |||
| Throughput | 20-30pallet/hour | |||
| Rotation speed | 0-20 rpm,speed variable,turntable soft start&soft stop | |||
| Film carriage lift speed | 3m/min | |||
| Top sheet pulling speed | 12m/min | |||
| Conveyor height | 450mm | |||
| Conveyor speed | 0-12m/min | |||
| Controller | PLC, Touch screen | |||
| Working mode | fully auto | |||
| Power requirements | 3PH380VAC, 50/60Hz, 20A, 2.5kw | |||
| Air pressure | 0.4-0.7Mpa | |||
| Cutting Method | Heater | |||
