Home > Products > Indoor Led Display Full Color > electronics new product SMD indoor usage P10 module led module
electronics new product SMD indoor usage P10 module led module
- 300000 Piece / Pieces per Month
- Shanghai
- T/T
- beautiful video p6 indoor full color led display xxx video xx pane
- Ali express ph10 module 16x32 SMD led module indoor led display
- high definition sexy picture 5mm pixel SMD led screen for advertising
- programmable p3 indoor full color LED church curtains
- p4 stage back screen / high quality indoor p4 hd super thin led screen vi
- Indoor 5mm pixel smd led display screen company alibaba
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | JD | Model Number: | smd indoor full color P10 led module |
Usage: | Indoor | Tube Chip Color: | Full Color | Display Function: | Video |
Pixels: | 10mm | Screen Dimension: | 320x160mm |
Packaging Details
ph10 rgb module 16x32 SMD led module 1/8 scan indoor led display
1) cartons lined with shockproof cystosepiment used to package LED module
2) good quality wooden cases used to package LED cabinet
3) cargo container according to the size of product and the customer's request
Product Description
Specifications
p10 smd indoor full color led display1) high brightness 1000nits
2) easy to install and control
3) long life span100000 hour
Indoor full-color P10 led module | Pixel Composition | 1R1G1B |
Pixel (mm) | 10mm | |
Density(dots/m2) | 10000 | |
Brightness(cd/m2) | ≥1000 | |
Viewing Distance(m) | 5-55 | |
View Angle | H:120°,V:120° | |
Display Card | DVI card | |
| Control Mode | Synchronous/Asynchronous |
Why you choose us ? | scan Mode | 1/8 |
1.Certifications of CE,CCC,ULand ISO9001 | usage | indoor |
2.Attractive factory price and high quality | Working Temperature(°C) | -25-- +85°C(for working) |
3.Professional factory and sales team | Working Humidity | 10%-95%RH |
4.Efficient and timely communication | Model Size(mm) | 320*160 |
5.Company audited by BV | Cabinet Material | Steel/Aluminum |
6. Good after sales service | Lifespan | 100,000 hours |
7. Two year's warranty |

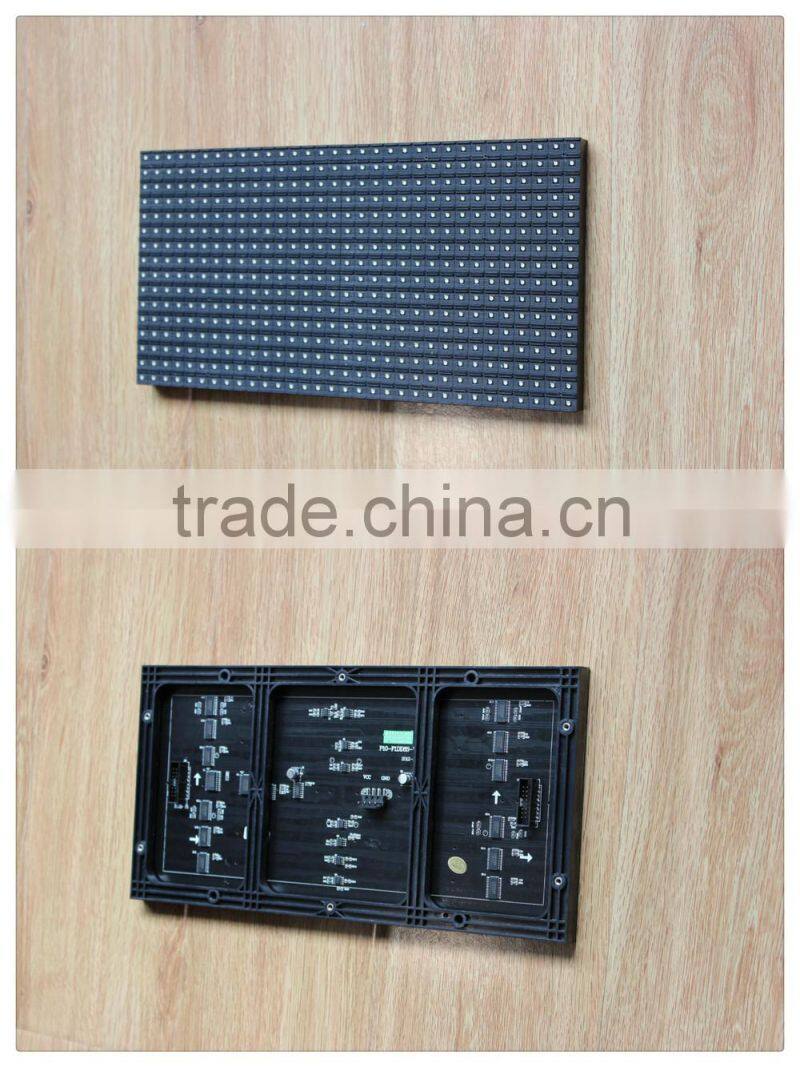

realistic picture
module size:32mmx160mm
led package:SMD3528
color:full-color
led chip brand:EPISTAR(Made in Taiwan)
There are five Key indicators of LED display:
1) brightness and visual angle
2) uniformity and clarity
3)the out of control rate
4)the lifespan
5) energy consumption and energy efficiency.
To assure the LED goods intact, we use shockproof packages and carry them cautiously.
Usage Considerations of LED Display
1.Switching sequence
1) screen switching sequence:
on: first turn on the computer, then screen
off: first shut off screen, then computer.
2) Interval of switching LED display must be greater than 1 minute.
2. Ambient temperature
When ambient temperature is too high or cooling condition is bad, users had better not to turn on the screen for a long time.
Screen shall be installed in temperature from-10 °C to 40 °C.Over environment temperature range, temperature control equipment must be installed.
It is forbidden to install LED display near any heat source.
3.Ambient humidity
When installing screen, ambient relative humidity should be in the range from 30% to 70%.It is prone to get static electricity when the indoor humidity is below 30%;
when the indoor humidity is higher than 70%, electronic components are easy to get damp.
4.Corrosive gas environment
Please do not install the display in corrosive gas environment containing acid or base components, such as chemical warehouse.
5. Electromagnetic radiation environment
Please do not install display when electromagnetic radiation and radio frequency radiation environment is over field strength 5V/m.
If necessary, isolation treatment should be taken.
6.Steady power supply
If necessary, users have to install surge switches in the distribution box and ground fault protection to avoid lightning strikes.
Do not use the display in strong lightning and other severe weather.
7. Conductive material is strictly prohibited to contact display, such as metal dust and water.
Screens are placed in the environment of low dust as far as possible, otherwise it will affect the display effects, as well as damage the circuit.
If exposed to water for various reasons, please immediately power down until the screen unit dry.
8.Controlling colors
Do not display a long time in a white, red, green, blue or other bright screen, because this will affect the display lifetime.
9.Controlling time
LED display at least rest 2 hours a day. Normally turn on the screen at least twice a week or more (Especially in the rainy season it is necessary to turn on the display every day).
And it maintains more than 2 hours every time.
10.Regular overhaul
LED display requires regular inspection to check circuit damage. If it does not work, change it in time. If circuit damages, it should be repaired or replaced.
11.Security alerts
Users must ensure safety while installing Led display. The factory only offers products and reference programs of frame fixation.
Users can ask relevant authorities to confirm according to local conditions and field condition
Jiangsu JD Electronics Co., Ltd. was founded in June 2002 of which headquarter is located in Yizheng High-tech Development Zone of Yangzhou.
It includes manufacturing center – Jiangsu JD Electronics, marketing center – Yangzhou JD Electronics, R&D center – Nanjing JD Electronics.
JD specialized in LED display and LED lighting. From manufacturing, R&D to engineering installation, we provide one-stop service. At present,
annual production of LED display module amounts to 300 thousand and LED lighting module amounts 1 million pieces. We are members of Display
Branch of China Photoelectricity Institution and Nanjing Lighting Institution.Our products have obtained silver medal of Chinese Famous Brand Exposition,
Jiangsu Province Famous Brand Product and Yangzhou Famous Brand. And our company has passed ISO9001-2008 quality system certificate; products
have passed CCC, CE, RoHS, UC certificate.
JD has won wide trust and good repute due to its stable quality, reasonable price and professional service. In the path of development,
we have realized that it is important to regard customer as the center. We will as always carry on the spirit of enterprise- dedication, teamwork, innovation.
Welcome to JD electronics!
1) Don't understand the LED products very well? It doesn't matter! We will help you choose the goods according to your request.
You just need to tell us the viewing distance, usage(indoor, outdoor or semi-outdoor),screen dimesion, color etc. We will give you
the best program.
2) Don't know how to set up the screen? Never mind! Our technicists will help you solve the problem.Also you can choose our full
screen or cabinet.
3) Any problem after sale can contact our after-sales Technical Support to get solution.
