Specifications
CAT.6A shielded FTP/STP Keystone Jack1. Goldplated 1U~50U
2. Test limit: TIA CAT6A Perm. Link-6db
Designed for superior performance that meets or exceeds industry standard Category 6/Class E according to TIA/EIA 568B 2.1 and ISO/IEC 11801. This panel-type half shielded RJ45 jack includes 110-type IDC termination with strain relief caps, and comes standard with 50 µinch gold plating on the jack contacts.
The shielded top cover is designed for easy cable installation and protection from external radiated noise. Use for any unloaded keystone wall plate or patch panel.
Please Note: Our keystone jacks will work with our wall plates and surface boxes, or any standard keystone and angled multimedia wall plate or patch panel.

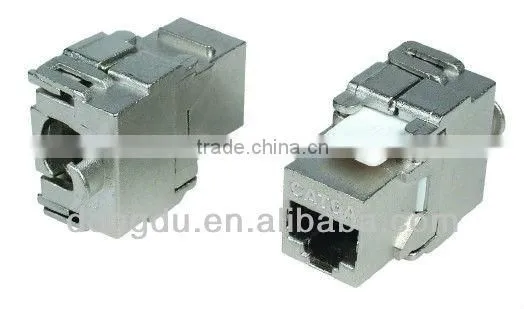

CAT.6A FTP/STP KEYSTONE JACK/10GB
-----------------------------------------------------------------
PRODUCT DESCRIPTION:
MATERIAL:
1. Housing: High Impact Flame Retardant Polycarbonate
2. Shielded Shell: Zinc Alloy
3. Spring Wire: Phosphor Bronze plated with 1U to 50U thick gold over nickel undercoat
4. IDC Contact: Phosphor Bronze plated with 50U thick Tin over Nickel undercoat.
TECHNICAL SPECIFICATION:
1. Current Rating: 1.5 Amps
2. Insulation Resistance: 500 Megaohm
3. DC Resistance: O.1 ohm Max.
4. Voltage: 150 Vac Max.
5. Insertion Life: 750 Mating Cycles
6. Plug Retention Force: 20 lbs
7. Temperature: - 40°C~70 °C
8. IDC Accept: 22-26 AWG Solid Wire
9. Test limit: TIA CAT6A Perm. Link-6db
