specification:
Low insertion and back reflection loss
High precision alignment
Nickel plated brass body
Factory price

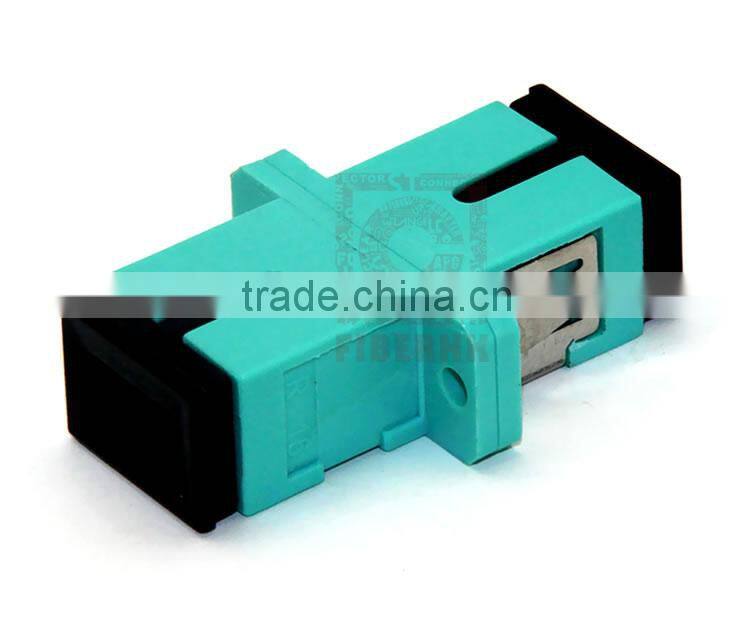

SC SX Fixed Fiber Optic Adapter/Coupler in Best Price with Flange
Features
Telcordia, ANSI, TIA/EIA, and ISO compliance
Color coding & polarization
High precision alignment
Low insertion and return loss and back reflection
Application
CATV system
Active device/transceiver
Telecommunication networks
FTTH and FTTX; Metro; Multimedia
Data processing networks; Video
Premise installation
Gigabit Ethernet; Testing equipment; Fiber LAN
Techical Specification
Product Type |
SC Adapter |
|
Mode |
Single mode |
Multi mode |
Insertion Loss |
≤0.2dB |
≤0.3dB |
Return Loss |
≥45dB |
-- -- |
Mating Durability (500times) |
Additional Loss≤0.1dB Return Loss Variability<5dB |
|
Temperature Stability(-40°C~85°C) |
Additional Loss≤0.2dB Return Loss Variability<5dB |
|
Operating Temperature |
-40°C~+75°C |
|
Storage Temperature |
-40°C~+85°C |
|
Order information
TBC |
— |
SC |
/ |
PC |
— |
SM |
— |
SX |
|||||||||
0 |
1 |
2 |
3 |
4 |
|||||||||||||
0 |
Brand name |
||||||||||||||||
1 |
Connector : LC,SC,FC,ST,E2000,DIN,D4,MU,MTRJ,etc. |
||||||||||||||||
2 |
Lapping Way : PC&APC |
||||||||||||||||
3 |
SM = Single mode MM = Multimode |
||||||||||||||||
4 |
Fiber Number SX(Simplex) or DX(Duplex) 4X |
||||||||||||||||
Optional Accessory
Product Components
Optional Accessories
Specification
If you have any need, please contact me at any time!
Linda
Skype: Linda-LSXZYB
Tel: 13632900370
Conventional Parameters
Net Weight : 2.6g
Product Material : ABS/PBT
Packing Quantity : 3000pcs
Gross Weight : 15Kg
Carton Size : 54*38*33 CM
Volume : 0.068 m³
Product Style : SC SX Fixed Fiber Optic Adapter/Coupler in Best Price with Flange
Color : Blue;Green;Beige;Dark green;Custom
Insertion Loss : ≤0.3dB(PC)≤0.2dB(UPC)<0.2dB(APC)
Return Loss : ≥40dB(PC)≥50dB(UPC)≥60dB(APC)
Storage Temperature : -40 - +120 °C
Operating Temperature : -40 - +80 °C (PBT Operating Temperature : -40 - +120 °C )
Tensile Test : ≤0.1dB(0-15Hg, Do not contain φ0.9mm)
Vibration Experiment : ≤0.1dB(10-60Hz,1.5mm)
Repeatability : ≥1000
Drawing force: 100N
Full-inspection Adapter
Area of Applications
- Telecom network
- CATV network
- Ethernet network
- Optical communication equipment
Specifications
| Item | Insertion Loss | Mechanical resistance | Repeatability | Operating Temperature |
| SM/PC | </-0.2dB | 100-300g | <0.2dB(1000times) | -40°C ~ +80°C |
| SM/APC | </-0.2dB | 100-300g | <0.2dB(1000 times) | -40°C ~ +80°C |
| MM/PC | </-0.3dB | 100-300g | <0.3dB(1000times) | -40°C ~ +80°C |
Ordering Information
| Item | Mounting | Sleeve Material | Adapter Material | Colour |
| SM/PC Simplex | 2 Flange | Zirconia Ceramic | Plastic | Blue |
| SM(APC8o) Simplex | 2 Flange | Zirconia Ceramic | Plastic | Green |
| SM/PC Duplex | 2 Flange | Zirconia Ceramic | Plastic | Blue |
| SM(APC8o) Duplex | 2 Flange | Zirconia Ceramic | Plastic | Green |
| SM/PC Duplex | 2 Flange | Zirconia Ceramic | Plastic | Blue |
| SM/PC Simplex | 2 Flange | Zirconia Ceramic | Plastic | Blue |
| MM/PC Simplex | 2 Flange | Ceramic/ phosphor bronze | Plastic | Beige |
| MM/PC Duplex | 2 Flange | Ceramic/ phosphor bronze | Plastic | Beige |
| MM/PC Duplex | 2 Flange | Ceramic/phosphor bronze | Plastic | Beige |
1. Works as expected ".
2. " Inexpensive, great product and very easy to use ".
3. " Cheap, works perfectly ".
4. " If you are looking for adapter, do not be afraid to buy it here".
5. "Super price and very good quality."
Question 1: Do you provide free samples?
Answer 1: Yes, of course. We are very glad to provide 1-3 pieces products to our customers to confirm our quality.
Question 2: What the Payment Terms do you accept?
Answer 2: We accept L/C at sight, L/C 60 days, 30% TT deposit, 70% Balance before shipment,Western Union, Paypal, D/P, NET 30 days, NET 60 days.
Question 3: Can I get any discount if I order large quantities?
Answer 3: Yes, of course. We will provide a special price for large orders.
Question 4: Why you choose us?
1. We accept small quantity , delivery fast , also accept paypal
2. Competitive price , because we are factory.
3.Environmently friendly, energy-saving, complying with the safe certification standard.
4.High Quality Competitive Price
5. Welcome OEM & ODM
About packaging:
Packaging Detail: |
customized packages are acceptable |
Delivery Detail: |
4 to 5 days |
About shipping:
1.We ship items by DHL/FEDEX/UPS/EMS/TNT,ETC.,you can choose by yourself.
2.We hope goods arrive on time,but since this is an international delivery,shipping time will be highly depended on the courie company and local customs/duties.Thank you for your kindly understanding.
Welcome to our factory
