EP Welding ------ TOP INDUSTRIAL WELDING MACHINE SUPPLIER!
Double moudle IGBT metal plasma cutter 100A
Model: LGK-100 IGBT Double Mouldle Inverter Technology
OEM/ODM is highly welcome!
1. Simple and reliable controlling procedure, low malfunction rate, easy to maintain;
2. Using compressed air which guarantees safe and reliable operation;
3. Intelligent protection: Over-heat, over-voltage, over-current protection;
4. Adjustable output current to satisfy the cutting of various materials & thickness of workpiece;
5. Fast cutting speed, smooth incision, no deformation and high utilization rate of sheet materials;
6. LGK-100 and above can be connected to the CNC, to realize the cutting automation.
Techinical Parameter: Double moudle IGBT metal plasma cutter 100A.
| Model | LGK-80 | LGK-100 | LGK-120 | LGK-160 |
| Related Input Voltage(V) | 3 Phase 380V±10% 50HZ | |||
| Rated Input Capacity(KVA) | 11.6 | 17.1 | 21 | 27 |
| Rated Input Current(A) | 19.4 | 26 | 32 | 41 |
| No-load Voltage(V) | 260±5 | 260±5 | 260±5 | 260±5 |
| Output Current(A) | 30-80 | 30-100 | 30-120 | 30-160 |
| Rated working voltage(V) | 105 | 120 | 128 | 144 |
| Related Duty Cycle(%) | 60% | 60% | 60% | 60% |
| Cutting Thickness(MM) | ≤22 | ≤30 | ≤35 | ≤50 |
| Working Air Pressure(MPA) | 0.35-0.5 | 0.35-0.5 | 0.4-0.6 | 0.4-0.6 |
| Way of Arc Start | HF | HF | HF | HF |
| Insulation Grade | F | F | F | F |
| Type of cooling | Gas-cooled | Gas-cooled | Gas-cooled | Gas-cooled |
| Weight(KGS) | 25 | 43 | 45 | 49 |
| Dimension(MM) | 480×256×435 | 650×320×560 | 650×320×560 | 650×320×560 |

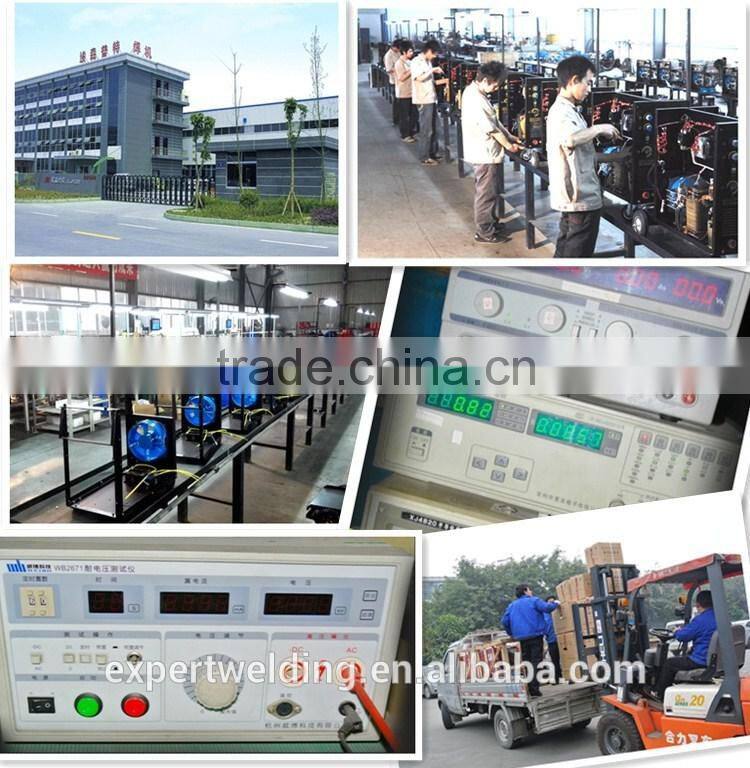

High quality control start from every precious components!
Double moudle IGBT metal plasma cutter 100A is usually packed with carton and plywood. Pallet packing is acceptable too.
1. Warranty: Free 1 year warranty for all EXPERT welding machine;
2. Quick response: Experianced professional sales support in-24hours response for your questions and product inquiry;
3. Spare parts: 1 set of free spare parts(in our standards) will be provided for replacement for every 20pcs machines;
4. Technical Support online: Maintenance manual or video service, We provide online support according to your picture or video feedback. Customized after-sales service according to different conditions;
5. Training: Free onsite Product training is available at our factory if client request.
