B.R.D PU sandwich panel for roof room
Model
Specification
1).Density(kg/m³): Over 42 |
2).Impact Strength (Kpa): over 150. |
3).Water Absorption Rate:less than 0.118 |
4).Temperature Range: -200°C~+150°C Specs |
5).Heat Transfer Coefficient: <0.022 W/m*K; |
6). Cubic Area Change : <1% (-30 C-100 C/96h); |
7) .Have acquried "the Chinese Green Environmental Products" title |
8).Have passed ISO 9001:2000 Standard |
|
9 Delivery time :we brought in world class continous line,we can produce 2000 squaremeters' panel everyday.always 7 days after receipt of deposit. |
10)Packing way :packing by good-quality Plastic paper |
|
11) Terms of payment : Irrevocable L/C at sight or T/T 50%as the deposit ,another 50% transfer to our account after showing the copy of lading bill. |
|
12) color of the steel is RAL 9002 Grey white color.vairious colors are available. The thickness of steel sheet are 0.35mm,0.4mm,0.45mm,0.5mm.The standard width of the panel is 990mm.The thickness of PU is 50mm,75mm,100mm,120mm,150mm,180mm,200mm. |
13)Panel thickness: 50mm/75mm/100mm/120mm/150mm/180mm/200mm |
Most advantage:
Energy-saving, light weight, environmental protection
Area-saving, sound-insulation
Waterproof, dampproof, fire-proof
Hanging force, anti-seismic and impact resistance
Largest span and height thin webbed wall
Most civilized, environmental, high efficiency construction
For interior and exterior wall partition on steel or concrete structure building,new construction or renovations. It can replace construction materials such as block,wire spatial grid structure perlite board, perlite porous board and etc.
It can widely be applied to wall materials of various high and low buildings such as bank,office building, hospital, school, hotel, mall, amusement, old house reconstruction, residence and workshop.
1. Heat and sound insulation:
The outer steel sheets can maintain the lastingness of the color of the building, and reduce the solar radiation and keep the appropriate indoor temperature. The high quality heat insulation materials are made with the adoption of polyurethane PU and (PIR) polyisocyanurate resin acid hydrogen containing no Chloro-fluoro-carbons (CFC).
2. A degree inflaming retarding:
This system can effectively prevent the fire and prevent the fire from spreading during the cross construction and during the use of the boards
3. Environment protection:
By learning after the successful experience in environment protection constructions from companies home and abroad and through our scientific analysis, we objectively bear the idea of "low carbon designing, environmental building materials and energy-saving technology" in mind.
4. Super-low heat conductivity:
The lowest heat conducting coefficient of the heat insulation boards ensures that, under the condition that the thinnest heat insulation materials are used; The system can meet the energy-saving requirement and offer the strongest basic guarantee to meet the requirement of high standard heat insulation
5. Our polyurethane roof panel are tightly connected blind nailing
6. Easily and quick installation

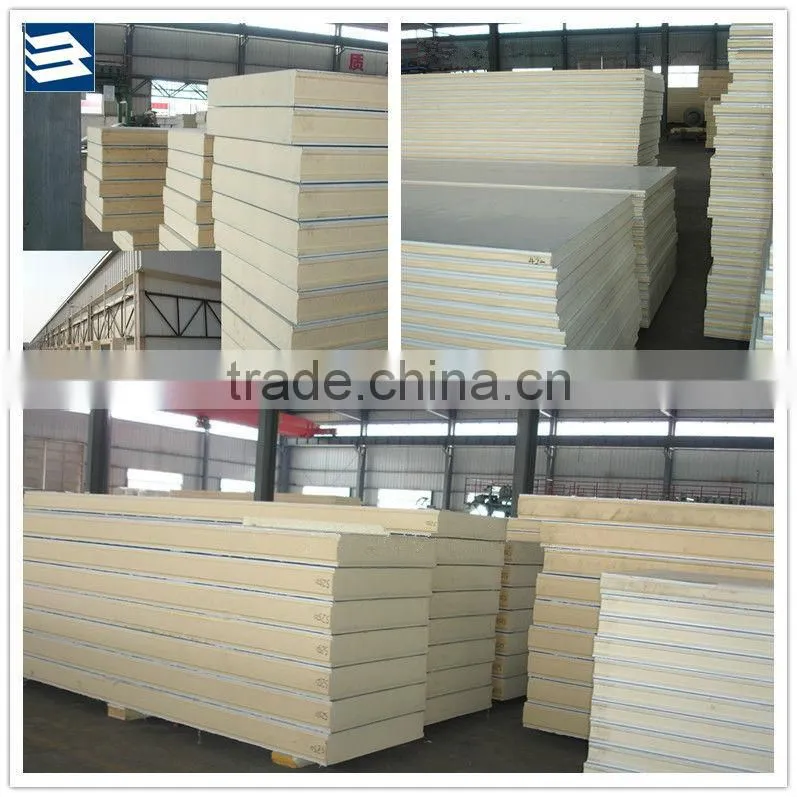

Production line
If you have any needs, pls contact us.Welcome to our factury.
