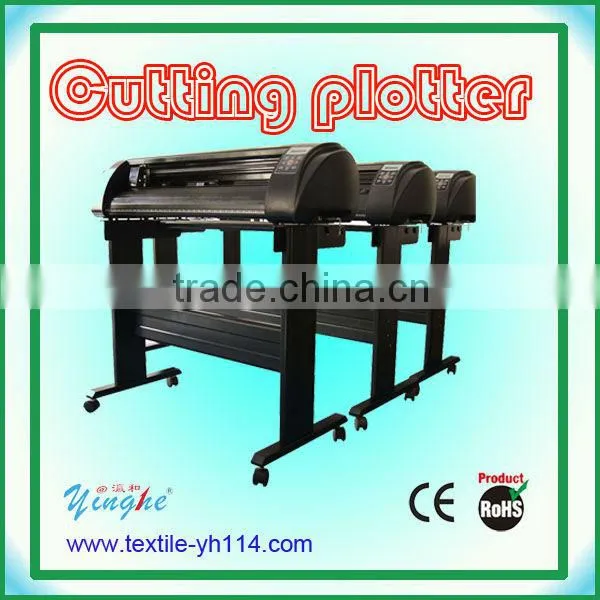

High Qualiy Cuting Plotter 1350mm With Sensor to Detect Mark Optics

Name: High Qualiy Cuting Plotter 1350mm With Sensor to Detect Mark Optics
Brand: yinghe
SKU: 120109409
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

yinghe

Model Number:

YHS-1350

Guangzhou Yinghe Electronic Instruments Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name yinghe

Model Number YHS-1350

Voltage 110V-220V

Cache Capacity 512K

Paper Feed Width 1350mm

Cutter Pressure 10-600g

Cutting Width 1250mm

Cutting Speed 1000mm/s;Y axis max cutting 2010mm/s

Driver DSP 64 Sub-Dvide high-precision step motor

Repeat Cutting yes

Size 1750*386*330mm

Specifications

1. cutting plotter with sensor
2. with 1set artcut software
3. USB connector
4. Can use coreldraw for output
5. papal accept

Parameter
Model	YHS-720	YHS-850	YHS-1100	YHS-1350
Max. paper feeding width	720mm	800mm	1100mm	1350mm
Max.cutting width	620mm	750mm	1000mm	1250mm
Max. cutting speed	Whole cutting:1000mm/s;Y axis max cutting 2010mm/s
Cutting Force	10-600g
Memoray	512k can be update to 8M memorary
Mechanical resolution	0.0191mm/step
Repeating precision	0.127mm(0.00049")
Interface	RS-232USB or U Flash
Luanguage Format	DM/PL/HPGL
Power Supply	AC160V-AC260V 50-60HZ
Driving System	DSP 64 Sub-Dvide high-precision step motor
Working Enviromental Temperature	0-35°C
Working Enviromental Humidity	5%-95% no coagulate water
Display	The LED Display with Chinese and Enlish
Packing Size	1120386330mm	1250386330mm	1500386330mm	1750386330mm
Gross Weight	26kg	29kg	33kg	36kg
Optional Software	Artcut/Flexi Sign(Optional)

Other details
Accessory				1 set blade, 1 set blade holder, 1set software.
delivery time				5days
payment terms				T/T, L/C, Western union
MOQ				currently no limit (1pcs)
after-sale service				technology support or give solution on line
Quality gurantee				12 month from delivery date
