Specifications
1. Alloy Steel straight roller2. double wire hydraulic pipe
3. 9 CrSi cutting blade
4. Thicken Protective cover
5. TUV, SGS

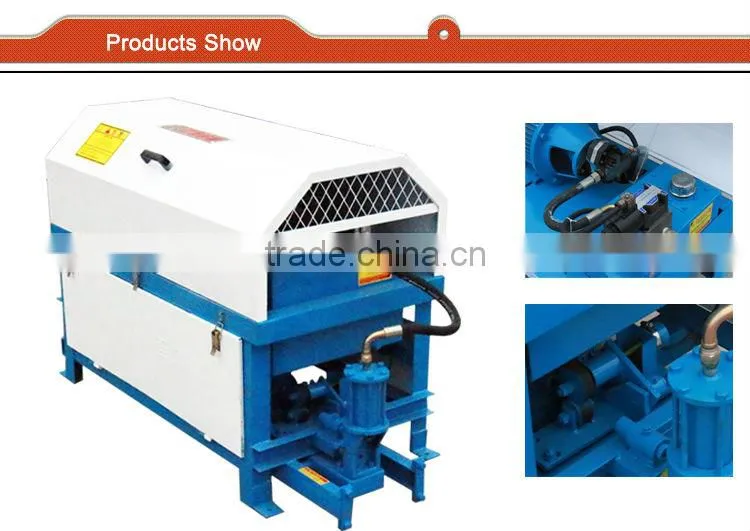

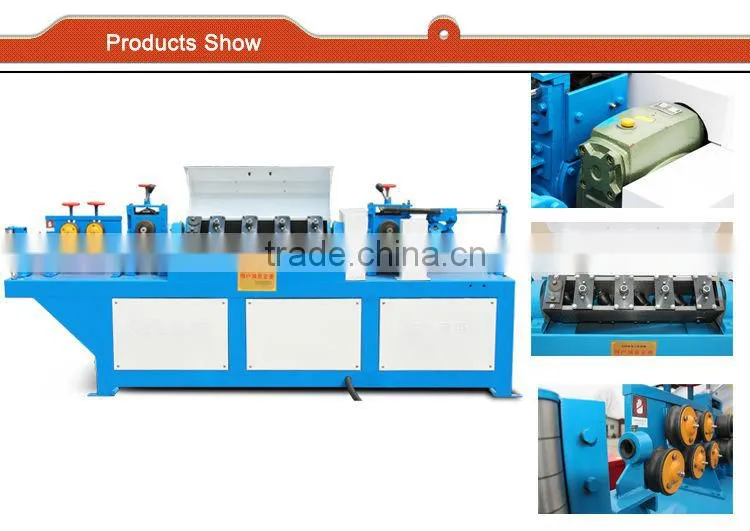

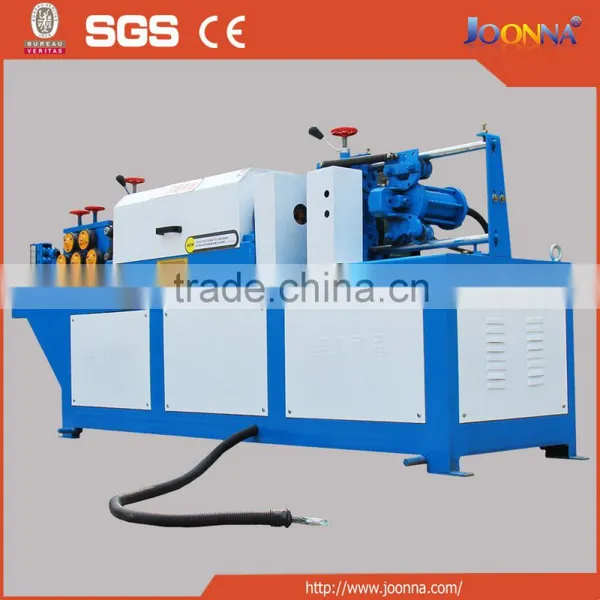

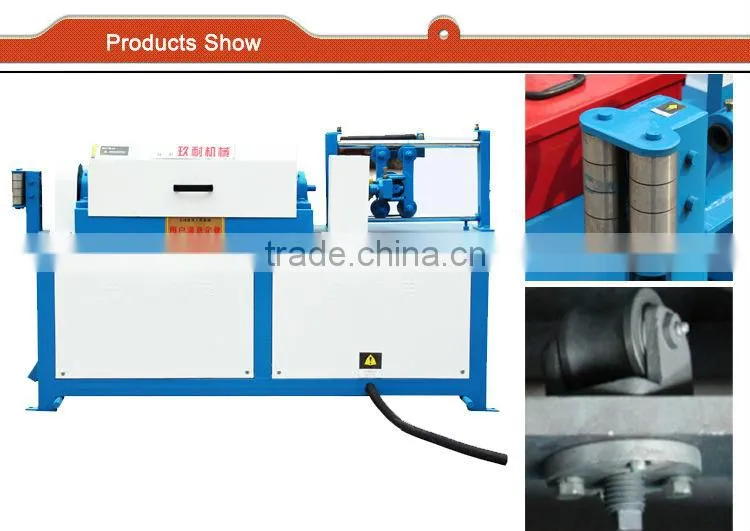

Fast delivery high speed 4-14mm wire straightening rollers
JN/GT4-14 fully automatic rebar straightening & cutting machine could realize BATCH OPERATION, the user could set 99 working batch in total, cutting length and quantity could be set for each batch, adopts high working efficiency and low cutting tolerance, it is the ideal rebar processing equipment. And straightening DICE or ROLLER are optional for the straightening system.
Model | JN/GT4-12A | JN/GT4-12B | JN/GT4-14A | JN/GT4-14B |
Working Speed | 35-50m/min | 30-45m/min | 55-60m/min | 55-60m/min |
Straightening accuracy | 2mm/m | 2mm/m | 2mm/m | 2mm/m |
Cutting length tolerance | ±10mm | ±10mm | ±10mm | ±10mm |
Straightening Steel Diameter Scope | Φ4-Φ12(plain steel) Φ4-Φ10(reinforced steel bar) | Φ4-Φ12(plain steel) Φ4-Φ10(reinforced steel bar) | Φ4-Φ14(plain steel) Φ4-Φ12(reinforced steel bar) | Φ4-Φ14(plain steel) Φ4-Φ12(reinforced steel bar) |
Power | 9kw | 9kw | 11kw | 11kw |
Cutting length limitation(mm) | 0.3m-99.99m | 0.3m-99.99m | 0.3m-99.99m | 0.3m-99.99m |
Voltage | 380v | 380v | 380v | 380v |
Weight | 500kg | 850kg | 1500kg | 1700kg |
