Specifications
1.40crmuc gear:10years2.quenched and tempered shell,never break
lid shell head,never break
4.Motor:Copper
5.blade:9crsi

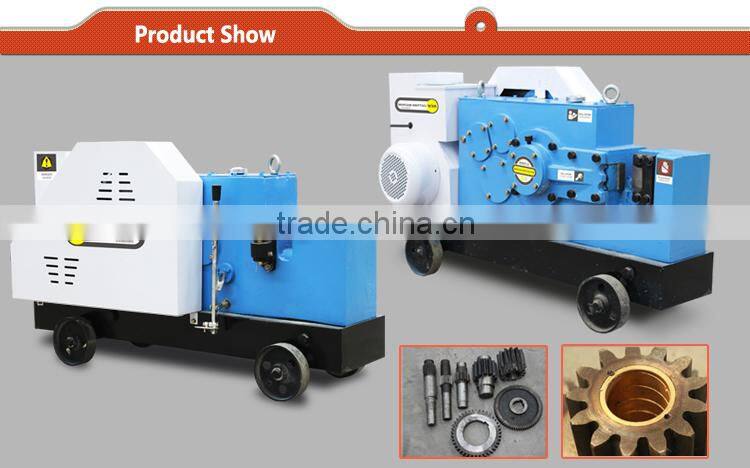

SGS and TUV Quality 3d metal cutting cnc machine

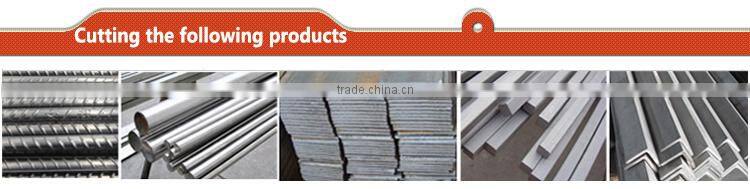

GQ45 Steel bar cutting machine mainly be used for cutting carbon steel reforce bar, hot rolled bar(HRB series rebar), screw bar, square bar, flat bar also could easy operation or move to fit the project rebar process workshop needs.
Details:
Technical Parameters:
Model | JN/GQ40 | JN/GQ45 | JN/GQ50 | JN/GQ55 |
Plain Bar | Φ6-Φ40 | Φ6-Φ45 | Φ6-Φ50 | Φ6-Φ50 |
II Class Reinforced Rebar | Φ6-Φ32 | Φ6-Φ32 | Φ6-Φ40 | Φ6-Φ40 |
Size of flat steel | <70*15 | <70*15 | <80*18 | <80*18 |
Size of square steel | <32*32 | <32*32 | <40*40 | <40*40 |
Size of angle steel | <50*50 | <50*50 | <63*63 | <63*63 |
Control style | With Clutch | With Clutch | With Clutch | With Clutch |
Frequency of cutting(times/min) | 32 | 32 | 28 | 28 |
Motor power(kw) | 3 | 3 | 4 | 4 |
Voltage & frequency(v/Hz) | 380/50 | 380/50 | 380/50 | 380/50 |
Dimension(mm) | 1190*450*680 | 1190*450*680 | 1500*500*950 | 1500*500*950 |
Net Weight(kg) | 430 | 430 | 640 | 640 |
Cutting Steel bar Pieces per cutting time:
Diameter of Steel Bar(mm) | 4-8 | 9-13 | 14-18 | 19-21 | 22-24 | 25-28 | 30-50 |
Cutting Pieces Per Time | 8 | 6 | 5 | 4 | 3 | 2 | 1 |
JOONNA Steel bar cutting machine advantage:
1.Fine steel reinforced body, through quenched and tempered treatment,internal stress are released,never broken,attrition efficiency of slideway become more than 10times.
2.The head of machine is solid and never break.
3.Bigger gear make transmission strength more higher, it’s made of 40CrMuC ,inert quenched and tempered treatment processing,service life can be up to 10 years, reduce maintenance costs.
4.9sicr cutter through quenching process,more durable
5.Knife with all sides bevel design, never fracture, it’s 4 times stronger than usual knife.
6.Adopt enclosed structure, good lubrication performance, one time for refueling (8 to 12 kg) can work continuously for 3 months
7.Equipped with high strength grade 8.8 side cover, bolts never loose, make the cut off more stable.
8.Heavier fly wheel and increasing connecting rod eccentricity make the cutting force more stronger, equipped with circular knife, cut more smooth.
9.Pure copper parts make the lifetime of axis and gear much longer
10.With fully enclosed safety hood, works more safe
11.Adopt high quality rigidity cutter holder to ensure the quality of the machine stably.
12.Protective cover is made of 3mm high-duty cold-roll steel sheets, operators’ safety is insured.
13. Equips Joonna special powerful motor
14.Precision mould make the bearing capacity up to 500kg.
15.Strictly test-run before delivery, effectively ensured quality of our cutting machine.
Rebar cutting machine will be packed by wooden case with Hob fixed to protect machine without rain and moist.
If you are interested in our products, please feel free to contact us. We are welcome you to visit our factory. If you want to know the exactly price, pls write the inquiry below, and click "send". We will reply in 8 hours.
