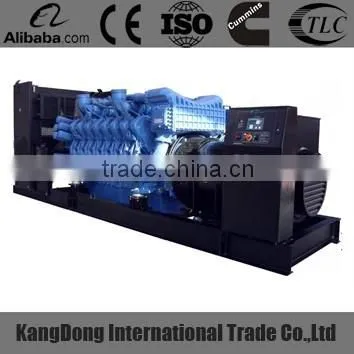

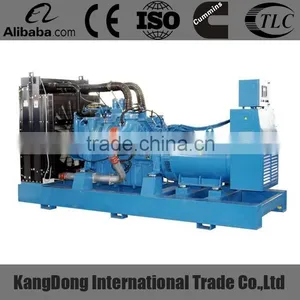

800kw china generator powered by MTU engine Specifications
Advantage:
1,water cooled
2,easy mataince
3,MTU engine
General Features:
-Engine MTU 16V2000G65
-Radiator 40º max, fans are driven by belt, with safety guard
-24V charge alternator
-Alternator single bearing alternator IP23, insulation class H/H
-Absorber
-Dry type air filter, fuel filter, oil filter
-Main line circuit breaker
-Permanent magnet generator (PMG)
-Standard control panel
-Two 12V batteries, rack and cable
-Ripple flex exhaust pipe, exhaust siphon, flange, muffler
-User manual
Related Technical Parameters
Technical data | ||
Genset Model |
KD-800GF |
|
Output Power |
Prime |
1000KVA × 0.8 = 800KW |
Standby |
1100KVA × 0.8 = 880KW |
|
Rated Voltage |
400/230V |
|
Frequency |
50Hz |
|
Power Factor |
0.8(lagging) |
|
Dimension |
Genset |
4750×2000×2380 |
With packing |
4850×2100×2530 |
|
Weight (kg) |
Genset |
9000 |
With packing |
9500 | |
Diesel Engine | ||
Brand |
MTU |
|
Model |
16V2000G65 |
|
Air intake system |
Turbo, air/air cooling |
|
Fuel system |
Electronic fuel injection system |
|
Cylinder arrangement |
16 in “V” |
|
Displacement |
31.84L |
|
Bore and Storke |
130*150(mm) |
|
Compression ratio |
16.0 |
|
Rated RPM |
1500rpm |
|
Max. standard power at rated RPM |
979KW(without fan) |
|
Governor type |
ADEC |
|
Alternator | ||
Brand |
MARATHON |
|
Model |
HMX-850-4 |
|
Excite Type |
Brushless ,Self-exciting, AVR automatic voltage regulating |
|
Connecting Type |
3 Phase and 4 Wires |
|
Steady Frequency Change |
0~5% |
|
No load voltage |
≥95%~105% |
|
Steady voltage |
≤±1% |
|
Insulation degree |
H degree |
|
Enclosure degree |
IP23 |
|
|
Control System The control panel is standard control panel with AMF, with the display of voltage,current, frequency, water temperature, oil pressure. And the protection functions of charge fail, fail to start, low oil pressure, high temperature, over speed and emergency stop. | ||
|
The Accessories Wave pipe , curved pipe , muffler , accumulator and the connecting lines , shock-absorbing spacer , and the operational and maintenance manual . | ||
|
Genset Options -Alternator brand(Marathon, Meccalte, Kaihua and so on) -Base fuel tank -Soundproof type -Mobile trailer -Other requirements | ||
Jiangsu Kangdong International Trade Co., Ltd is a professional leading Company of diesel gensets in China, We mainly supply:
Engine: Alternator: Control System:
Cummins (USA ) Original and OEM stamford Deep sea
Deutz Engine(Germany) Marathon Harson
Volvo Engine(Sweden), Engga Smartgen
Doosan Engine(Korea) , ComAp
Perkins(UK) MTU(Germany)
Weichai Engine(China),
Shanghai Engine (China),
Yuchai Engine (China)
Warranty
warranty is according to our standard conditions:12 months or 1,000 running hours, subject to the earlier one (artificial damage to be an exception).
Service
1. Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.
2. Service quality assurance:
Our sale staffs are all experience and professional,we can provide the most proper system design and optimized equipment for the customers.
3. After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent maintenance, We have
distributors all over World that support after sale service.
4. Spare parts supply:
We provide all kinds of spare parts and technical support.
5. Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.
A. Exporting plywood case for optional choose if needs packaging
B. Delivery Time Detail: within 10 days to 28 days (2 or 4 weeks)
1.Q:What's the power range of your generator sets?
A:The main products are ranging from 5KW to 2500KW.
2.Q:How many types of the generator sets do you have?
A:Diesel,gasoline,natural gas,marine,water pump,high-voltage generator sets,etc.
3.Q:Where is your factory located?
A: Our factory is in Taizhou city, Jiangsu Province, China.
It's near Shanghai & Ningbo port.
4.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
5.Q:How about quality control in your factory?
A:"Quality is the life".
We are always paying great attentions to
quality controlling from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE,CCC, ISO9001:2000.
