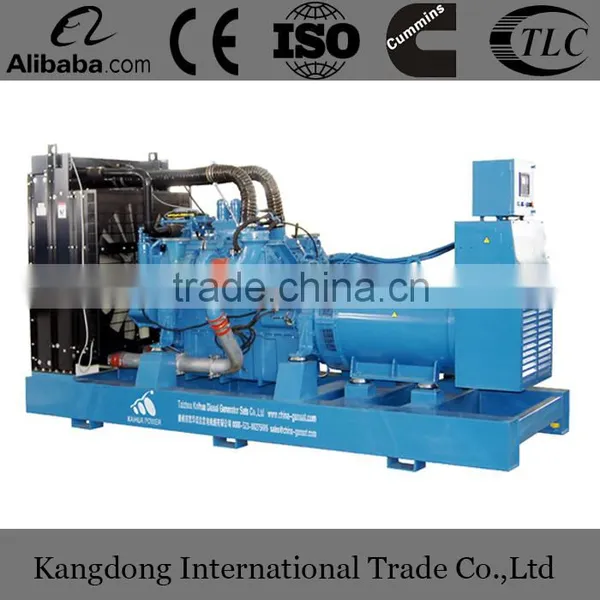

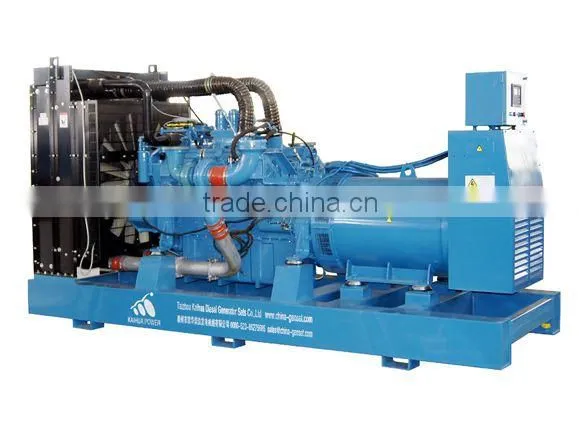

1000kva MTU Diesel Generator sets GERMANY IMPORTED 16V2000G65
the advantage of our genset:
1.high quality reliable and complete power unit.
pact design.
3.easy start and maintenance possibility.
4.our generating set is subject to a comprehensive test program which includes full load testing checking and provision of all contral and safety shut down functions testing.
Technical data | ||
Genset Model |
KD-800GF |
|
Output Power |
Prime |
1000KVA × 0.8 = 800KW |
Standby |
1100KVA × 0.8 = 880KW |
|
Rated Voltage |
400/230V |
|
Frequency |
50Hz |
|
Power Factor |
0.8(lagging) |
|
|
Dimension (L×W×H) (mm) |
Genset |
4500×2000×2300 |
With packing |
4600×2100×2400 |
|
Weight (kg) |
Genset |
7850 |
With packing |
8350 |
|
Diesel Engine | ||
Brand |
MTU |
|
Model |
16V2000G25 |
|
Engine Structure |
16-Cylinder ,60°Vee;4-Cycle |
|
Rotating Speed |
1500r/min |
|
Engine Cooling Method |
Radiator for ambient temp 40OC, belt driven cooling fan with cover |
|
Starting Method |
24V DC, with Silicon commutating charging motor |
|
Aspiration |
Turbo, Air/Air Cooling |
|
Fuel System |
Electronic Fuel Injection System |
|
Displacement(L) |
31.84 |
|
Compression Ratio |
16:1 |
|
Bore×Stroke(mm) |
130×150 |
|
100% load fuel consumption (g/kwh) |
200.9 |
|
Governor Type |
ADEC |
|
Alternator | ||
Brand |
According To The Customer’s,Such as STAMFORD,MARATHON… |
|
Excite Type |
Brushless ,Self-exciting, AVR automatic voltage regulating |
|
Connecting Type |
3 Phase and 4 Wires |
|
Steady Frequency Change |
0~5% |
|
No load voltage |
≥95%~105% |
|
Steady voltage |
≤±1% |
|
Insulation degree |
H degree |
|
Enclosure degree |
IP23 |
|
Altitude |
≤1000m |
|
|
Control System The control panel is standard control panel with AMF, with the display of voltage,current, frequency, water temperature, oil pressure. And the protection functions of charge fail, fail to start, low oil pressure, high temperature, over speed and emergency stop. | ||
|
The Accessories Wave pipe , curved pipe , muffler , accumulator and the connecting lines , shock-absorbing spacer , and the operational and maintenance manual . | ||
|

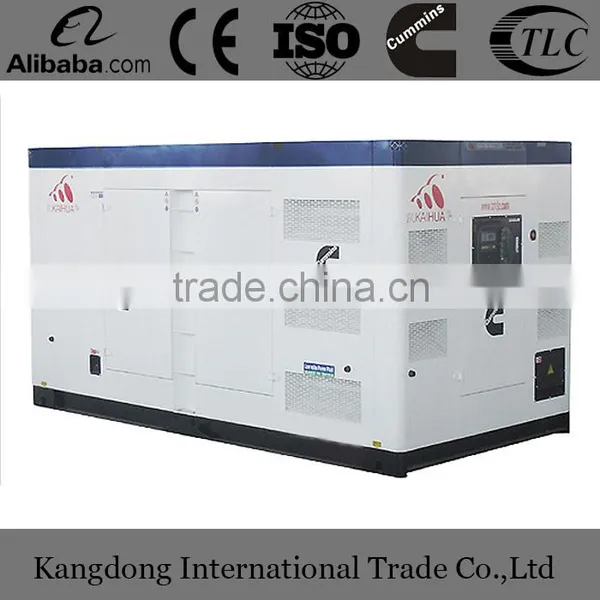

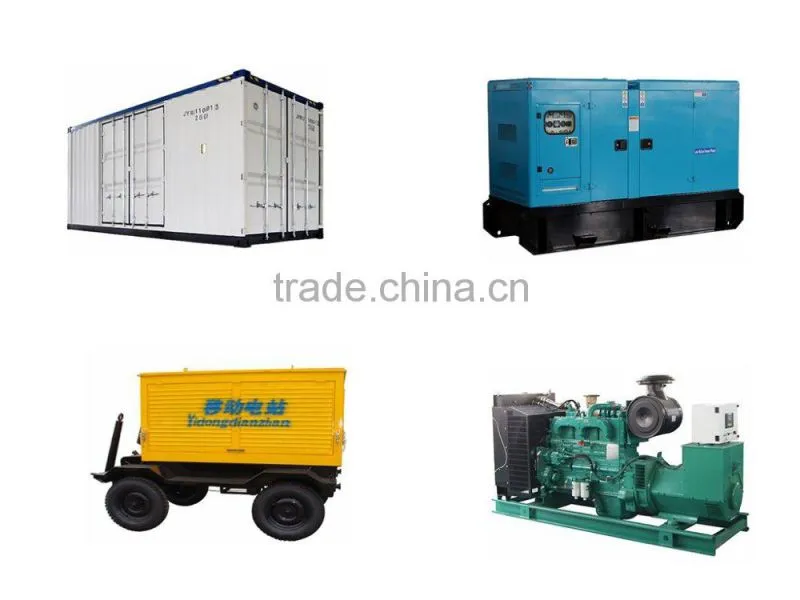

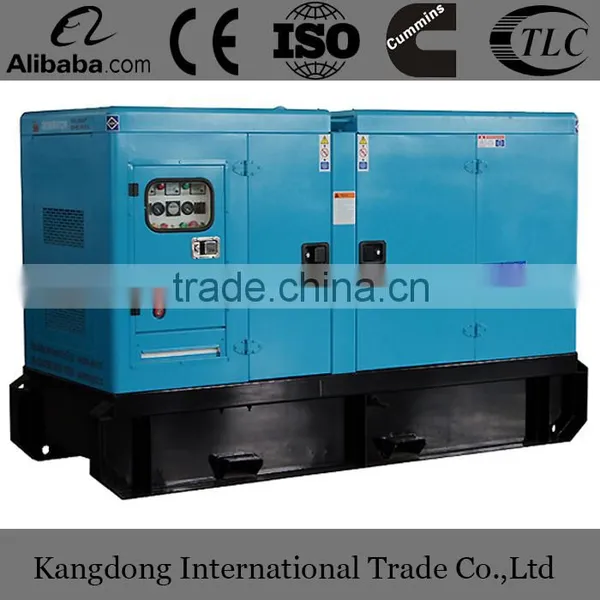

Genset Options -Base fuel tank -Soundproof type -Mobile trailer -Other requirements | ||
Warranty:
Jangsu KangDong have guarantee for one year or 1000 hours whichever reaches first from shipment date.
After-Sales Service:
During the guarantee period, easy-damage spare parts of alternator caused by the quality of our production or raw material will be provided for free .
Technical Support:
Generator operation manual is provided by Jangsu KangDong , moreover, we supply all kinds of spare parts for maintenance.
1.Q:Where is your factory located?
A: Our factory is located in No.21.Tai’an Road,HaiLing Industrial Park,Taizhou City,Jiangsu Province,China.
It's near Shanghai port. It's about 2hour from pudong airport by car
2.Q:How many types of the generator sets do you have?
A:Diesel,gasoline,natural gas,marine,water pump,high-voltage generator sets,etc.
3.Q:What's the power range of your generator sets?
A:The main products are ranging from 3KW to 3000KW.
4.What's the delivery time?
Delivery within 7 days after deposit confirmed.
5.Q:How about quality control in your factory?
A:We are always paying great attentions to quality controlling
from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE,CCC, ISO9001:2000
