Specifications
1, Coal Bed Methane gen-set2. Advanced Control Panel
3. ISO9001-2008,ISO14001-2008, CE
4. Service OEM Offered
Coal bed gas is a kind of burnable gas withour any color, taste and smell, it will explode if the concentration ranges at 5%-16%, and if oxygen larger than 12%, it will also explode when meets the naked light or temperature between 650 ℃ to 750 ℃ ,explosive power will be biggest if concertration is 9.5%, it was not explode if concertration larger than 16%, it was generated by coal or rotten plants and exist in two states: absorbing and dissociate, generation with coal bed gas do not only keep the mine safe but also remit the situation of lacking power .
methane coal bed gas generator set with CE and ISO approved| Model Number (Engine Type) | LHCBG400 |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 320KW/400Kva |
| Rated Speed | 1000/1200rpm |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤9.8mj/kw.h |
| Lubricant Consumption | ≤1.1g/kw.h |
| Engine Capacity | 74.6 L |
| Cylinder Number | 12-V |
| Cylinder Bore | 190mm |
| Stroke | 210mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Siemens |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1500 running hours which arrives first |
| Type | Open |
| Control system | ATS and AMF |
| Function | Automatic alarm system |
| Size | 6200x2100x2800mm |
| Weight | 12500kg |

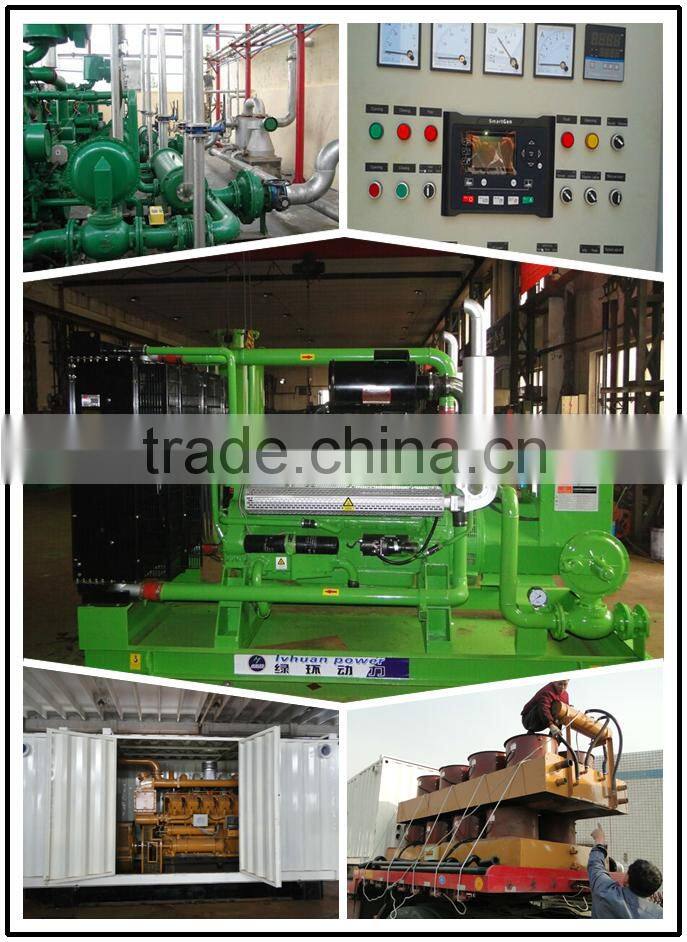

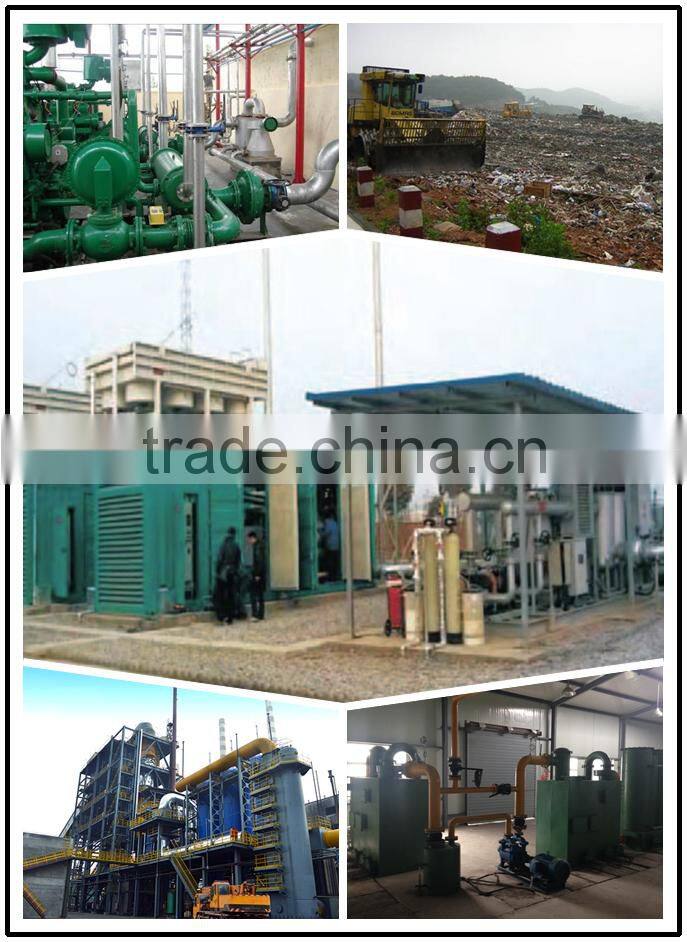

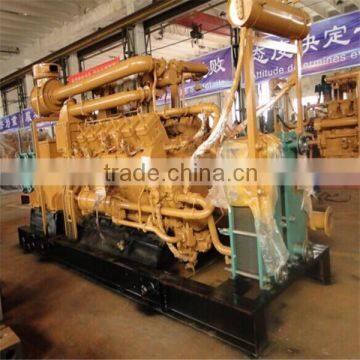

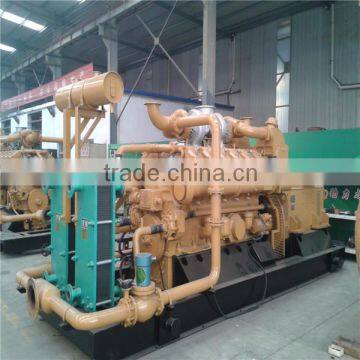

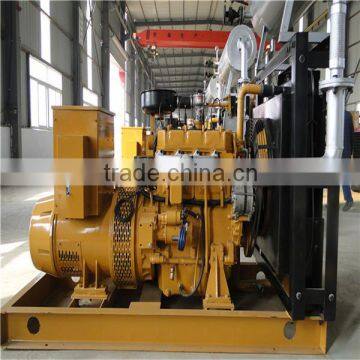

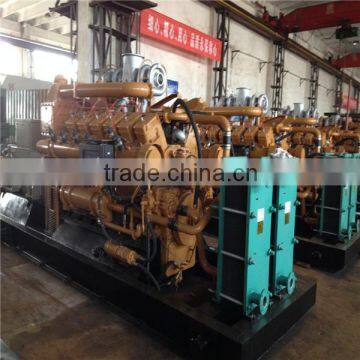

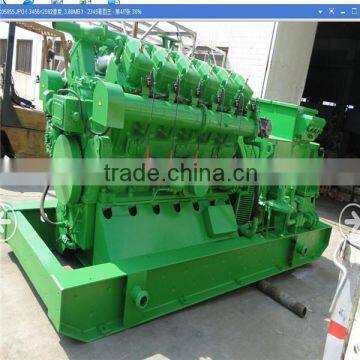

Pictures:
Our company overview:
Our company technology advantage:
1. Enalbing high-, medium-and low-voltage output, which lowers the initial investment and operation cost.
2. Continuous and stable rated can be put out with assurance of the great cylinder diameter.
3. Low-speed rotation lengthens the service life of the engine sets.
4. The unsupercharged sets with natural aspiration are suitable for a wide range of gas and have a low error rate.
5. The in-line structure simplifiers the layout of the engines and facilitates maintenance.
6. There are several defense lines to guarantee safe and efficient use of fuel gas.
7 . The surplus heat is recycled to realize the utility of cogeneration.
8 . The computerized monitoring management system enables online monitoring and automatic control.
Visitors form oversea:
pitures:
Our Services :
1.Pre-sale service:
A.Our engineers are available for onsite prospect before installation free to charge.
B. Foundation drawing and detailed Dimension free form us.
2.In-sale service:
A. Onsite overall guide installation,operation and maintenance training .
B. Assistance and instruction of trial running.
3.After-sale service:
A.Our every engineers are in charge of different area,we will response periodically and support you
technical service free of charge,
B.For the quality problem, we will service for you free of charge during the guarantee period.
C.One year guarantee period and lifetime service.
D.we solve quality problem in time when genset doesn’t work,We insure to help our clients to gain
4.Spare parts service:
A.All spares parts on our gensets supplied by us.
B. Free spare parts together with genset when shipping.
FAQ:
1.How to choose the right model?
A: It depends on continuous output power, Voltage, Frequency and fuel type. Please tell me what fuel (natural gas, biogas, biomass gas,wood syngas, methane,coal gas) or raw material(like wood, grass, nutshell and so on) The right model of generator will be recommend soon.
Me and our engineers are always available at your service.
2.What is the oil consumption and capacity per hour?
A: 1.0-1.63g of lubricant oil consumption per hour.
1.0 Cubic meter gas can produce 1.5-3.0kw/h power. The capacity depends on gas energy(Kcal). E.g 1.0 Cubic meter natural gas produce about 3.0-4.0kw/h
3.What is the overhaul?
A: About 30000 working hours. A week is enough to finish. We offer manual for weekly, monthly and overhaul maintenance.
4. What is the warranty?
A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts are not free. What's more, a set of spare parts will be shipped together with generator set free of charge.
5. How is the after sale service and maintenance?
A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
6. What products we offer?
Biomass gasifier,Biomass/syngas generator,biogas generator,Natural gas(CNG,LNG) / methane generator,Coal gas generator,Diesel generator.
Generators can parallel together to form large power, E.g. 5 sets 400kw biomass generator form 2000kw biomass generator system.
if you are interested in our products, please contact me!
